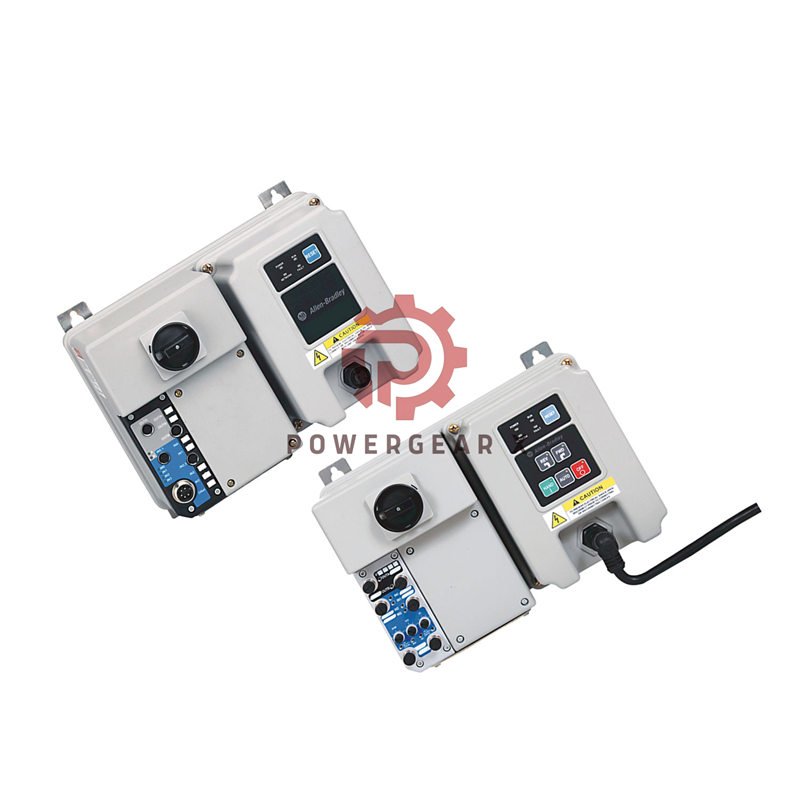

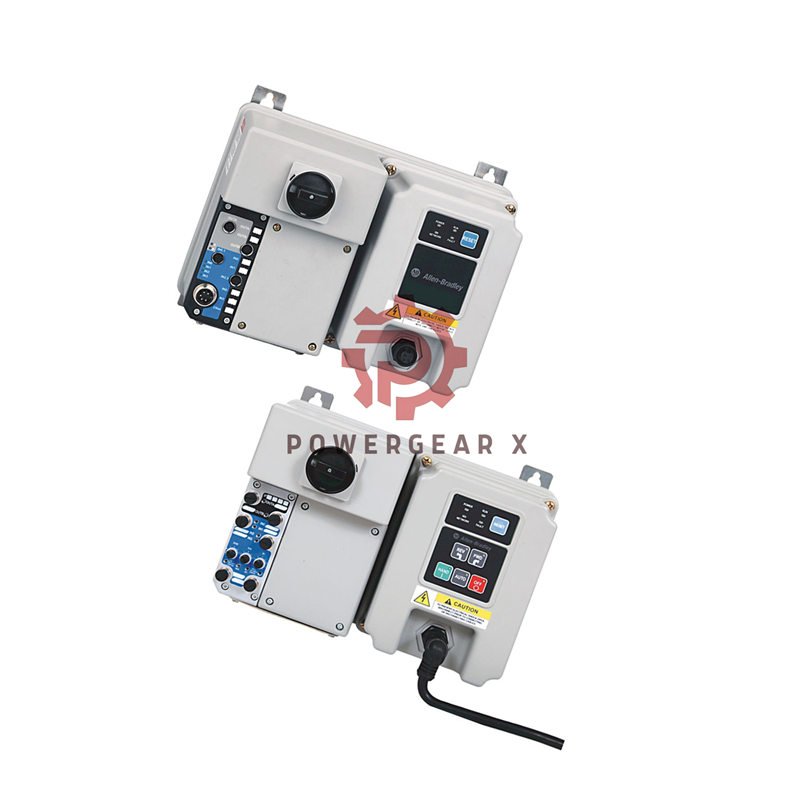

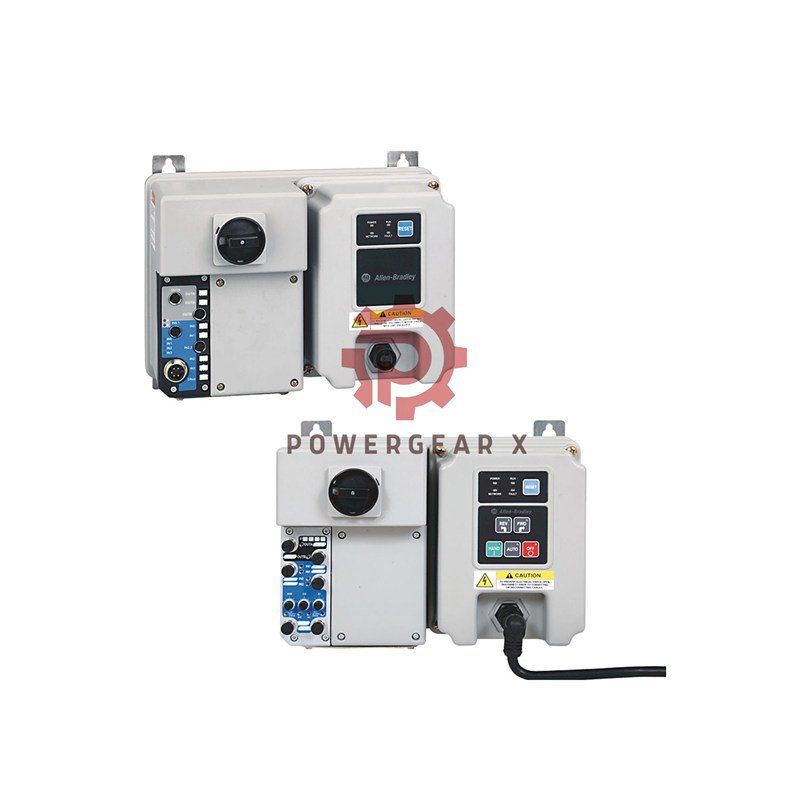

Allen-Bradley ArmorStart Distributed Motor Controller 280D-F23Z-25D-RRW-3 delivers a powerful on-machine starting solution for harsh industrial sites. Model 280D-F23Z-25D-RRW-3 integrates control, protection, diagnostics, and DeviceNet communication in a compact IP67 unit. The design supports fast wiring, smart logic, and reliable field installation.
Key Performance Highlights
- DeviceNet communication ensures stable control and peer data transfer.
- Full-voltage and reversing operation supports 0.5-10 Hp motors.
- IP67 / NEMA 4X enclosure resists dust, vibration, and washdown.
- LED indicators show power, run, fault, and network status.
- DeviceLogix enables local logic decisions without a PLC.
- Modular quick-disconnect wiring reduces installation time.
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model: 280D-F23Z-25D-RRW-3
- Power: 0.37…7.5 kW / 0.5…10 Hp
- Control Voltage: 24V DC
- Overload Range: 3.2…16 A
- Short Circuit Protection: 25 A motor protector
- Inputs: 4 configurable digital inputs
- Outputs: 2 relay NO outputs ≤2 A total
- Communication: DeviceNet + ZIP peer data
- Environment: IP67, NEMA Type 4/4X
- Install Temp: Industrial range – supports washdown
- Input Filter: Adjustable 0-64 ms
- Backplane Load: 400 mA for ArmorPoint expansion
Suffix Tree Structure Explanation
- 280 → ArmorStart Full Voltage Starter
- D → DeviceNet Communication
- F → IP67 / Type 4 enclosure
- 23Z → 24V DC control coil
- 25 → 25 A short circuit device
- D → 3.2…16 A overload setup
- RRW → Round media power interface, no cable
- 3 → Hand-Off-Auto keypad
Fault Monitoring Capabilities
- Short circuit, overload and overtemperature detection
- Phase loss and imbalance protection
- Control and DeviceNet power loss indication
- Fuse monitoring on power and outputs
- EEPROM and hardware integrity detection
Installation Guide
- Mount unit directly on machine frame or motor panel.
- Use quick-disconnect 3-phase, motor, and I/O connectors.
- Connect DeviceNet trunk and set node number.
- Verify LED status before startup.
- Configure logic using RSNetWorx DeviceLogix editor.
Package Contents
- One 280D-F23Z-25D-RRW-3 controller
- 3-meter four-core unshielded motor cable
- HOA keypad installed
- Printed installation guide
Shipping Information
- Worldwide delivery by FedEx, UPS or DHL
- Shock-protected multilayer carton
- Standard export packing, moisture sealed
FAQ
- How do I reset a trip fault?
- Press the front reset key or send a DeviceNet reset command.
- Do I need a shielded motor cable?
- The included 3-meter cable works in most cases. Use shielded in high EMI areas.
- Can I expand I/O?
- Yes, connect ArmorPoint modules through the backplane port.
- Does this unit support Ethernet?
- EtherNet/IP is available when linked through ArmorPoint gateways.
- How do I load a new logic function?
- Upload DeviceLogix through RSNetWorx and download to internal memory.
