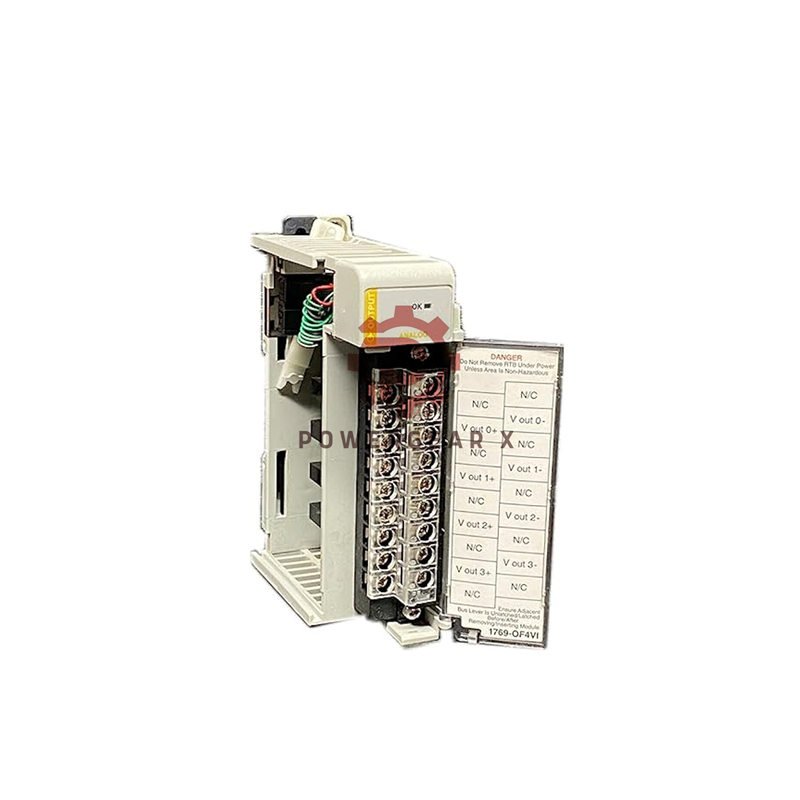

Allen-Bradley 1769-OF4VI: 4-Channel Isolated Voltage Output Module
The Allen-Bradley 1769-OF4VI provides four isolated voltage output channels for precise control applications. This CompactLogix module delivers accurate analog signals to various field devices. It ensures reliable performance in industrial automation systems.
Technical Specifications
- Brand & Model: Allen-Bradley 1769-OF4VI
- Output Channels: 4 isolated voltage outputs
- Voltage Range: 0-10V DC (0-10.5V DC full scale)
- Resolution: 15-bit (330 μV/bit)
- Accuracy: ±0.5% typical, ±0.8% maximum
- Response Time: 120ms maximum conversion rate
- Load Capacity: ≤2 kΩ resistive load
- Output Current: 5mA maximum per channel
- Short-circuit Current: 42mA maximum
- Power Consumption: 165mA @ 5V DC, 2.0W dissipation
- Isolation: Channel-to-channel and channel-to-bus
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Wire Size: 14-22 AWG solid, 16-22 AWG stranded
Package Contents
- 1769-OF4VI Analog Output Module
- Removable terminal block
- Installation documentation
- 12-month warranty
- Shipped via FedEx, UPS, or DHL
Frequently Asked Questions
- What voltage ranges are supported?
0-10V DC output range with 0-10.5V DC full scale - Is channel isolation provided?
Yes, all four channels are individually isolated - What is the resolution of this module?
15-bit resolution (330 microvolts per bit) - Does it require field calibration?
No, factory calibrated and no field calibration needed - What protection features are included?
Short-circuit protection and overload protection
