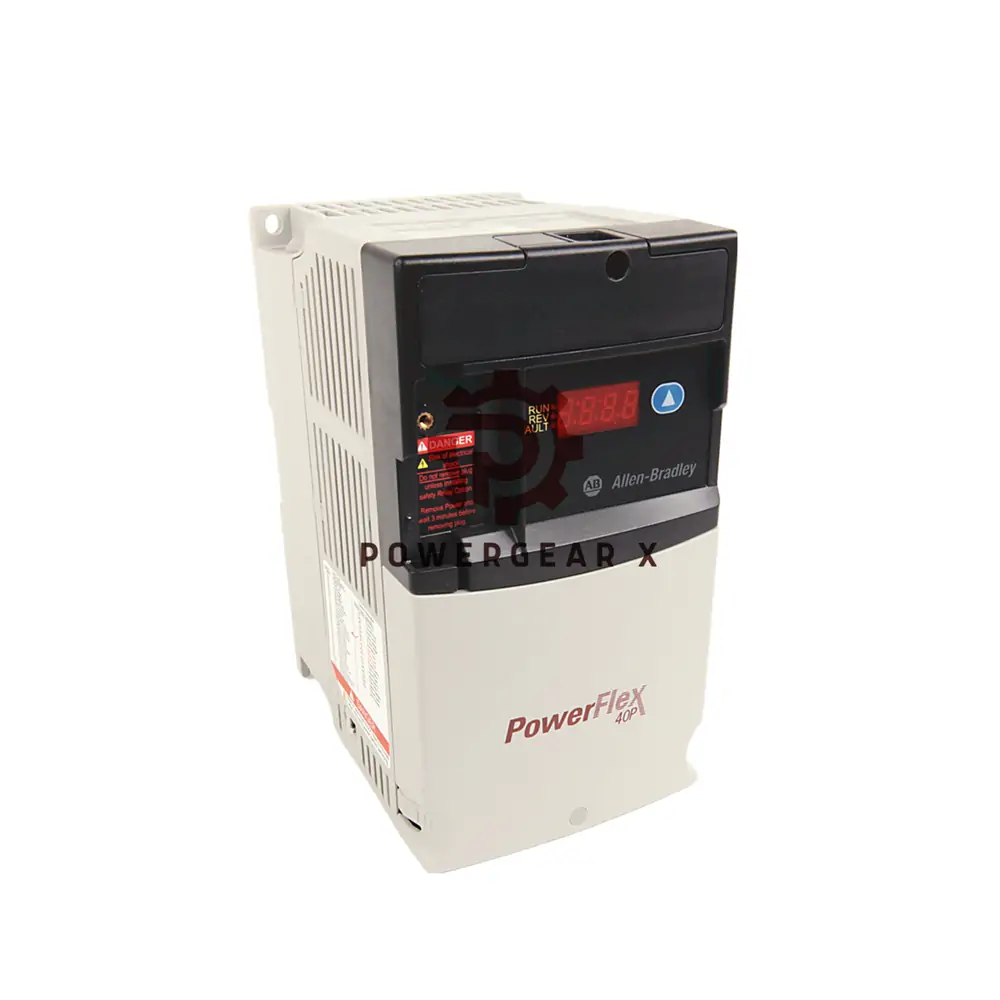

Allen-Bradley 22D-E6P6N104 Drive: Advanced 5HP Motor Control
Experience precision automation with the 22D-E6P6N104 PowerFlex drive. This panel-mounted 5HP solution delivers superior performance for industrial applications. Features zero stacking technology and sensorless vector control.
Key Specifications
Brand: Allen-Bradley
Model: 22D-E6P6N104
Power: 5HP (4kW) | 6.6A output
Voltage: 600V AC 3-phase (414-660V range)
Mounting: Panel (IP20)
Frame: Compact Size B
Efficiency: 97.5% power conversion
Temp Range: -10°C to +40°C
Premium Features
- Zero Stacking™ space-saving design
- Programmable 2-16KHz carrier range
- 120:1 speed range with vector control
- 6000V transient protection
- RS-485 communication ports
Compare Similar Models
- 22D-E3P0N104 – 3HP model with basic features
- 22D-E4P2F104 – 4HP alternative with flange mount
Technical Advantages
- ±0.05% speed regulation accuracy
- 100ms power loss ride-through
- 200% hardware overcurrent protection
- Class 10 motor overload protection
- 7 digital + 2 analog inputs
Protection Systems
- 100,000A short-circuit rating
- Phase-to-ground MOV protection
- Heat sink thermistor monitoring
- 1005V DC overvoltage trip
- 390V DC undervoltage protection
Warranty & Global Service
Coverage: 12-month full warranty
Shipping: FedEx, UPS, DHL express
Dispatch: Ships in 24 hours
Support: Worldwide technical assistance
Expert Questions Answered
Q: What programming options are available?
A: HIM option, LCD buttons, or RS-485 PC connection
Q: How precise is the speed control?
A: ±0.05% regulation with encoder feedback
Q: What’s the power loss tolerance?
A: 100ms ride-through capability
Q: Can it handle voltage fluctuations?
A: Yes, works from 414V to 660V AC
Q: What communication ports are included?
A: Standard RS-485 for network connectivity
