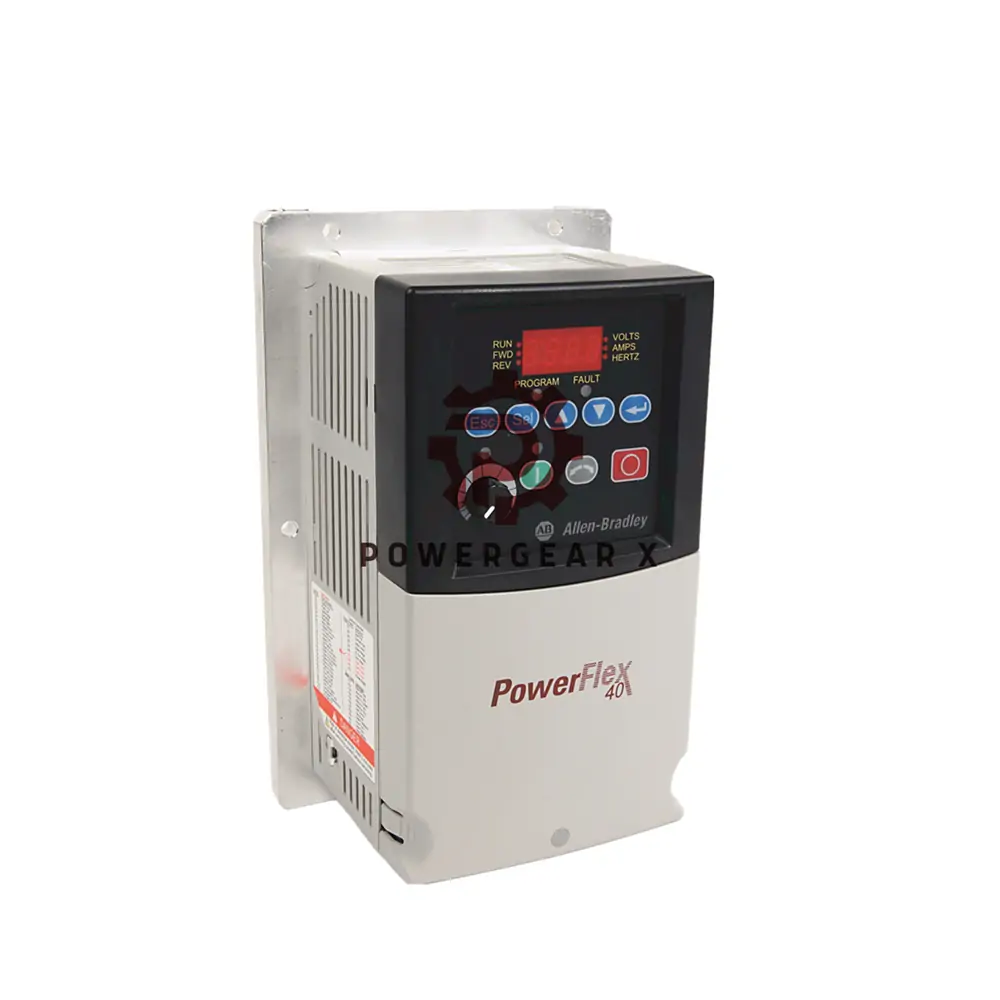

Allen-Bradley 22D-D2P3F104: Smart Motor Control Made Simple
Power in a Small Package
Control motors easily with the 22D-D2P3F104. This 1 HP drive fits tight spaces and saves energy. Perfect for pumps, fans, and conveyors.
Key Specs
Brand: Allen-Bradley
Model: 22D-D2P3F104
Power Details:
– Input: 480V AC 3-phase
– Output: 1 HP (0.75 kW), 2.3A
– Frequency: 50-60 Hz → 0-500 Hz adjustable
Physical:
– Frame Size: B (Compact)
– Mount: Flange
– Weather Proof: IP20
Smart Functions:
– 4 programmable speed presets
– Auto-restart after power loss
– Motor heat protection
Easy Setup
- ⚡ Mounts in 15 minutes
- ⚡ Pre-set apps: Pumps, fans, conveyors
- ⚡ Clear error codes on display
Works With
All 3-phase AC motors. Connects to:
– Ethernet/IP
– PROFIBUS
– DeviceNet (add-on card)
In the Box
- Drive unit
- Quick-start guide
- 12-month warranty
Fast Global Shipping
We ship worldwide via:
– FedEx • UPS • DHL
Delivery in 3-5 business days
Expert Answers
Q: Can I control it from my phone?
A: Yes! Add the DSI Wireless Module.
Q: Works with 240V systems?
A: No – 480V only.
Q: Operating temperature range?
A: -10°C to 50°C (14°F to 122°F).
Q: CE certified?
A: Yes – no extra filter needed.
Q: Reverse motor direction?
A: Yes – one-button setting.
