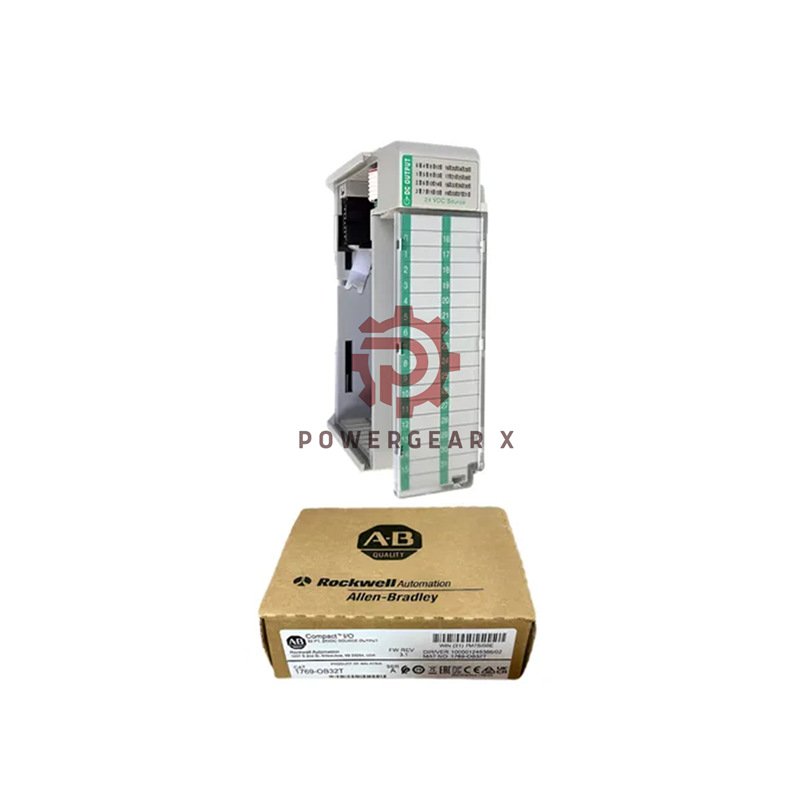

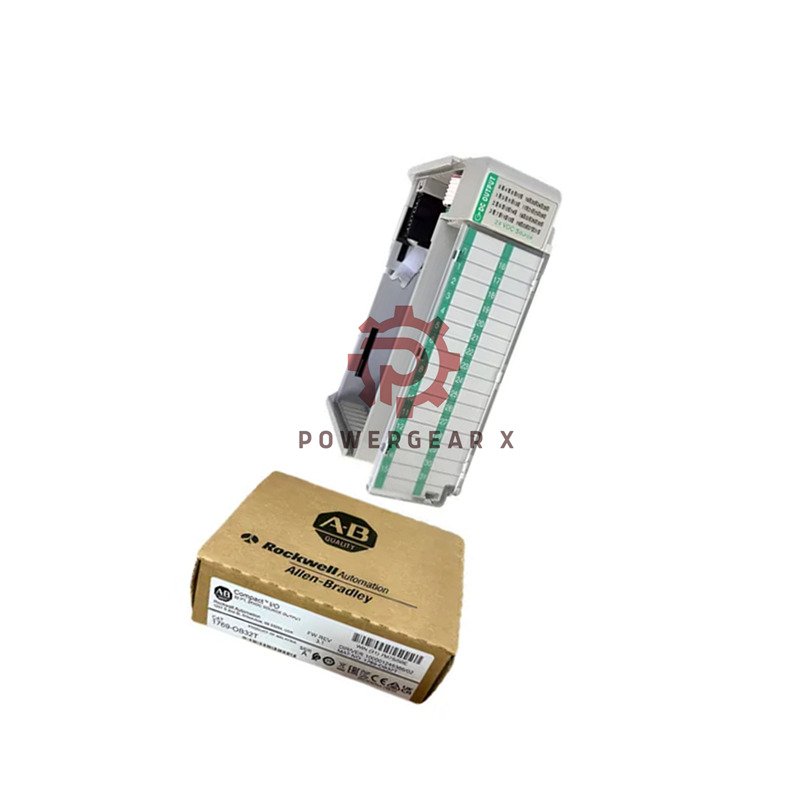

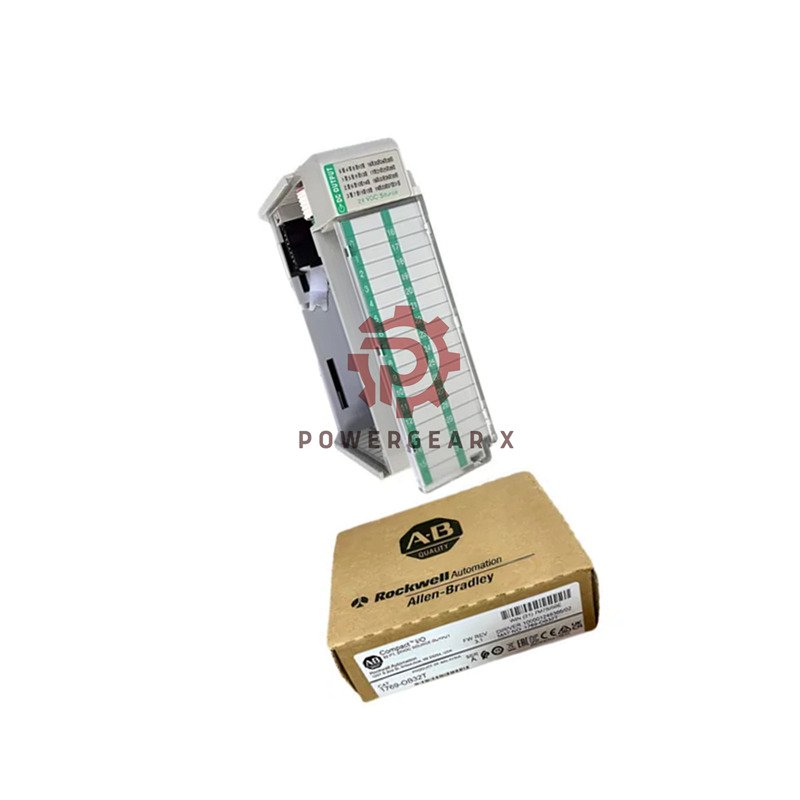

Allen-Bradley 1769-OB32T: 32-Channel DC Output Module
The Allen-Bradley 1769-OB32T provides thirty-two sourcing output channels for industrial control. This high-density module works with CompactLogix and MicroLogix systems. It offers reliable performance for various automation applications.
Technical Specifications
- Brand & Model: Allen-Bradley 1769-OB32T
- Output Channels: 32 sourcing outputs
- Voltage Range: 10.2-26.4V DC (24V DC nominal)
- Current Rating: 0.5A per point, 4A module total
- Surge Current: 2.0A for 10ms (repeatable every 2s)
- Response Time: 0.5ms ON, 4ms OFF
- Backplane Current: 220mA @ 5V DC
- Power Dissipation: 4.67W maximum
- Isolation: 1500V AC continuous
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Wire Size: 14-22 AWG solid, 16-22 AWG stranded
- Weight: 230g (0.51lbs)
Package Contents
- 1769-OB32T Output Module
- Removable terminal block
- Installation documentation
- 12-month warranty
- Shipped via FedEx, UPS, or DHL
Frequently Asked Questions
- What controllers support this module?
Works with CompactLogix and MicroLogix 1500 systems - What is the maximum current per point?
0.5A continuous current per output point - Can it handle surge currents?
Yes, 2.0A for 10ms every 2 seconds - What wiring is recommended?
14-22 AWG solid or 16-22 AWG stranded copper - Is diagnostic feedback available?
Yes, includes output status indicators
