Allen-Bradley | 22F-V4P5N103 | PowerFlex4M AC Drive

Overview & Specifications

Brand: Allen-Bradley
Manufacturer: Rockwell Automation
Product Line: PowerFlex 4M
Model Number: 22F-V4P5N103

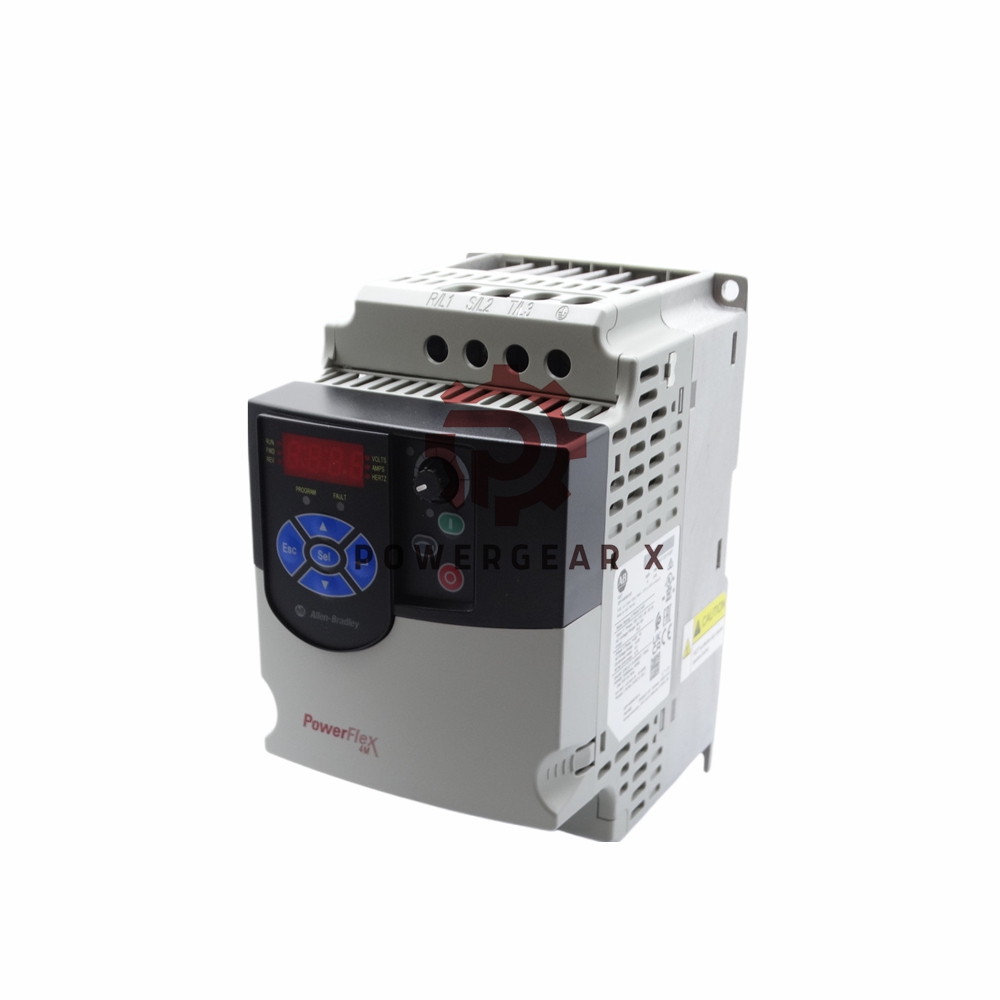

The Allen-Bradley 22F-V4P5N103 is a PowerFlex 4M series drive designed for controlling AC motors with high efficiency. It features a 1-phase input voltage range of 100-120VAC (+/-10%) and a 3-phase output voltage range of 0-230VAC, making it ideal for small motor control applications. Its output current is 4.5 Amps, and it can handle 0.75 kW or 1 HP.

Key Features:

• Enclosure Type: Open – IP20 for protection against solid objects larger than 12mm
• Display: LED display with a fixed digital keypad for easy control and setup
• Amperage: 4.5 Amps for high performance
• Horsepower: 1 HP (horsepower), suitable for small motors
• Input Power: 120VAC (1-phase)
• Output Power: 0.75 kW, perfect for applications needing low to medium power

Technical Specifications:

• Input Voltage: 120VAC (1-Phase), 100-120V (+/-10%)
• Output Voltage: 0-230VAC (3-Phase)
• Input Current: 18 Amps
• Output Current: 4.5 Amps
• Horsepower: 1 HP
• Wattage: 0.75 kW
• Enclosure: Open (IP20)
• Display/Keypad: LED display with a fixed digital keypad
• Filter: Without CE compliant filter

Frequently Asked Questions (FAQ):

1. What is the input power requirement for the 22F-V4P5N103?
   • It requires 120VAC input at 1-phase.
2. What types of motors can this drive control?
   • The PowerFlex 4M can control 3-phase AC motors at low horsepower ratings (1 HP).
3. What is the output voltage of this drive?
   • The output voltage ranges from 0 to 230 VAC (3-phase).
4. Is this drive CE compliant?
   • No, it does not come with a CE compliant filter.
5. What is the maximum current output?
   • The maximum output current is 4.5 Amps.

Check official datasheet for more detailed information: PowerFlex 4M Adjustable Frequency AC Drive
