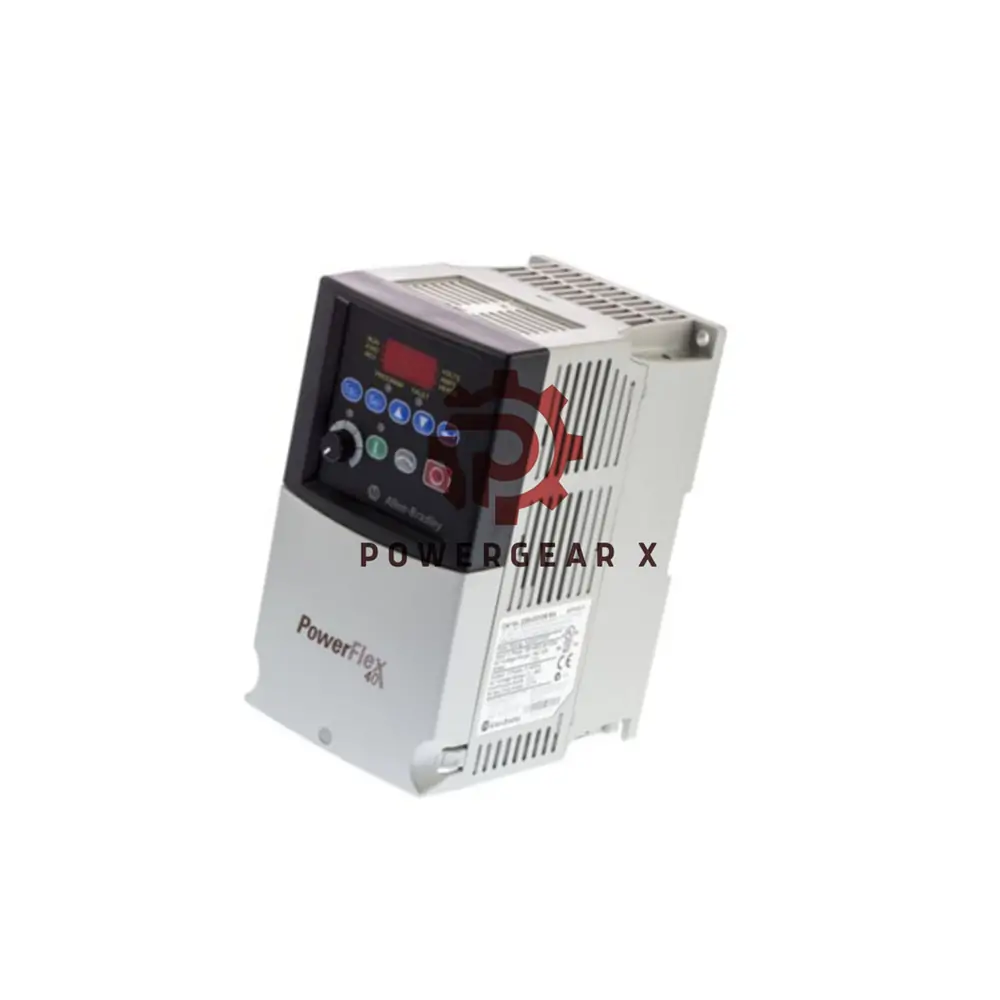

High-Performance Motor Control: Allen-Bradley PowerFlex 40P Drive (22D-E9P9N104)
The Allen-Bradley 22D-E9P9N104 delivers 7.5HP power in a space-saving design. Perfect for demanding industrial applications.
Technical Specifications
- Model: 22D-E9P9N104
- Power: 7.5 HP (5.5 kW)
- Voltage: 600V AC 3-phase
- Current: 9.9A
- Frequency: 48-63Hz (±10%)
- Frame: C (Panel Mount)
- Enclosure: IP20 (NEMA Open)
- Temp Range: -10°C to 40°C
- Cooling: Vertical clearance required
Key Features
- Space Saver: Compact panel-mount design
- Power Ready: Handles 600V AC input
- Industrial Tough: Withstands harsh environments
- Easy Control: Built-in reset display
- Cost Effective: Energy-efficient operation
Support & Shipping
- Warranty: 12 months
- Delivery: FedEx/UPS/DHL worldwide
- Package: Drive unit, documentation
Comparison to Similar Models
- 22D-D024N104 – Lower 2.4A current rating
- 22D-D1P4F104 – Smaller 0.5HP capacity
Expert FAQs
Q: Minimum vertical spacing needed?
A: 50mm clearance recommended between units.
Q: Suitable for outdoor use?
A: No – IP20 rating requires indoor installation.
Q: Maximum cable length?
A: 20m max from drive to motor.
Q: Built-in safety features?
A: Yes – includes overload protection.
Q: Compatible with single-phase?
A: No – requires 3-phase power input.
