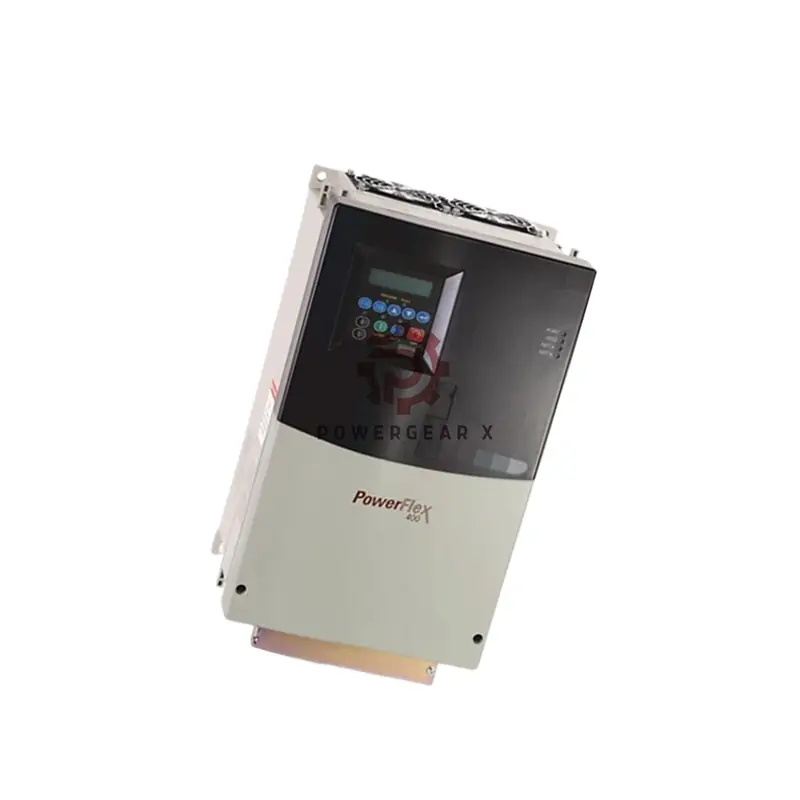

Allen-Bradley 22C-D017H103 Drive | PowerFlex 400 10HP VFD

Allen-Bradley 22C-D017H103 Drive | 10HP Pump & Fan Control Specialist

Precision Technical Specs

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 22C-D017H103 | Series: PowerFlex 400
• Frequency Range: 0-320 Hz adjustable
• Carrier Frequency: 2-10 kHz programmable
• Temperature Range: -10°C to 50°C (14°F to 122°F)
• Overload Capacity: 110% for 60 seconds
• Cable Size: 1.3-8.4 mm² (16-8 AWG)
• Display: 2-line 16-character LCD

Smart Control Features

• 5 different stop modes for safety
• Class 10 motor overload protection
• Sinusoidal PWM control technology
• 24V DC control logic power
• Source/sink DIP switch configuration

Easy Installation Options

• Choose panel or flange mounting
• IP20 enclosure protects components
• Simple DIN rail compatible
• No brake required for standard use

Warranty & Global Shipping

• 12-month warranty
• Fast delivery: FedEx, UPS, DHL
• Ships worldwide in 3-5 business days

Expert FAQs

• Q: What protocols does it support?
  A: Modbus, DSI, P1-FLN + optional Ethernet/PROFIBUS
• Q: Can I use single-phase power?
  A: Yes, but output drops to 35% of rated current
• Q: Is the display included?
  A: Yes, built-in 2-line LCD keypad
• Q: What’s the RS-485 interface for?
  A: Host PC programming and network communication
• Q: Does it include cooling?
  A: No heat sink – maintain below 50°C
