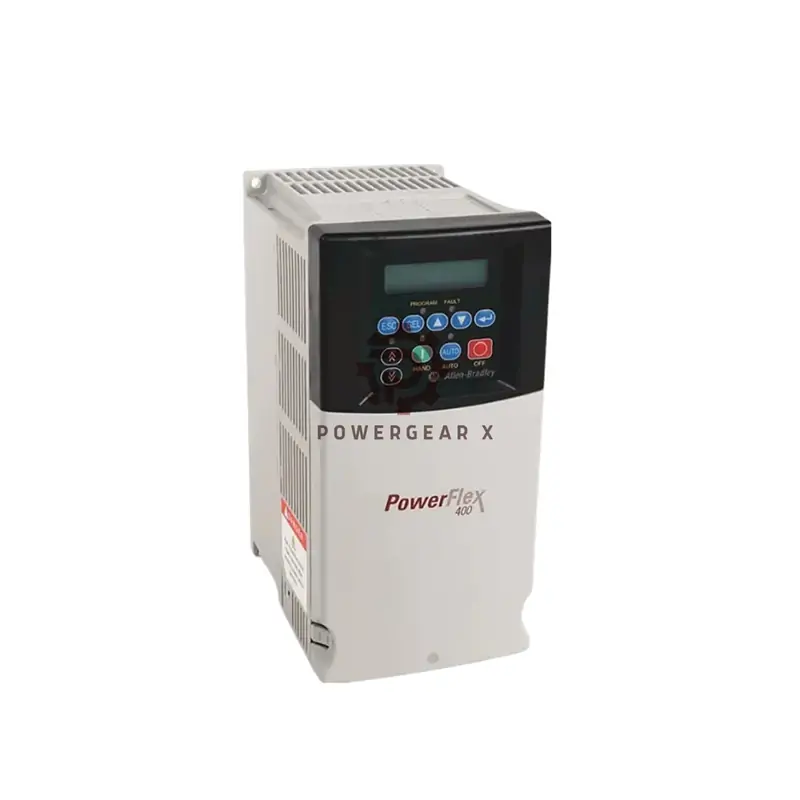

Allen-Bradley 22C-D012H103: Compact 7.5HP Motor Drive
Download manual: Get Installation Guide
Core Specifications
- Model: 22C-D012H103
- Input: 480V AC, 3-phase
- Output: 12A, 0-480V AC
- Power: 7.5HP (5.5kW)
- Frequency: 50-60 Hz
- PF: 0.98
Advanced Features
- Built-in PID control
- RS485 noise-resistant comms
- 7 programmable I/O points
- Auto motor wear balancing
Technical Details
- Control Method: V/Hz or PWM
- Response Time: <15ms
- Accuracy: ±0.5%
- Temp Range: -10°C to 50°C
- Humidity: 5-95% non-condensing
- Enclosure: IP30/NEMA Type 1
- Certifications: CE, UL, cUL
Shipping & Warranty
- 12-month warranty
- Global delivery: FedEx/UPS/DHL
- Delivery time: 2-4 business days
- Package: Drive + mounting hardware
Professional FAQ
- Q: What’s the RS485 range?
A: Up to 1200m (4000 ft) without repeater - Q: Can it handle voltage spikes?
A: Yes, transient voltage protection included - Q: Is PID control programmable?
A: Yes, fully configurable parameters - Q: What maintenance is required?
A> Dust cleaning every 6 months - Q: Altitude limitations?
A: Full power up to 2000m (6500 ft)
Special Offer: Free shipping on all 22C-D012H103 orders + expert support
