Allen-Bradley 22C-B090A103 Drive | 30HP PowerFlex 400

Allen-Bradley 22C-B090A103 Drive: Advanced 30HP Fan & Pump Controller with Smart PID Technology

Powerful Motor Control Made Simple

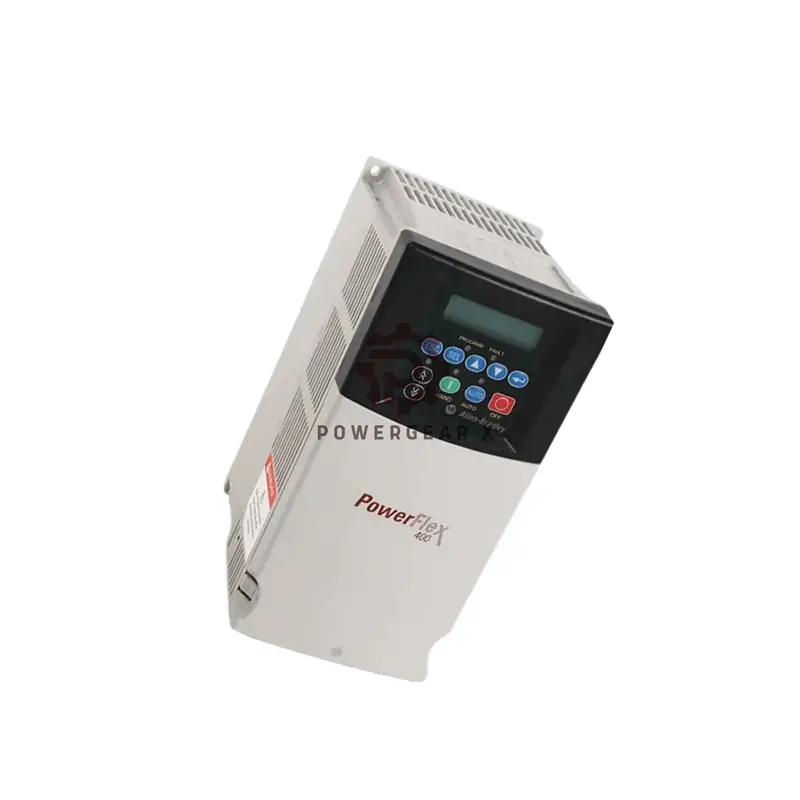

The Allen-Bradley 22C-B090A103 PowerFlex 400 drive delivers precise speed control for industrial fans and pumps. This 30HP unit features auto-tuning technology and robust protection systems for reliable operation.

Technical Specifications

• Model: 22C-B090A103
• Brand: Allen-Bradley
• Series: PowerFlex 400
• HP Rating: 30 Horsepower
• Input: 200-240V AC, 3-Phase
• Output: 0-230V AC, 90 Amps
• Frequency Range: 0-320Hz programmable
• Carrier Frequency: 2-10kHz adjustable
• Temp Range: -10°C to 45°C (14°F to 113°F)
• Response Time: 100ms power recovery
• Accuracy: ±0.05% frequency control
• Protection: Class 10 motor overload

Installation & Protection

• NEMA Type 1/IP30 enclosure rating
• Phase-to-phase voltage protection
• Built-in MOV surge suppression
• Branch circuit fusing included
• Compact size: 9.8″ x 15.1″ x 8.1″

Smart Operation

• Auto-tuning motor calibration
• Dual programmable acceleration profiles
• Real-time fault diagnostics
• Remote monitoring capability
• Easy PC connectivity via RS485

Certifications & Support

• CE and cUL-us certified
• 12-month full warranty
• Global shipping: FedEx, UPS, DHL
• Operating humidity: 5-95% non-condensing

Expert Questions Answered

• What surge protection does it have?
• Built-in MOV and 300% over-current limit
• Can it handle voltage drops?
• Yes, operates through 100ms power losses
• What programming options exist?
• 2-10kHz carrier frequency adjustment
• Is motor protection included?
• Class 10 electronic overload protection
• What efficiency can I expect?
• 97.5% operational efficiency rating
