Allen-Bradley | 22B-E9P9F104 New PowerFlex 40 AC Drive

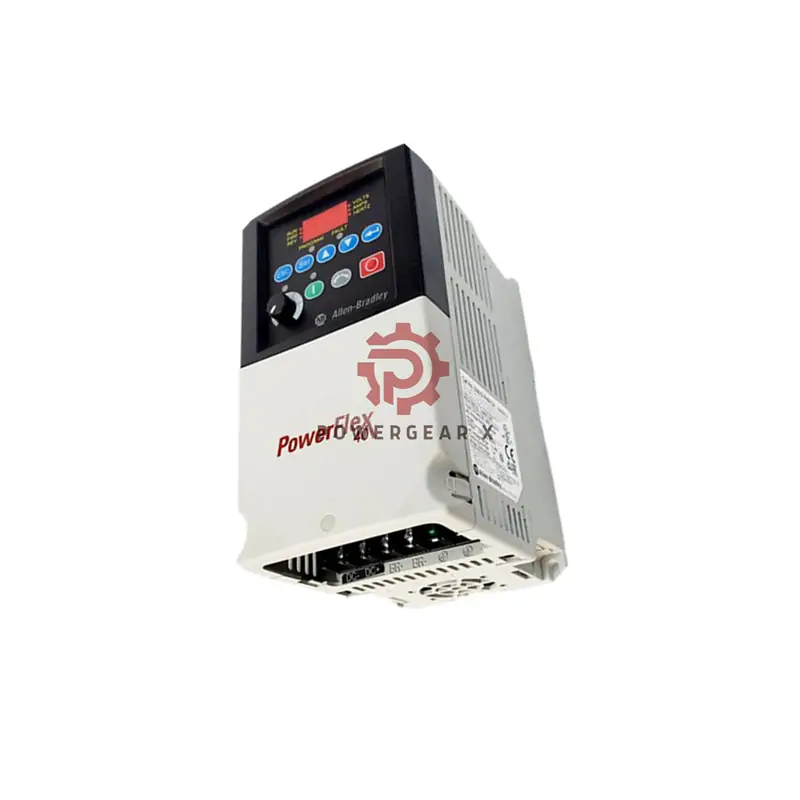

Allen-Bradley 22B-E9P9F104 PowerFlex 40 Drive

Control industrial machines easily with this flexible drive. Get full details in the manual:

• Download PowerFlex 40P Manual (PDF)

Drive Overview

The 22B-E9P9F104 fits tight spaces. Works in dusty/wet areas. Simple setup saves time. Controls motors smoothly.

Technical Specifications

• Brand & Model: Allen-Bradley 22B-E9P9F104
• Power & Current: 7.5 HP | 9.9 Amps
• Voltage Input: 600V AC (3-phase)
• Frequency Range: 50-60 Hz
• Frame Size: Compact C-Frame
• Enclosure Flexibility: IP20 (min) to IP65 (max)
• Temperature Range:
  • Operation: -10°C to 40°C
  • Storage: -40°C to 85°C
• Physical: 325×300×105.8mm | 11.93kg
• Display: HD LCD + Keypad Control
• Standards: EN 50081-2 & EN 50082-2 (EMC)

Setup & Care

• Mount in IP20+ enclosures
• Avoid direct sunlight exposure
• Keypad adjusts settings in 2 minutes
• Self-diagnosis prevents errors

Package & Support

• Drive unit + Mounting kit
• Quick-start guide
• 12-month warranty
• Global shipping: FedEx, UPS, DHL

FAQs

Q: Minimum enclosure rating?
A: IP20 protection required.

Q: Works in cold storage?
A: Yes, from -10°C to 40°C.

Q: Communication ports?
A: RS-485 built-in + add-on options.

Q: Weight capacity for mounting?
A: Holds up to 12kg vertically.

Q: Sunlight exposure limit?
A: Avoid direct sunlight completely.
