Allen-Bradley 22B-D017F104 | New PowerFlex 40 AC Drive

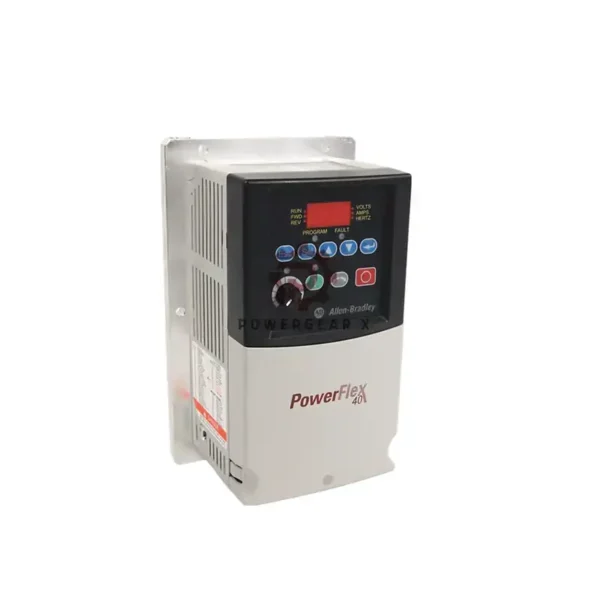

Allen-Bradley 22B-D017F104 PowerFlex 40 Drive

22B-D017F104 powers heavy industrial systems. This 10HP drive handles tough loads with smart braking and auto-tuning.

Key Specifications

• Model: 22B-D017F104
• Power: 10 HP / 7.5 kW
• Voltage: 380-480V AC 3-phase
• Current: 17.0A output
• Frame: Size C flange mount

Heavy-Duty Features

• Smart Braking: Works with low-cost resistors
• Auto-Tune: Adapts to any motor in seconds
• Network Ready: RS-485 multi-drive control
• Overload Capacity: 150% acceleration

Technical Details

• Dimensions: 325x300x105.8 mm (12.8×11.81×5.44 in)
• Weight: 11.93 kg (26.3 lbs)
• Enclosure: IP20 front / IP40-65 back
• Control: 24V sink/source

Installation Guide

• Flange mounts directly to panels
• Supports up to 31 networked drives
• Uses standard RTU commands
• Keep back heatsink clear

Support & Shipping

• Warranty: 12 months
• Delivery: FedEx, UPS, DHL
• Compliance: NEMA/UL Type 1/12/4/4X

Expert FAQs

• Q: How many drives can connect together?
  A: Up to 31 units in one network
• Q: Braking resistor requirements?
  A: Works with standard low-cost resistors
• Q: Protection rating for outdoor use?
  A: Back panel is IP65 rated
• Q: Motor tuning time?
  A: Auto-tunes in under 30 seconds
• Q: Control voltage options?
  A: 24V sink/source compatible

Get Complete Manual

• PowerFlex 40 Series Guide (PDF)
