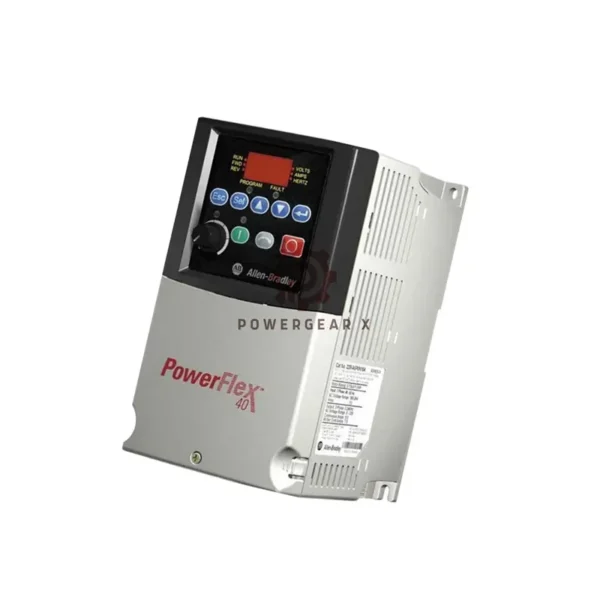

Allen-Bradley PowerFlex 40 22B-B8P0N104 Adjustable Frequency Drive
This compact 2HP (1.5kW) VFD delivers precise motor control for industrial applications. With sensorless vector technology and built-in braking, it optimizes performance while saving panel space. Ideal for pumps, fans, and conveyors.
Technical Specifications
- Brand: Allen-Bradley
- Model: PowerFlex 40 22B-B8P0N104
- Input: 200-240V AC, 3-Phase, 50/60Hz
- Output: 8A, 0-230V AC, 0-400Hz
- Power: 2.0 HP (1.5 kW)
- Efficiency: 97.5%
Key Technical Parameters
- Frequency Response: 0-400 Hz
- Temperature Range: 0°C to 60°C (Operating), -40°C to 85°C (Storage)
- Environmental Rating: IP20/NEMA Open (95% humidity non-condensing)
- Shock Resistance: 30g (operating), 50g (non-operating)
- EMC Compliance: EN 50081-2 & EN 50082-2
- Control Methods: V/Hz, Sensorless Vector (SVC)
Advanced Features
- Built-in PID control for standalone operation
- Autotune functionality for quick setup
- Embedded I/O:
- 3 fixed + 4 programmable discrete inputs
- 4 programmable outputs
- 2 analog inputs (0-10V/4-20mA)
- Communication: RS-485 interface
Installation & Operation
- Mounting: Panel mount design
- Setup: LED keypad for easy programming
- Maintenance: Self-diagnostics with fault logging
- Compatibility: Works with standard 3-phase AC motors
Certifications & Support
- Certifications: CE, UL, cUL
- Package Includes: Drive unit, installation manual
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL worldwide
FAQ
- Q: Does it include a filter?
A: No CE filter included - Q: What networks does it support?
A: RS-485 communication standard - Q: Is braking included?
A: Yes, built-in braking
Manual Download
Get full installation guide:
Download PowerFlex 40 Manual (PDF)
