Allen-Bradley 22A-D1P4N104 AC Drive | PowerFlex 4 Motor Control

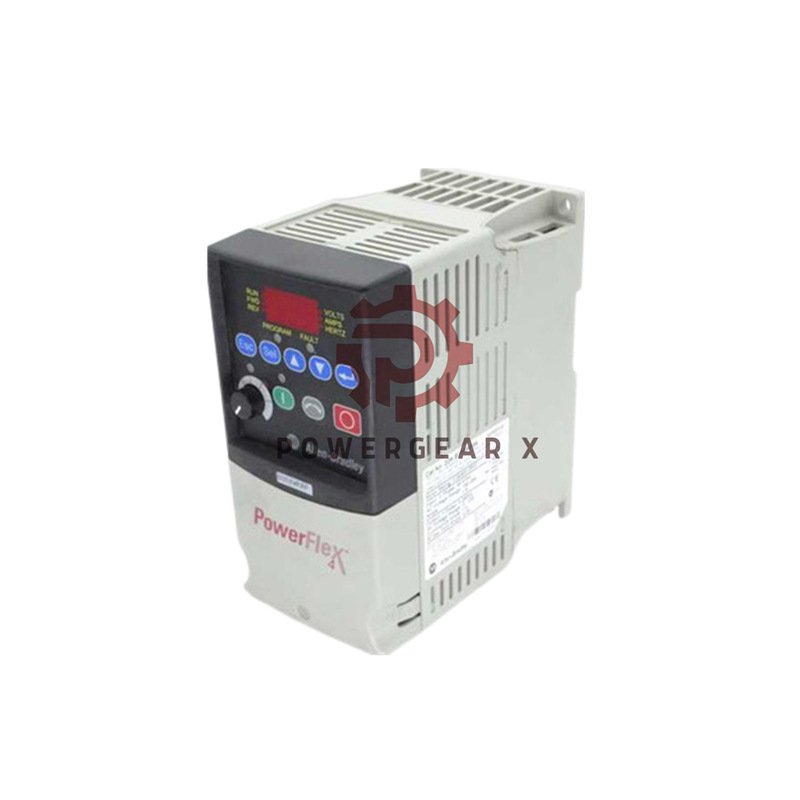

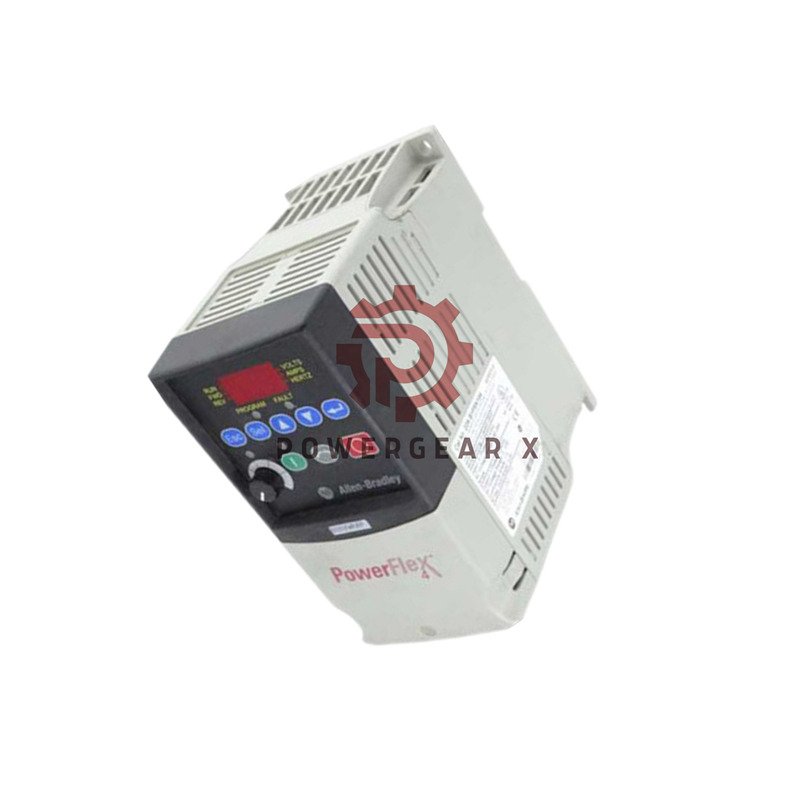

Allen-Bradley PowerFlex 4 22A-D1P4N104 AC Drive

Author: Powergear X Automation

This compact drive runs small motors with simple control and stable output. It fits easy jobs where space is tight and voltage is high.

Main Data

• Model: 22A-D1P4N104
• Power: 0.37 kW / 0.5 HP
• Voltage: 480 VAC, 3-Phase
• Current: 1.4 A
• Output: 0–480 VAC
• Enclosure: IP20, NEMA Open
• Mounting: Panel or DIN Rail
• Display: LED with fixed keypad
• Comm: RS485 (built-in)
• Filter: No CE filter
• Weight: 0.94 kg (2.06 lbs)

Extra Technical Values

• Control: V/Hz, Sensorless Vector
• Speed range: 0.5–400 Hz
• Accel / Decel: 0–600 s
• Overload: 150% for short time
• Analog inputs: 0–10 V, 0–20 mA, ±10 V
• Analog output: 0–10 V / 0–20 mA
• Digital inputs: 4 sink or source
• Relay outputs: 1 N.O., 1 N.C.
• Heat dissipation: Low due to small frame
• Zero stacking: Allowed
• Safety: STO function integrated
• Torque boost: Auto / manual
• Carrier frequency: 2–16 kHz

Key Advantages

• Small size for tight control boxes
• Fast setup with simple keypad
• Stable speed even with load change
• Low noise due to smart switching
• Strong for pumps, fans, conveyors
• Works in warm panels with proper airflow
• Good for OEM machines and retrofits

Warranty & Delivery

• 12-month warranty
• Shipping by FedEx, UPS, DHL
• Export-safe packing for long trips

Contact

• Email: sales@powergearx.com
• WhatsApp: +86 18030005825

FAQ

• 1. How do I reduce noise from the motor?
• Lower the carrier frequency or add a line reactor. Many users set 4–6 kHz for smooth sound.
• 2. What helps when the load starts heavy?
• Use Sensorless Vector mode. It gives better torque at low speed and helps during startup.
• 3. Can this drive run in a warm cabinet?
• Yes. Leave space around the heat sink and ensure air flow. Install fans if the cabinet traps heat.
• 4. What is the best way to wire the analog input?
• Keep the cable short and away from power wires. Shielded cable helps give steady reading.
• 5. How can I avoid trips in long-cable runs?
• Add a reactor or reduce the switching frequency. Both reduce cable effect and lower stress on the drive.
