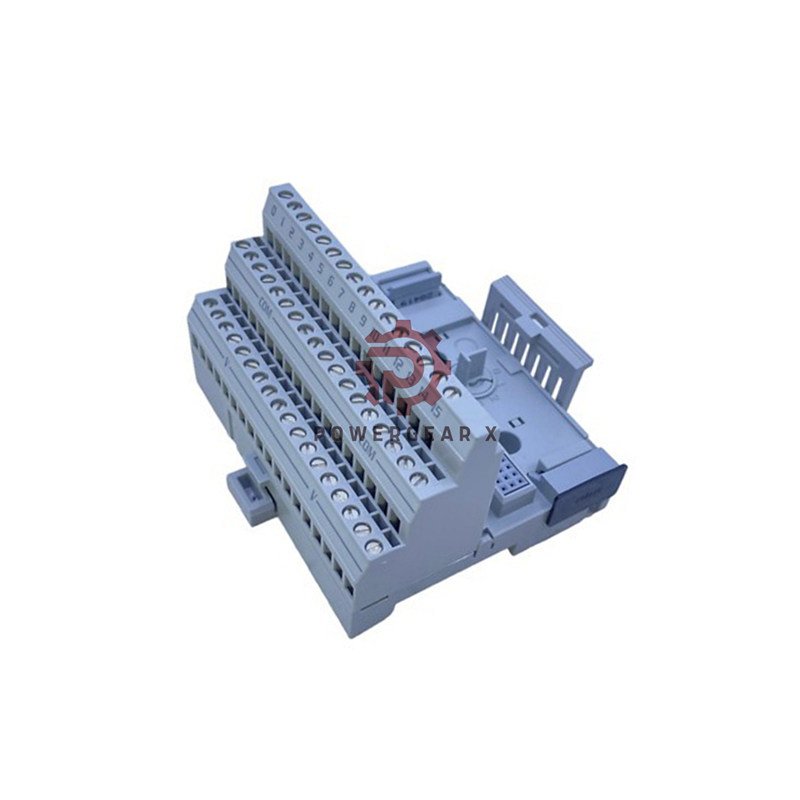

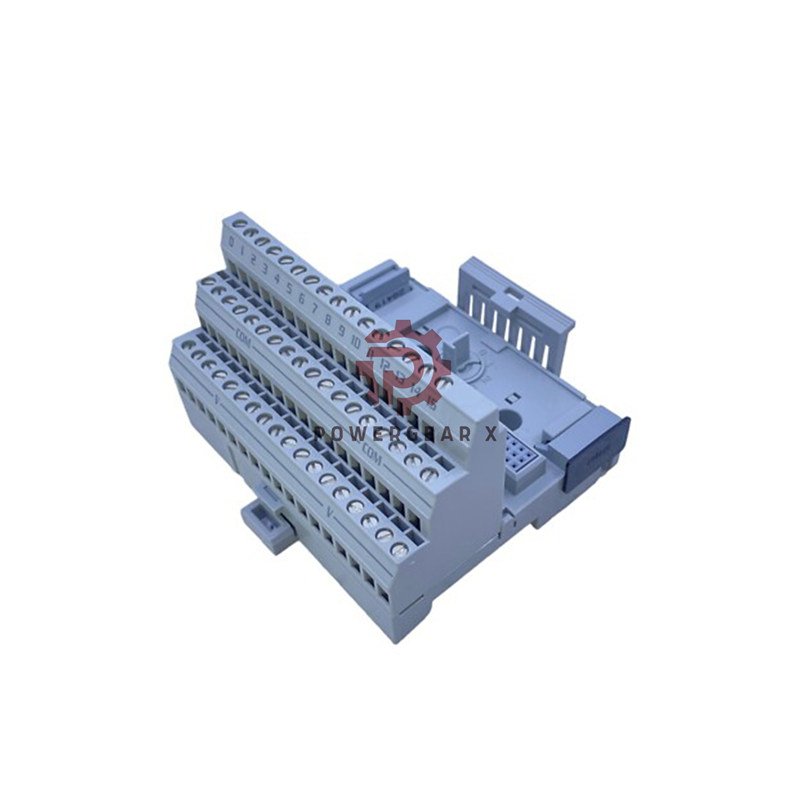

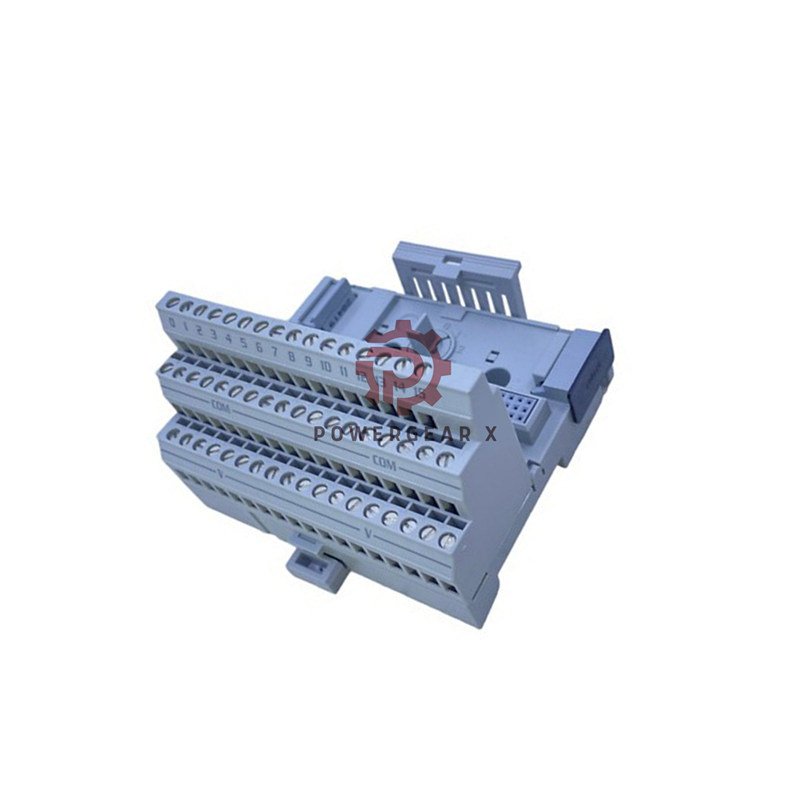

Allen-Bradley 1794-TB3 Flex I/O Terminal Base Unit
The 1794-TB3 is a terminal base for Allen-Bradley Flex I/O systems. It connects field devices and modules safely. This unit supports easy wiring and strong performance.
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Series: Flex I/O
- Model: 1794-TB3
- Product Type: Terminal Base Unit
- Terminal Strips: 3 strips (52 total terminals)
- Voltage Rating: 120V AC, 125V DC/AC max
- Current Capacity: 10A max
- Screw Torque: 0.56-0.79 Nm
- Wire Size: 0.34-3.3mm² (22-12 AWG)
- Backplane Current: 640 mA @ 5V DC
- Isolation Voltage: 125V continuous
- Dimensions: 94x94x69 mm
- Shipping: FedEx, UPS, DHL available
Packaging & Delivery
- Includes one 1794-TB3 Terminal Base Unit
- Protected by 12-month quality warranty
- Fast global shipping via FedEx, UPS, or DHL
Frequently Asked Questions
- Which modules work with the 1794-TB3? It supports many I/O modules like IA8, OA8, IB16, OB8, and more.
- What wire size should I use? Use wires between 0.34-3.3mm² (22-12 AWG).
- Can I connect multiple bases together? Yes, it supports daisy-chaining for easy expansion.
- What is the maximum voltage? It can handle up to 120V AC or 125V DC.
- Is this unit rated for safe use? Yes, it is c-UL-us, UL, CSA, and CE certified.
