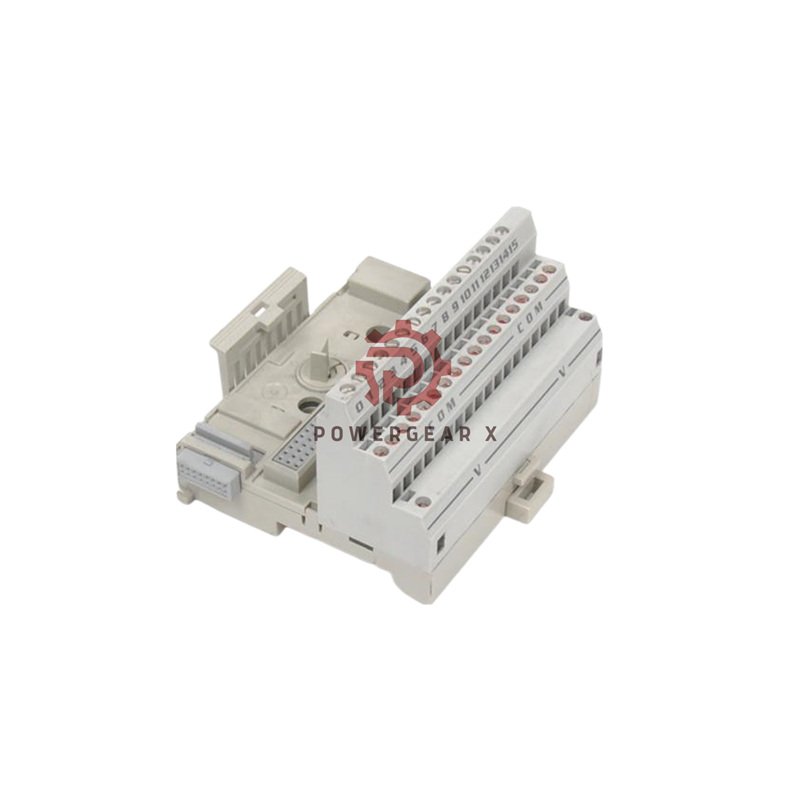

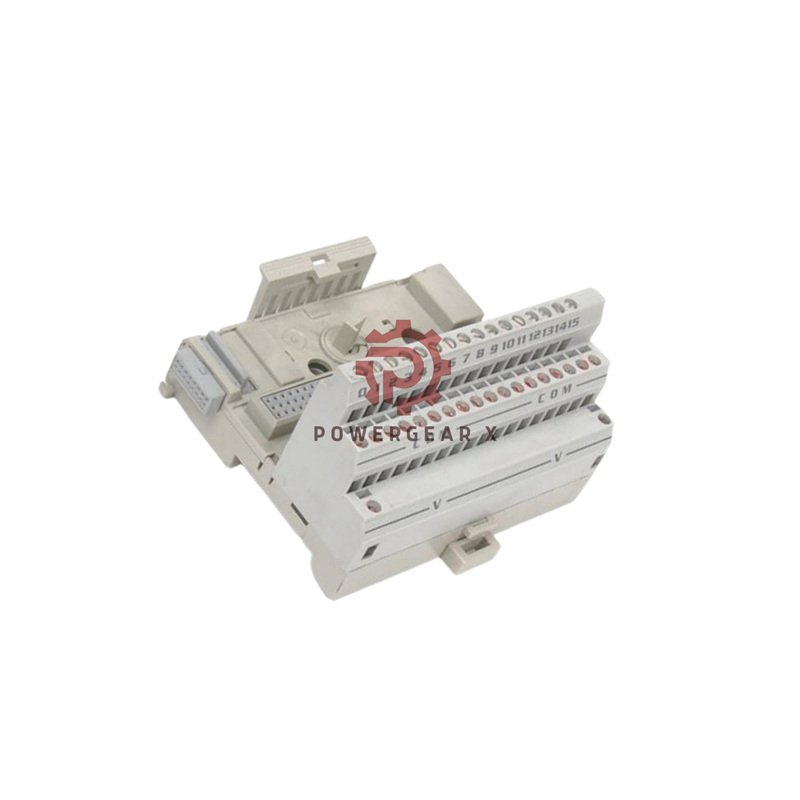

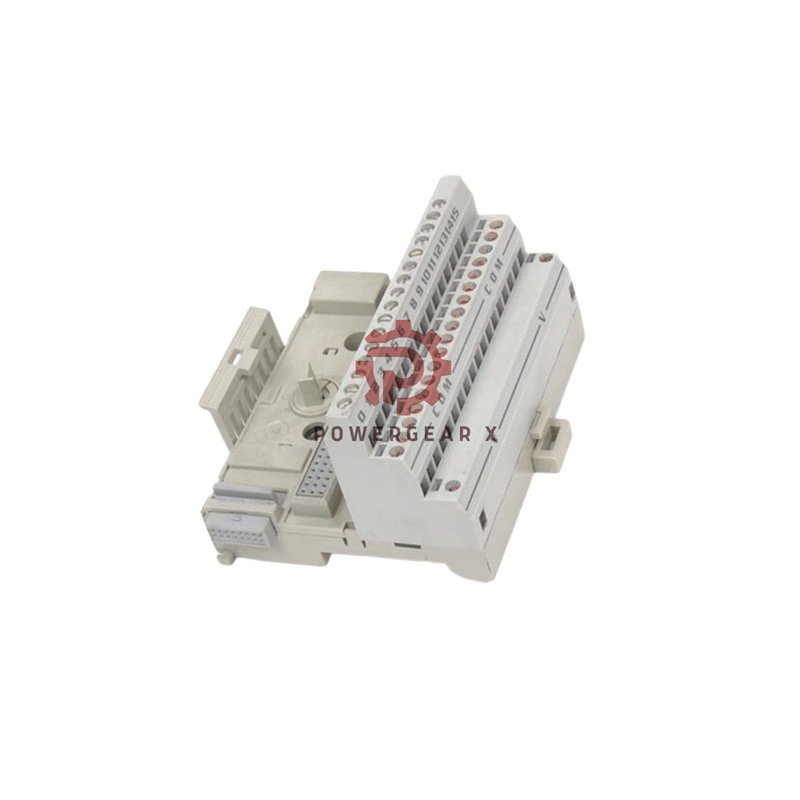

Allen-Bradley 1794-TB2: Your Flexible Connection Point
The 1794-TB2 from Allen-Bradley is a strong terminal base for Flex I/O systems. It lets you connect wires easily with its cage clamp design. You can mount it on a panel or a standard DIN rail.
Technical Details
- Brand: Allen-Bradley | Rockwell Automation
- Model: 1794-TB2 Terminal Base Unit
- Terminal Type: Cage Clamp
- Max Voltage: 125V AC/DC
- Max Current: 10 Amps
- Wire Size: 0.21 – 1.3 mm² (24-16 AWG)
- Screw Torque: 0.56 – 0.79 Nm
- Operating Temp: 0°C to 55°C
- Storage Temp: -40°C to 85°C
- Vibration Resistance: 5g (10-500 Hz)
- Shock Resistance: 30g operating, 50g non-operating
- Dimensions: 94 x 94 x 69 mm
What’s Included & Shipping Info
- One 1794-TB2 Terminal Base Unit
- All necessary documentation
- 12-month product warranty
- Fast worldwide shipping via FedEx, UPS, or DHL
Common Questions
- What wires fit this base? Use 24-16 AWG stranded copper wire.
- Can I use solid core wire? It is designed for stranded wire.
- Does it work with all Flex I/O modules? It is compatible with most 1794 series modules.
- Is the terminal block removable? No, it is a fixed part of the base unit.
- What is the isolation voltage? It depends on the module you plug in.
