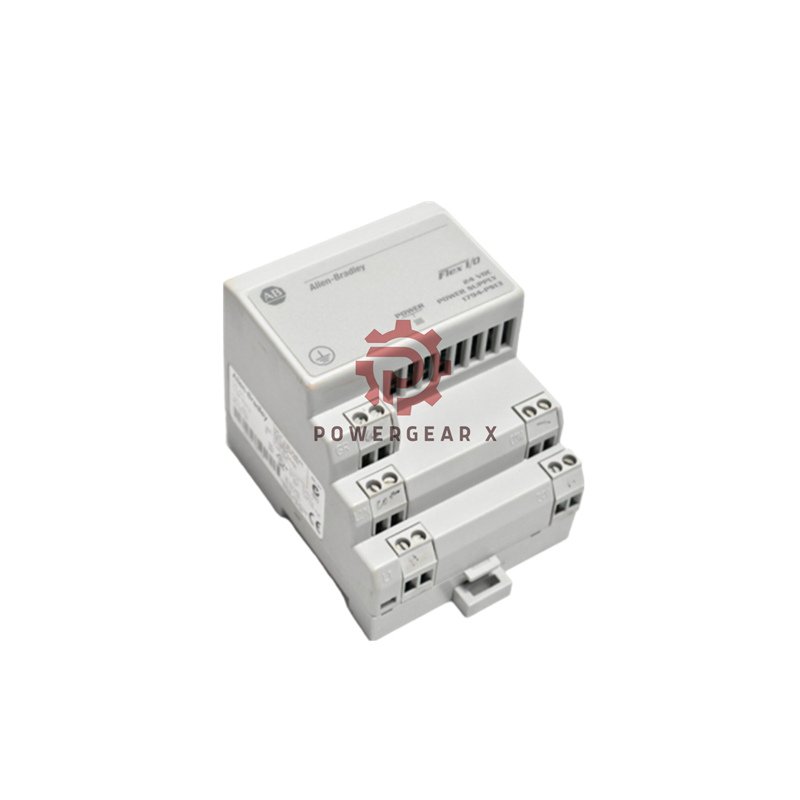

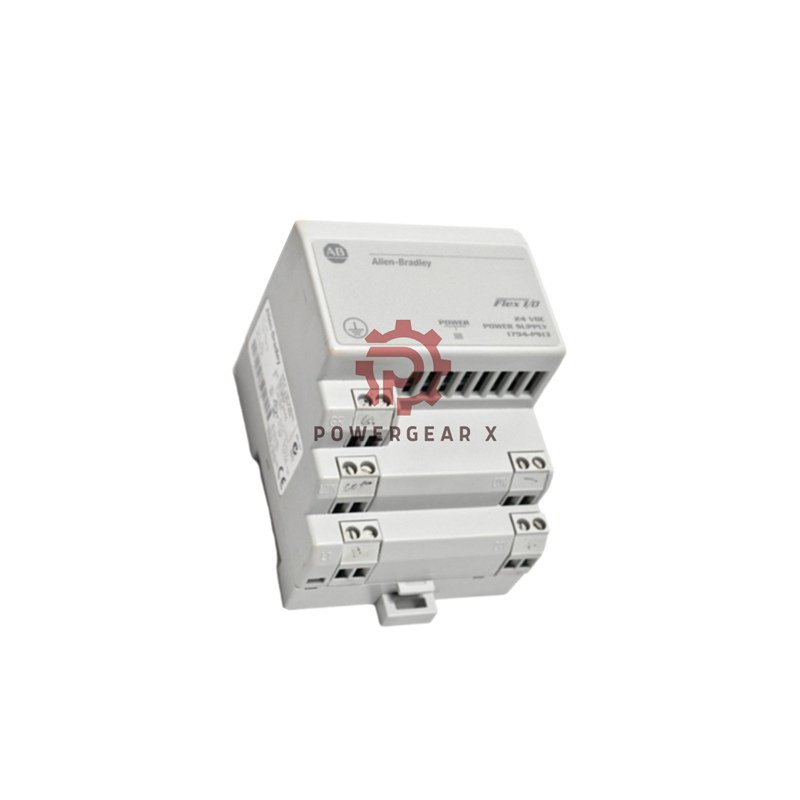

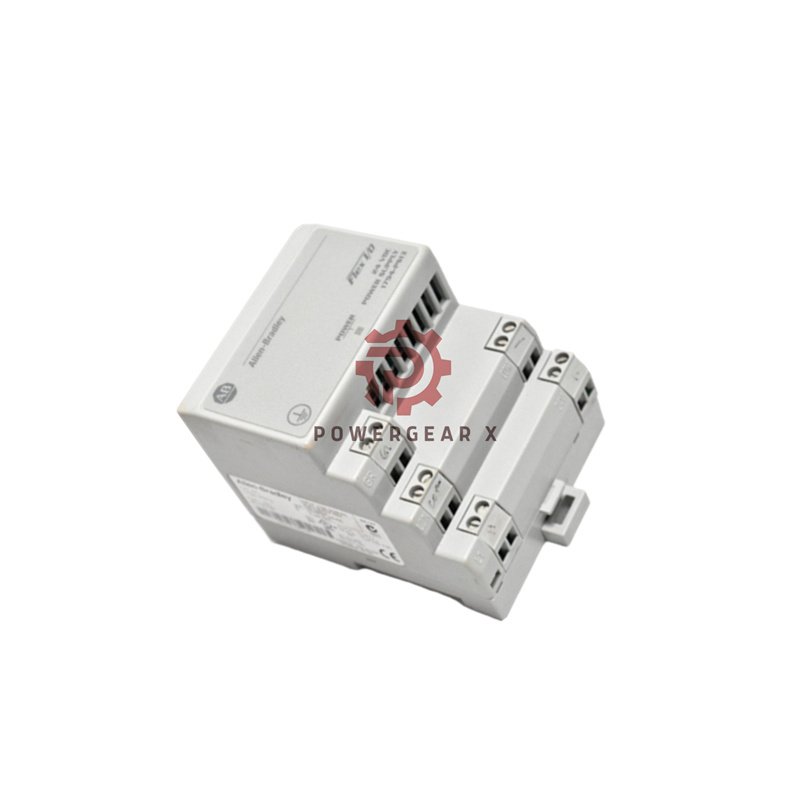

Allen-Bradley 1794-PS13 Flex I/O Power Supply

The 1794-PS13 powers your entire Flex I/O system. It converts AC power to stable DC voltage. This supply supports up to four adapters for flexible setup.

Complete Technical Specifications

• Brand: Allen-Bradley
• Model: 1794-PS13
• Input Voltage: 85-264V AC, 47-63 Hz
• Nominal Input: 120V/230V AC
• Max Input Current: 0.7A
• Output Voltage: 24V DC (20.4-27.6V DC range)
• Output Current: 1.3A max
• Output Power: 31.2 Watts
• Overcurrent Protection: 1.4A
• Isolation Voltage: 2500V DC for 1 second
• Power Dissipation: 7W max
• Operating Temperature: 0 to 55°C (32 to 131°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Relative Humidity: 5-95% non-condensing

Installation Requirements

• Use with 0.34-2.5 mm² (22-12 AWG) copper wire
• Apply 0.8 Nm (7 lbs-in) torque for connections
• Install in open-type enclosure for protection
• Ensure proper ventilation around the unit

Package Contents & Support

• One 1794-PS13 power supply module
• Complete installation documentation
• 12-month manufacturer warranty
• Worldwide shipping via FedEx, UPS, DHL

Frequently Asked Questions

• Q: How many adapters can this power supply support?
  A: It can power up to four adapters simultaneously.
• Q: What does the green indicator light mean?
  A: It shows output voltage is between 20.4V and 28V DC.
• Q: Can I use this supply with both AC and DC modules?
  A: Yes, it works with both AC and DC Flex I/O modules.
• Q: What is the input voltage range?
  A: It accepts 85-264V AC, 47-63 Hz input.
• Q: Is overvoltage protection included?
  A: Yes, it has internal overvoltage protection up to 35V DC.
