Allen-Bradley 1794-OV16 Digital Output Module – 16 Sinking Points

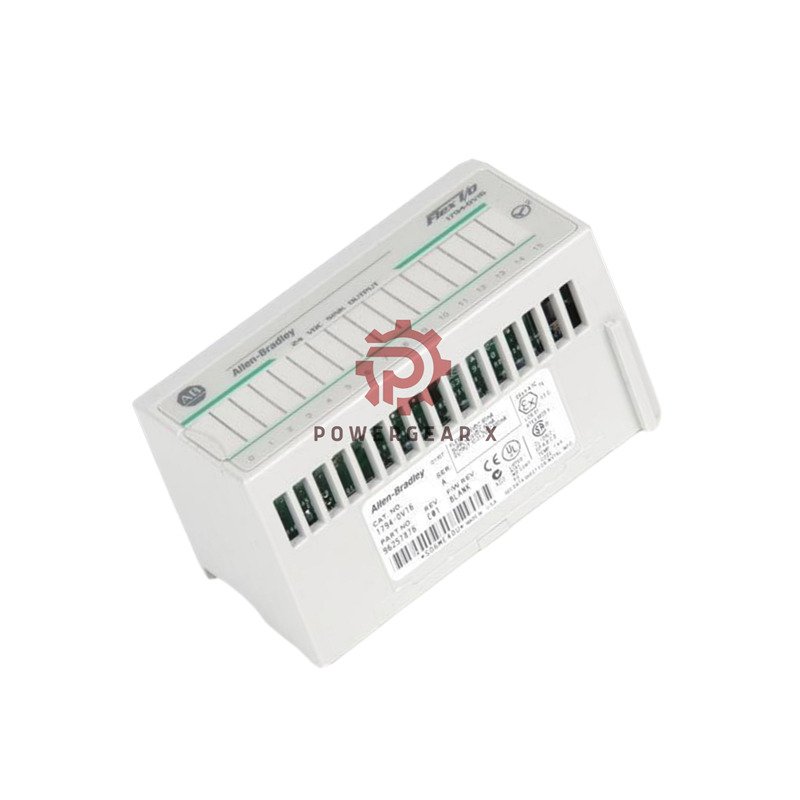

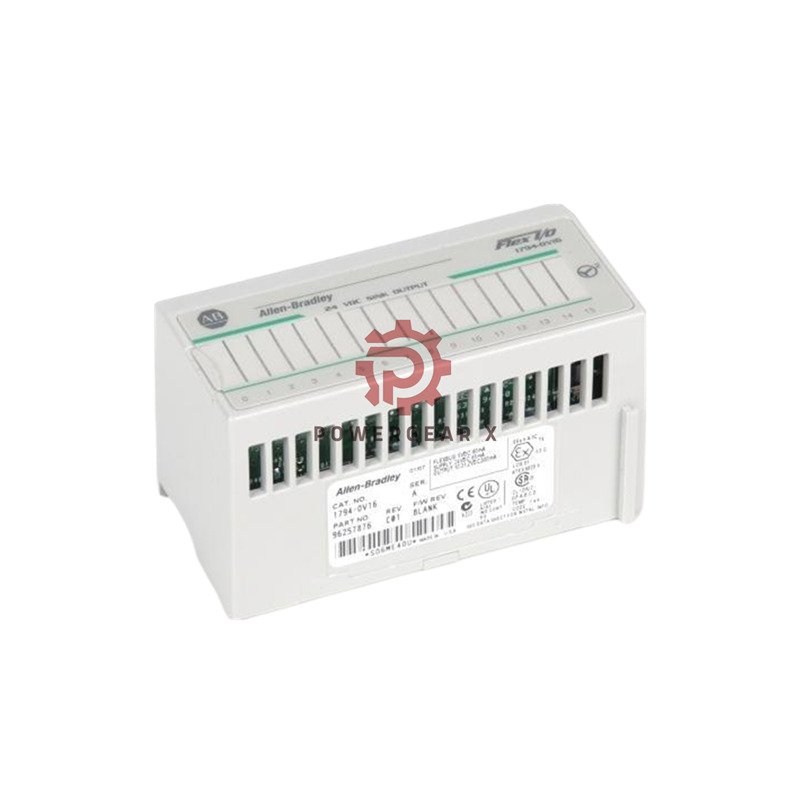

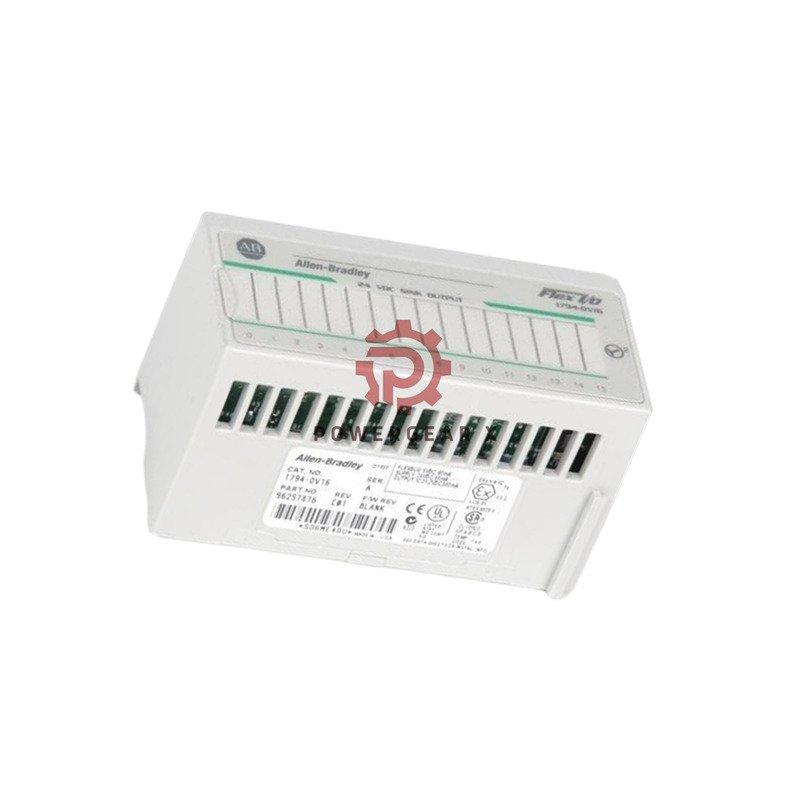

Allen-Bradley 1794-OV16 Digital Output Module

The 1794-OV16 module gives you 16 digital outputs for your control system. This sinking output module works with 24V DC devices. It fits right into your Flex I/O system for easy expansion.

Technical Details

• Product Type: Digital Sinking Output Module
• Output Points: 16 sinking
• Voltage Range: 10-31.2V DC
• Current per Channel: 500mA maximum
• Total Current: 8.0A per module
• Leakage Current: 0.5mA maximum
• Power Use: 4.2W at 31.2V DC
• Heat Output: 14.3 BTU/hour
• Works With: 1794-TB3, 1794-TB3S bases
• Operating Temp: 0° to 55°C (32° to 131°F)
• Humidity Range: 5-95% non-condensing
• Communication: Ethernet/IP, DeviceNet, ControlNet

What’s In The Box

• One 1794-OV16 output module
• 12-month product warranty
• Shipping via FedEx, UPS, or DHL

Common Questions

• How many devices can this module control?
  It can control up to 16 devices with its 16 output channels.
• What types of loads can it handle?
  It works with relays, valves, motor starters, and other 24V DC devices.
• Is this module rated for wet locations?
  No, it has IP20 rating for dry locations only.
• Can I add more than one module to a system?
  Yes, Flex I/O systems support multiple modules.
• What happens if a short circuit occurs?
  The module has protection against short circuits.
