Allen-Bradley 1794-OM8 Digital Output Module | 8 AC Outputs

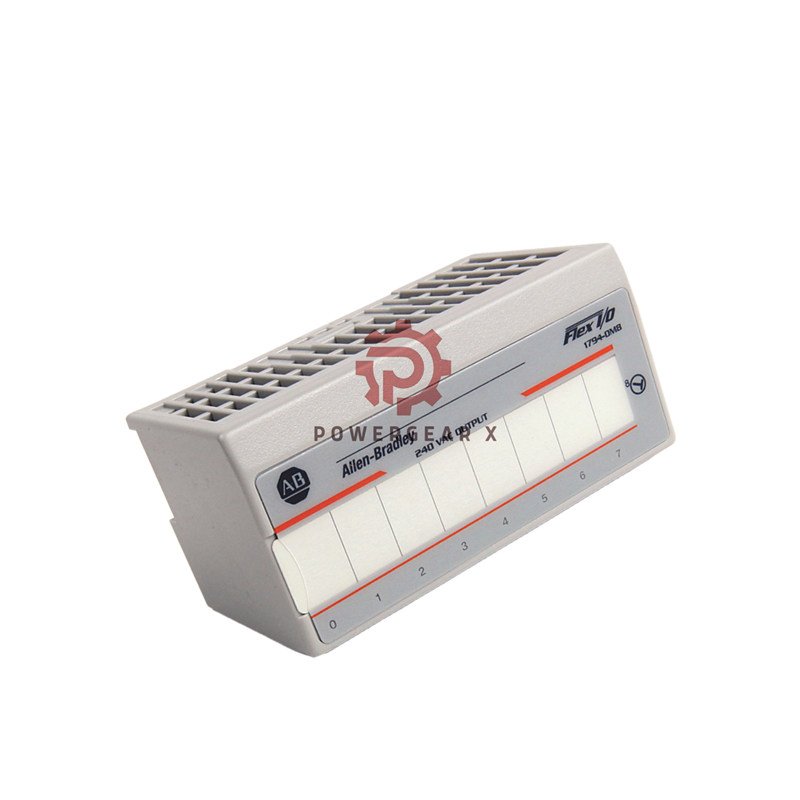

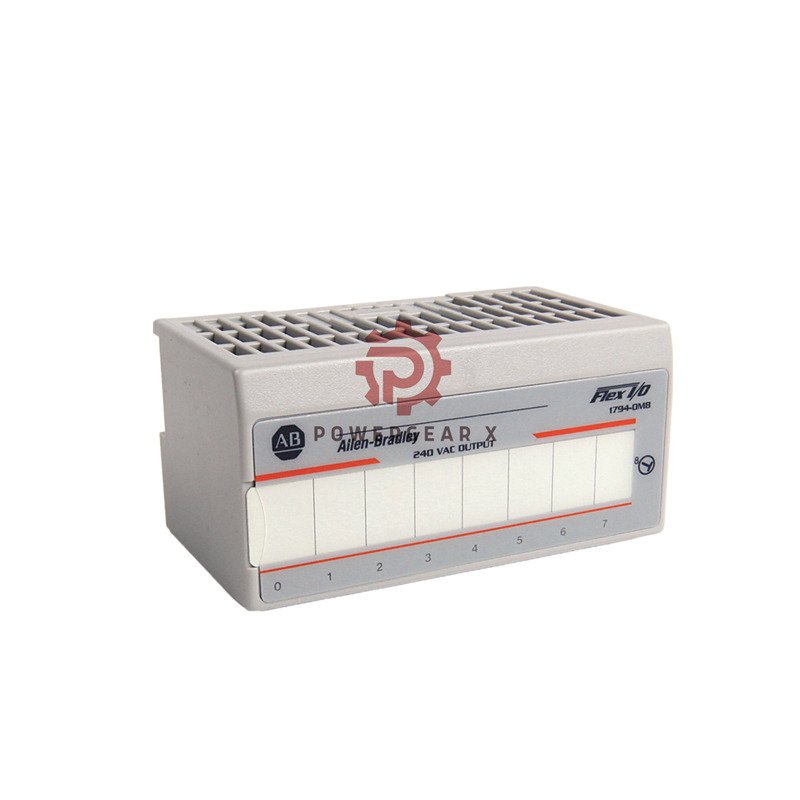

Allen-Bradley 1794-OM8 Digital Output Module

The 1794-OM8 module gives you 8 powerful AC outputs. It handles high voltage jobs with ease. This module fits right into your Flex I/O system for solid control.

Technical Details

• Brand: Allen-Bradley
• Model: 1794-OM8
• Output Type: 8 non-isolated AC outputs
• Voltage: 240V AC nominal
• Current Rating: 4.0A per module
• On-State Current: 500mA per output
• Leakage Current: 2.5mA max off-state
• Isolation: 250V continuous
• Power Use: 60mA @ 5V DC
• Heat Output: 5W max
• Work Temperature: 0 to 55°C (32 to 131°F)
• Humidity: 5% to 95% non-condensing

What You Need for Setup

• Use with 1794-TBNF or 1794-TBN terminal bases
• Snap directly onto a standard DIN rail
• Must be placed inside a protective enclosure
• Ensure your power supply matches the voltage needs

What Comes in the Box

• One 1794-OM8 digital output module
• Printed user manual and guide
• This product includes a 12-month warranty
• We ship via FedEx, UPS, or DHL

Common Questions

• Q: Can I replace the module while the power is on?
  A: Yes, you can. It is designed for hot swapping.
• Q: What communication options does it support?
  A: It works with ControlNet, DeviceNet, EtherNet/IP, and more.
• Q: Is the 1794-OM8 module isolated?
  A: It has 250V continuous isolation for safety.
• Q: Can it work in very cold or hot places?
  A: It operates from 0 to 55°C. For harsher conditions, ask about XT versions.
• Q: How do I know if an output is on?
  A: Each output has a yellow LED status indicator.
