Product details
Product Overview

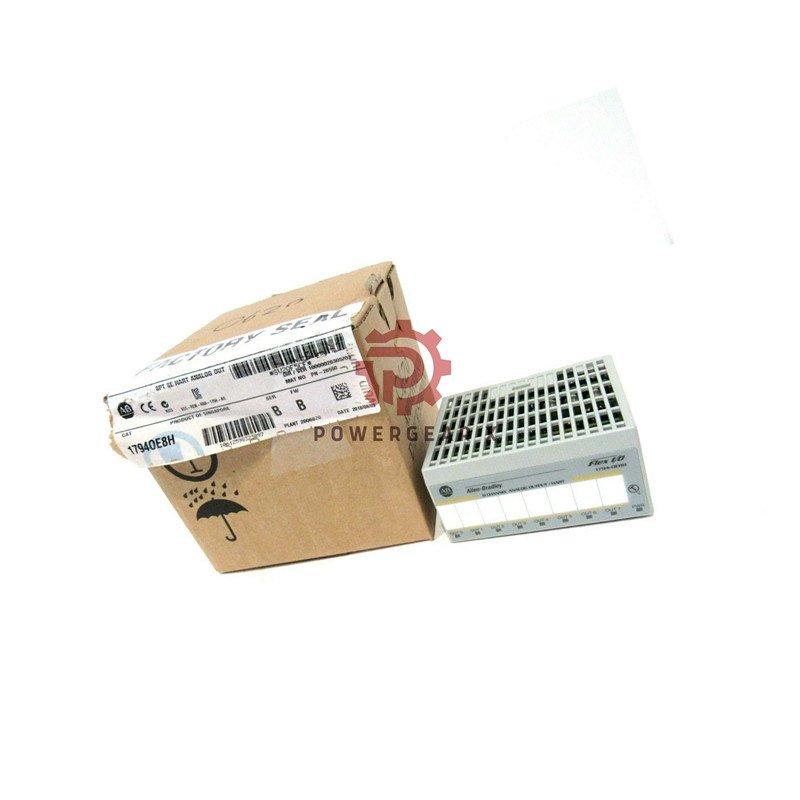

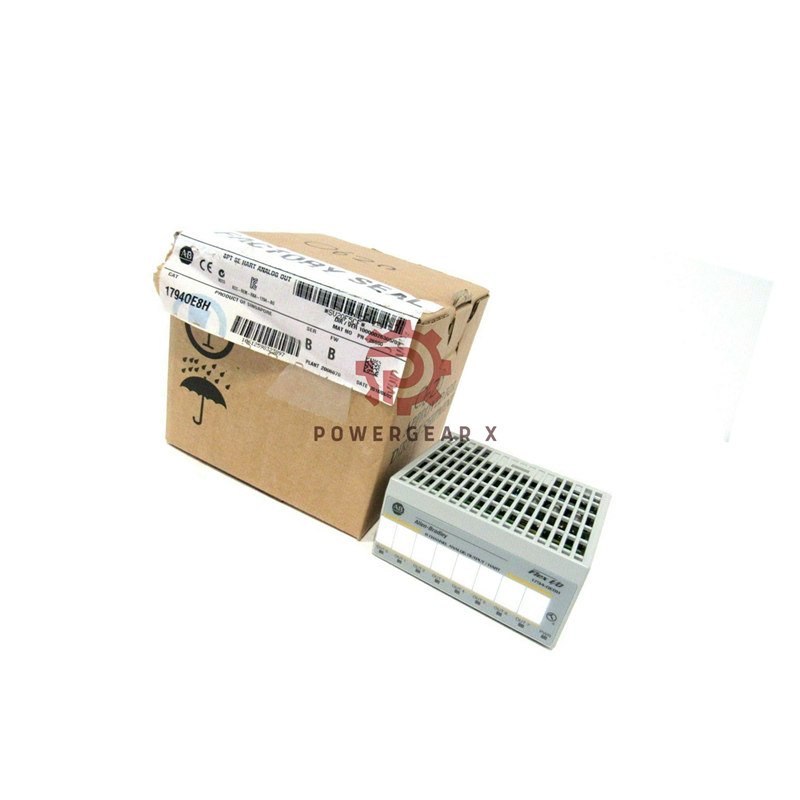

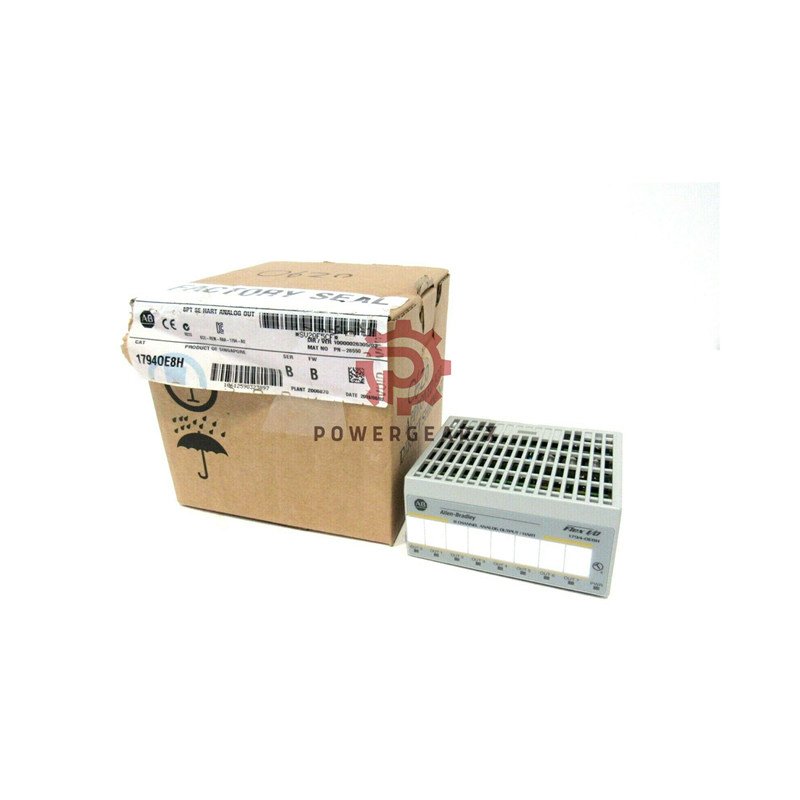

The 1794-OE8H from Allen-Bradley is a FLEX I/O HART analog output module. This 8-channel module delivers reliable control for industrial automation systems with advanced HART communication capabilities.
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Series: FLEX I/O 1794
- Model: 1794-OE8H (complete suffix: 1794-OE8H)
- Product Type: HART Analog Output Module
- Number of Outputs: 8 channels
- Output Type: Analog current
- Output Range: 0-20 mA or 4-20 mA (configurable)
- Ambient Temperature: 25°C (±5°C)
- Channel Connection: Electrical
Installation Guide
- Mount the module securely on a compatible 1794 terminal base unit
- Use the keyswitch mechanism to lock the module in place safely
- Complete all wiring before finalizing the module position
- Note: This module requires factory service if damaged or faulty
Packaging List
- 1 x Allen-Bradley 1794-OE8H Analog Output Module
- Shipping Methods: FedEx, UPS, DHL express services available
Frequently Asked Questions
- What current outputs does this module support? It provides both 0-20 mA and 4-20 mA output ranges.
- Is channel isolation available? No, all eight output channels are non-isolated.
- Does it support HART communication? Yes, the 1794-OE8H fully supports HART protocol.
- What is the operating temperature range? It operates at 25°C with a ±5°C tolerance.
