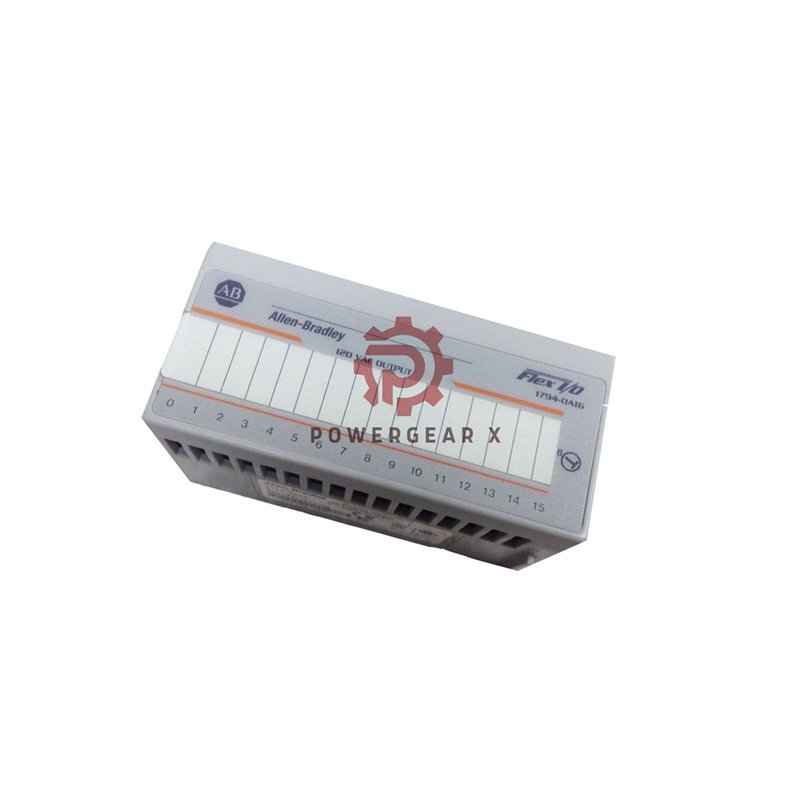

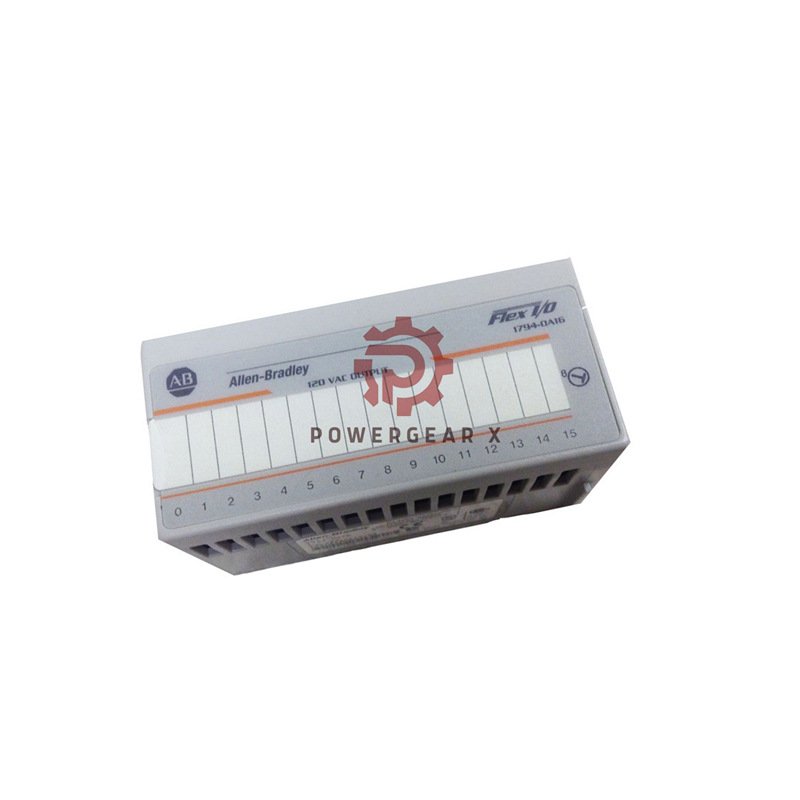

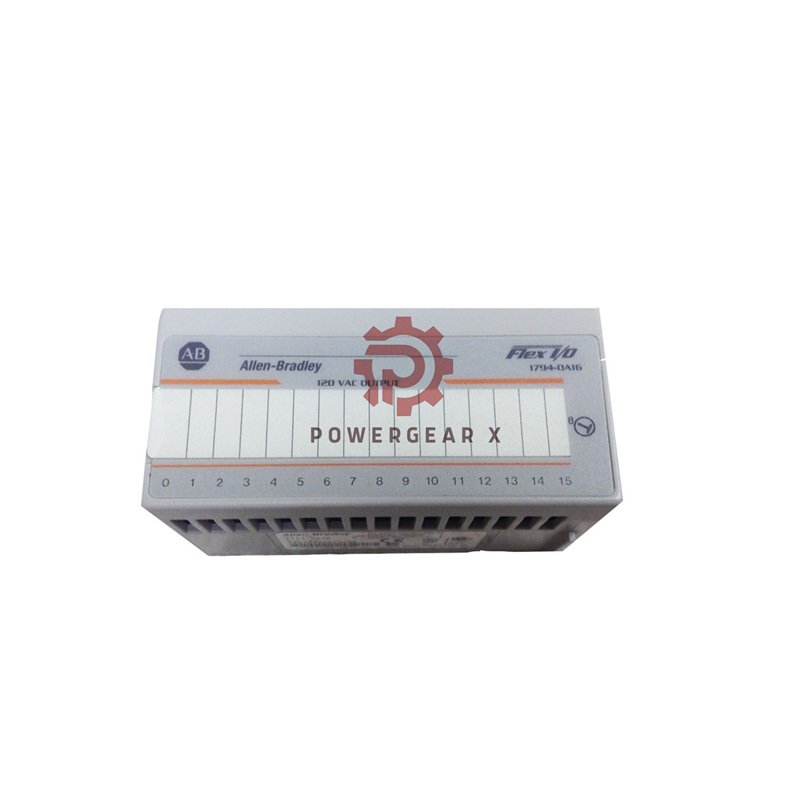

Allen-Bradley 1794-OA16 Flex I/O AC Output Module
The 1794-OA16 gives you 16 AC outputs in one compact module. It controls motors, lights, solenoids, and other 120V AC devices with reliability.
Full Product & Service Info
- Brand: Allen-Bradley (Rockwell Automation)
- Full Model: 1794-OA16
- Warranty: 12 full months
- Shipping: FedEx, UPS, or DHL fast delivery
Technical Specifications
- Output Type: 16 non-isolated AC channels
- Voltage Range: 74 – 132V AC, 47-63 Hz
- Rated Current: 4A max total, 500mA per point (at 55°C)
- Min. On-state Current: 5 mA per output
- On-state Voltage Drop: 1.5V AC max @ 0.5A
- Off-state Leakage: 2.25 mA max
- Surge Current: 7A for 40ms (repeatable every 8 sec)
- Response Time: ½ AC cycle (ON or OFF)
- Power Dissipation: 4.7W max @ 0.5A
- FlexBus Current: 80mA @ 5V DC
- Isolation Test: 2150V DC for 1 second
- ESD Immunity: 8kV air discharge
- Vibration Resistance: 5g @ 10-500 Hz
- Weight: 96g (3.38 oz)
- Dimensions: 94 x 94 x 69 mm (3.7 x 3.7 x 2.7 in)
FAQ
- Do the outputs have built-in fuses?
No, you need a fused terminal base like the 1794-TBNF for protection. - What is the minimum load this 1794-OA16 module can control?
It needs at least 5mA of current per output to work correctly. - Can I use this module to control a 240V AC load?
No, its maximum voltage is 132V AC. Use a different module for 240V. - How do I wire the common connection for the outputs?
You must connect an external 120V AC common source to the terminal base. - Is there delay when turning outputs on or off?
Yes, there is a small delay of up to one-half cycle of the AC power.
