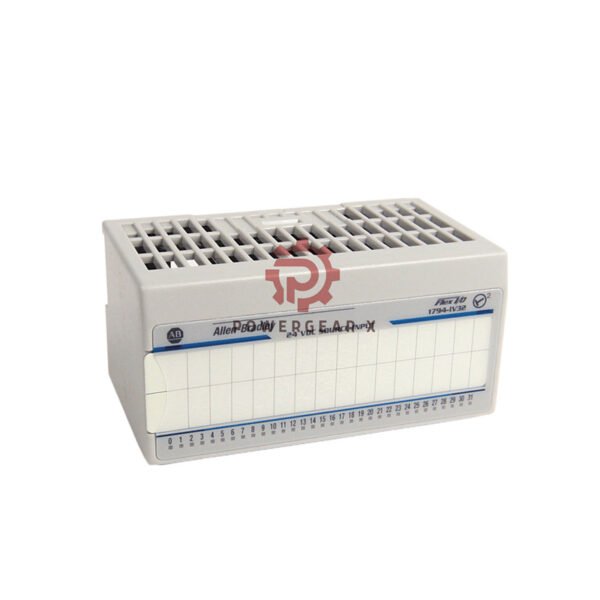

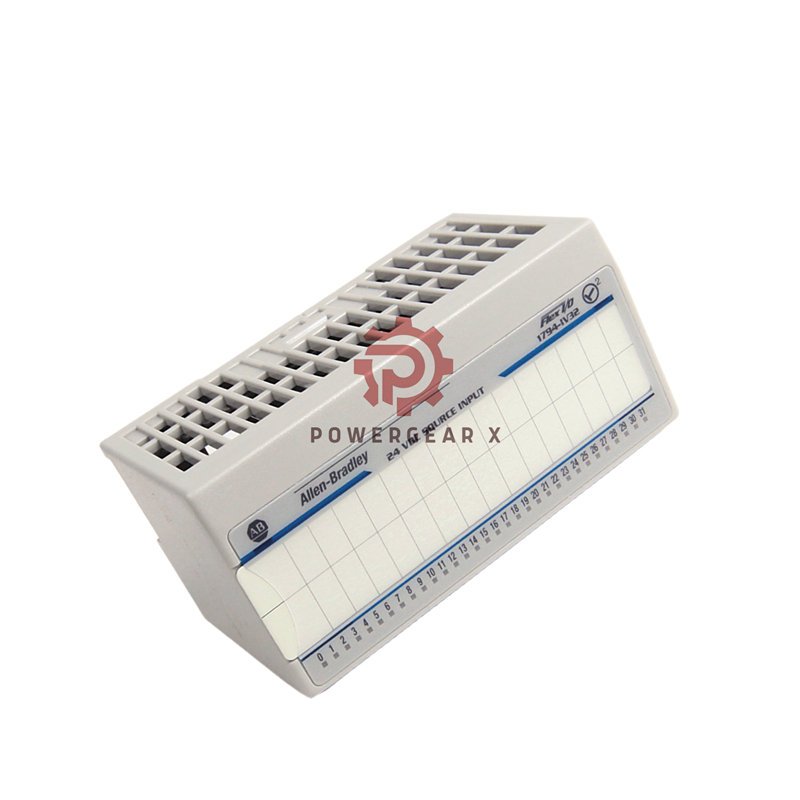

Allen-Bradley 1794-IV32 | 32-Channel DC Input Module | Flex I/O System
The Allen-Bradley 1794-IV32 provides high-density 24VDC input monitoring for industrial control systems. This compact module connects thirty-two field devices to your automation network.
Complete Technical Specifications
- Brand: Allen-Bradley/Rockwell Automation
- Model: 1794-IV32 (Full catalog number)
- Input Channels: 32 sourcing inputs
- Voltage Range: 19.2-31.2 VDC operating
- Nominal Voltage: 24 VDC
- Current Draw: 4.1 mA typical @ 24VDC
- Filter Times: 0.25ms to 32ms (8 selectable times)
- Isolation: 50V continuous field to system
- FlexBus Current: 40mA @ 5VDC
- Status Indicators: 32 yellow LED indicators
- Dimensions: 3.7 x 3.7 x 2.7 inches
- Pollution Degree: Level 2
- Overvoltage Category: Category II
- Altitude Rating: 6562 feet maximum
Compatible Components
- Terminal Bases: 1794-TB32, 1794-TB32S
- Additional Bases: 1794-TB62DS, 1794-TB62EXD4X15
- Controllers: PLC5, SLC 500, CompactLogix, ControlLogix
- Communication Adapters: All Flex I/O adapters
Frequently Asked Questions
- What devices connect to this module? It works with switches, sensors, and contacts.
- How do I reduce electrical noise issues? Use the configurable filter time settings.
- Can I use this module outdoors? No, it is rated for indoor use only.
- What controllers support this module? It works with most Allen-Bradley PLC systems.
- How are the status indicators used? They show the state of each input channel.
