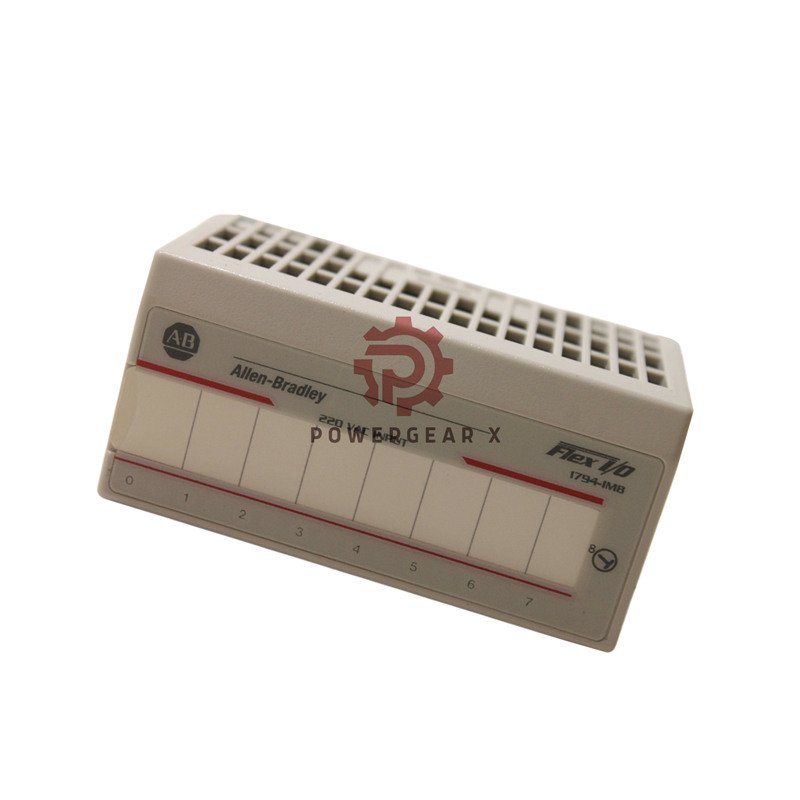

Allen-Bradley 1794-IM8 | 220V AC Digital Input Module | Flex I/O System
The Allen-Bradley 1794-IM8 delivers reliable high-voltage input monitoring for industrial automation systems. This robust module connects directly to 220V AC signals without additional interfaces.
Complete Technical Specifications
- Manufacturer: Rockwell Automation
- Brand: Allen-Bradley
- Model: 1794-IM8 (Full Suffix: 1794-IM8/A)
- Input Type: 8 non-isolated digital inputs
- Voltage Rating: 240V AC nominal operation
- On-State Current: 13.21 mA maximum
- Off-State Current: 2.6 mA maximum
- Input Impedance: 22.3 kΩ nominal
- Isolation Voltage: 250V continuous
- Power Consumption: 30mA @ 5V DC Flexbus
- Thermal Dissipation: 16.2 BTU/hour maximum
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Dimensions: 94 x 94 x 91 mm
- Enclosure Type: Open style
