Allen-Bradley 1794-IH16 DC Input Module In Stock

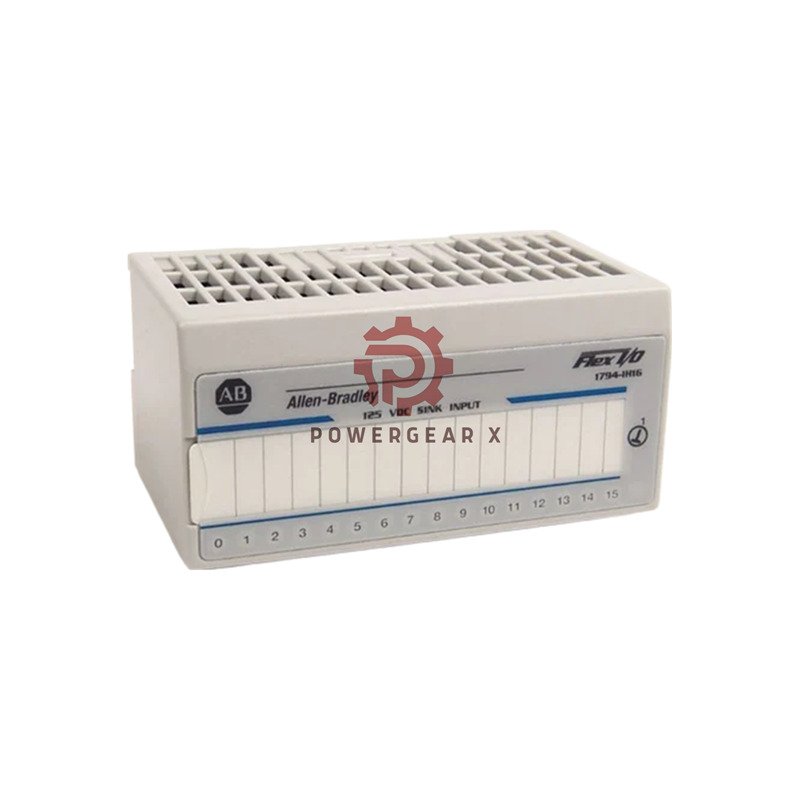

Allen-Bradley 1794-IH16 High-Voltage DC Input Module

The 1794-IH16 handles high-voltage signals in tough industrial settings. This robust module connects 16 field devices directly to your control system.

Complete Technical Specifications

• Brand & Model: Allen-Bradley 1794-IH16
• Input Type: 16-point DC sinking inputs
• Nominal Voltage: 125VDC
• Voltage Range: 90-146VDC (on-state)
• Off-State Voltage: 20VDC maximum
• Nominal Current: 2mA @ 125VDC
• Current Range: 1-3mA (on-state)
• Power Dissipation: 6W @ 146VDC
• Thermal Dissipation: 20.47 BTU/hour
• Full Suffix: 1794-IH16/B (see product label)

Environmental Ratings

• Hazardous location certification
• Operating temperature: 0°C to 55°C
• Vibration resistant: 5g @ 10-500Hz
• Humidity tolerance: 5-95% non-condensing

Compatibility & Installation

• Works with terminal bases: 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK
• Easy DIN rail mounting
• Connects to Flex I/O communication adapters
• No isolation between input channels

Package & Shipping Details

• One 1794-IH16 input module
• Installation documentation
• 12-month warranty
• Worldwide shipping via FedEx, UPS, DHL
