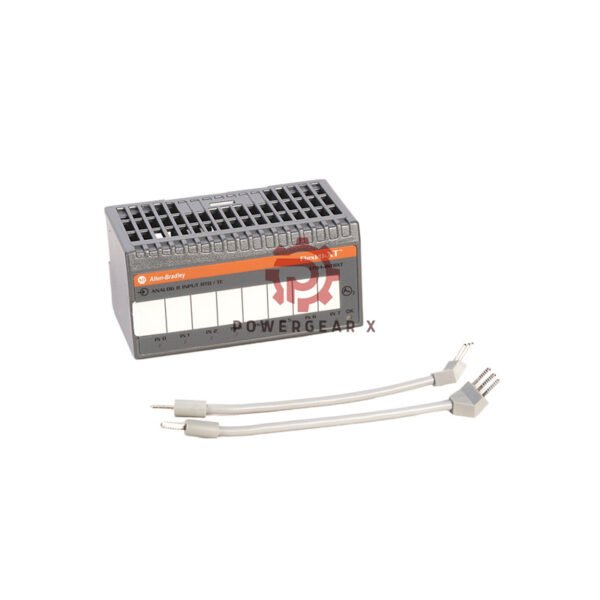

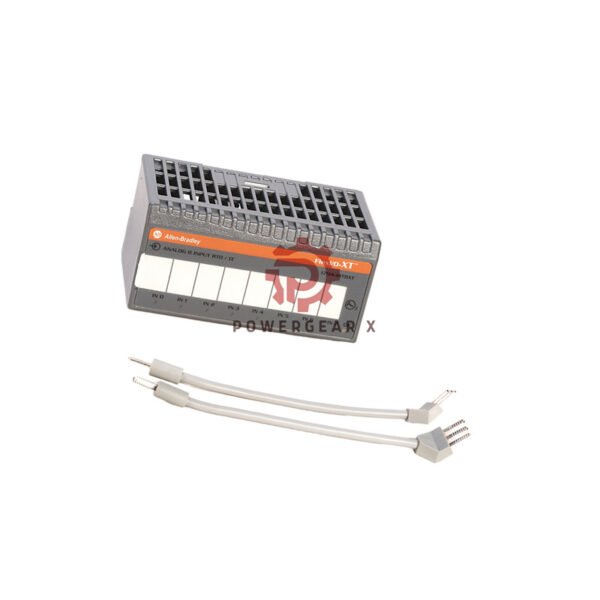

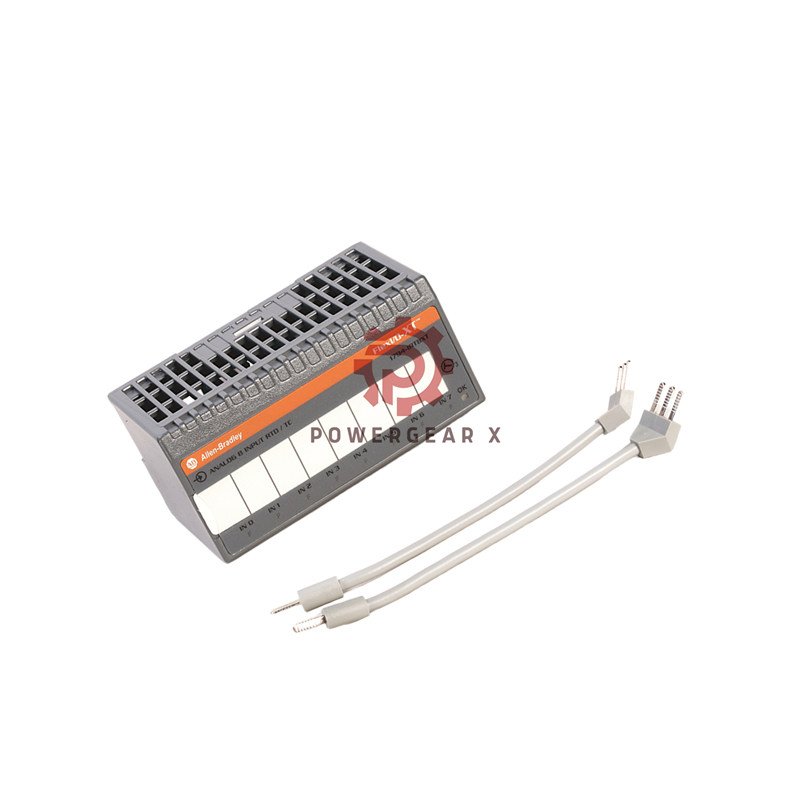

Allen-Bradley 1794-IF4IXT: 4-Channel Isolated Analog Input Module

This high-performance module ensures accurate signal reading in tough industrial settings. It is perfect for long-distance sensor connections.

Detailed Technical Specifications

• Brand & Model: Allen-Bradley 1794-IF4IXT
• Input Channels: 4 isolated analog inputs
• Signal Types: Voltage (±10V) and Current (0-20mA)
• Resolution: 16-bit for unipolar, 15-bit for bipolar signals
• Conversion Method: Sigma Delta
• Power Usage: 2W at 31.2V DC
• Heat Output: 6.8 BTU per hour
• Operating Temperature: -20°C to 70°C
• Isolation: Channel-to-channel isolation
• Module Dimensions: 46mm x 94mm x 53mm

Compatible Terminal Bases

• 1794-TBN, 1794-TB2, 1794-TB3, 1794-TB3S
• 1794-TB3T, 1794-TB3TS, 1794-TBNK
• 1794-TB3K, 1794-TB3SK, 1794-TB3TK, 1794-TB3TSK
