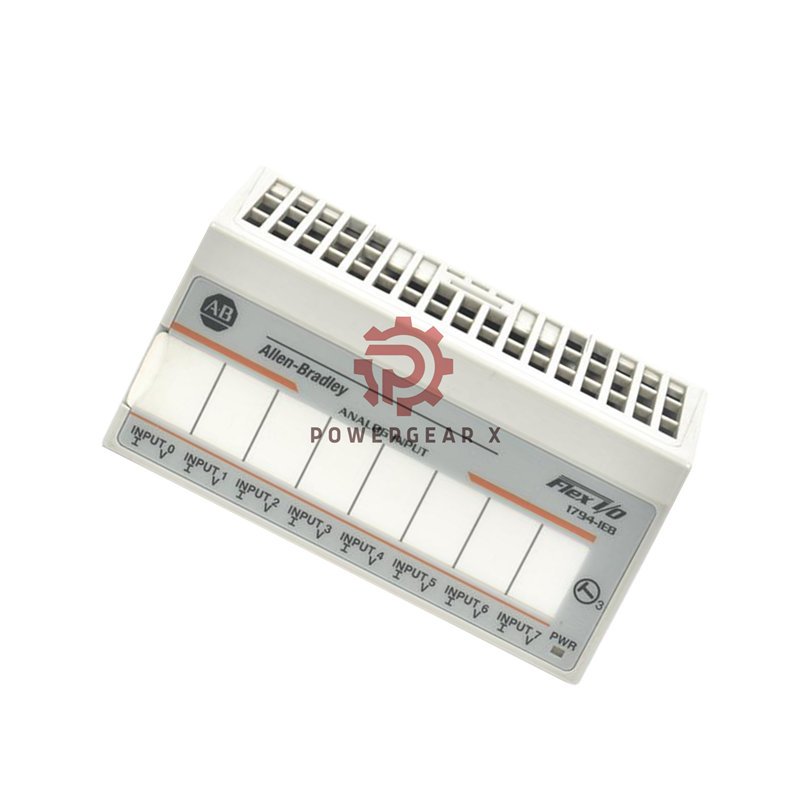

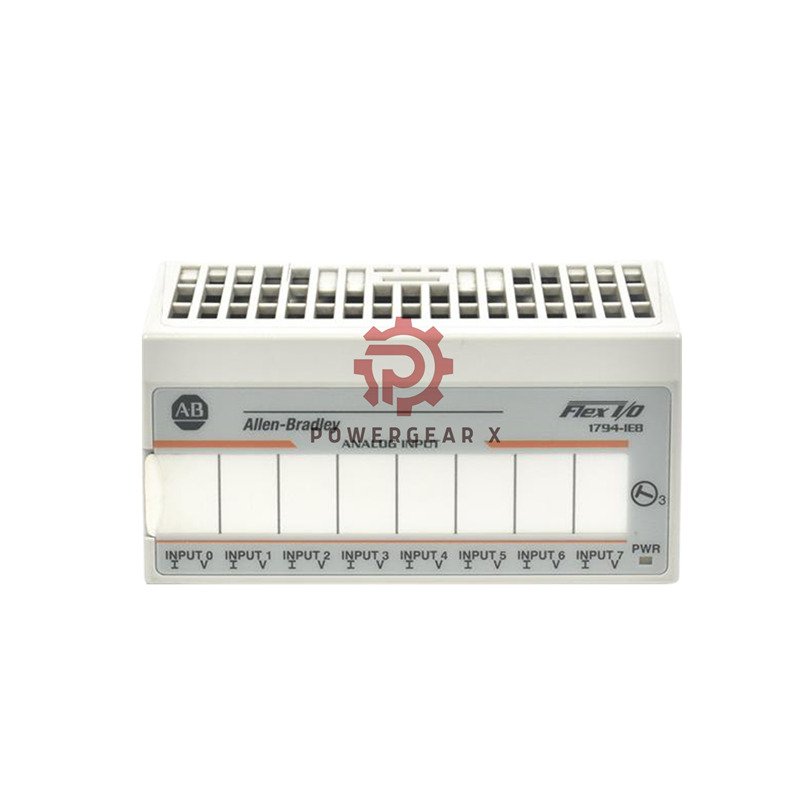

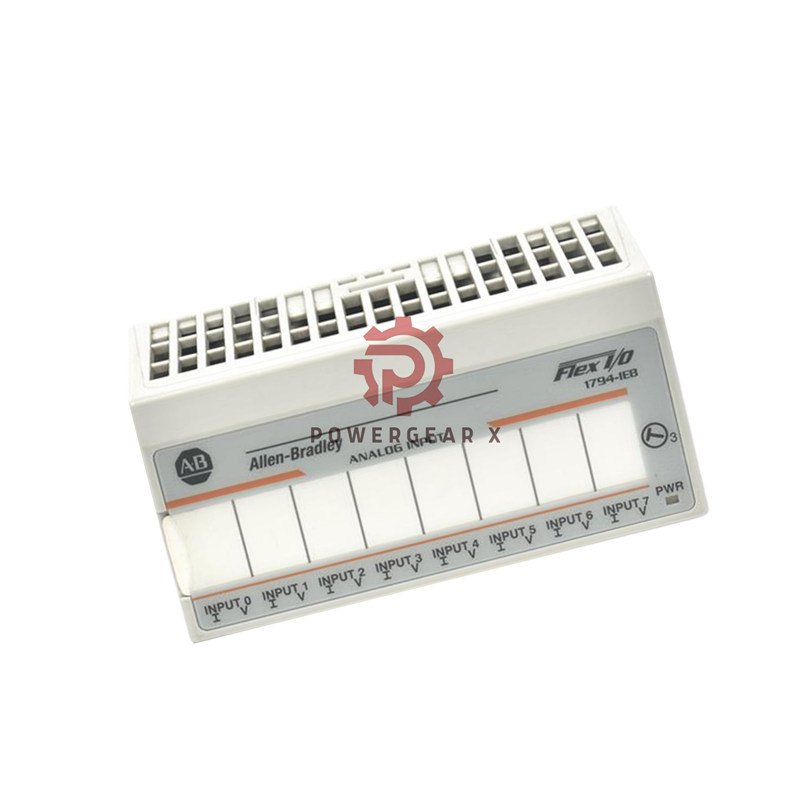

Allen-Bradley 1794-IE8 Analog Input Module

Allen-Bradley 1794-IE8 Flex I/O Analog Input Module

This powerful module brings eight analog channels to your control system. The 1794-IE8 easily handles voltage and current signals from field devices.

Complete Technical Specifications

• Brand & Model: Allen-Bradley 1794-IE8
• Input Channels: 8 single-ended
• Signal Types: 0-20mA, 4-20mA, ±10VDC, 0-10VDC
• Resolution: 12-bit (unipolar), 11-bit + sign (bipolar)
• Accuracy: 0.20% full scale at 25°C
• Conversion Rate: 256 microseconds per channel
• Power Supply: 10.5-31.2VDC (24VDC nominal)
• Isolation: 50V continuous
• Operating Temperature: 0 to 55°C (32 to 131°F)
• Full Suffix Information: 1794-IE8/B (see product label)

Environmental Durability

• Works in temperatures from 0°C to 55°C
• Handles vibration up to 5g at 10-500 Hz
• Withstands operating shock of 30g
• Works in humid environments (5-95% non-condensing)

Installation & Compatibility

• Mounts on standard DIN rail
• Works with terminal bases: 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS
• Connects to Flex I/O communication adapters
• No calibration needed – ready to use out of the box

Package Contents & Shipping

• One 1794-IE8 analog input module
• Installation documentation
• 12-month warranty
• Fast worldwide shipping via FedEx, UPS, or DHL
