Product Overview

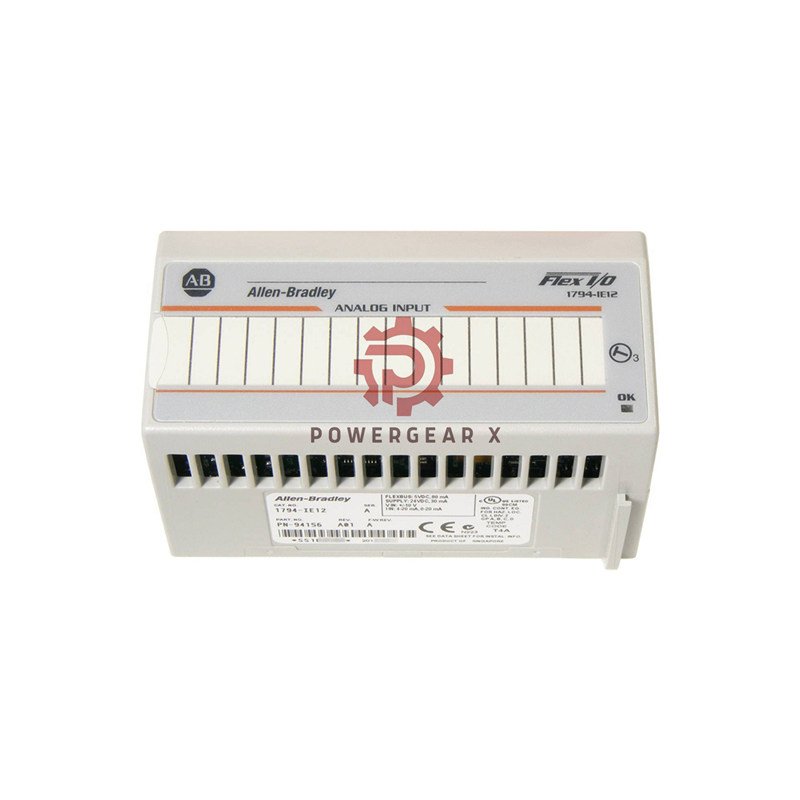

The Allen-Bradley 1794-IE12 is a high-performance analog input module from the renowned Flex I/O series by Rockwell Automation. This module delivers exceptional precision and flexibility for industrial automation applications, providing twelve configurable single-ended input channels in a compact form factor.
Technical Specifications
- Brand: Allen-Bradley/Rockwell Automation
- Model: 1794-IE12
- Input Channels: 12 single-ended
- Signal Ranges: 0-20mA, 4-20mA, ±10VDC, 0-10VDC
- Resolution: 16-bit (320 µV/count voltage, 0.641 µA/count current)
- Conversion Rate: 8.0 ms (all channels)
- Accuracy: 0.1% full scale @ 25°C
- Power Supply: 24V DC nominal (10.0-31.2V DC range)
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Isolation Voltage: 50V continuous
- Power Dissipation: 1.2W @ 31.2V DC maximum
Environmental Durability
- Robust construction for harsh industrial environments
- Vibration resistance: 5g @ 10-500 Hz
- Operating shock rating: 30g
- Wide operating temperature range: 0 to 55°C
Packaging & Shipping Information
- Product includes 1794-IE12 module only
- Secure protective packaging ensures safe delivery
- Global shipping via FedEx, UPS, or DHL available
- Terminal base sold separately (1794-TB3G or 1794-TB3GS)
Frequently Asked Questions
- What signals does the 1794-IE12 support? It accepts 0-20mA, 4-20mA, ±10VDC, and 0-10VDC input signals.
- What is the conversion time for all channels? The module scans all 12 channels in just 8.0 milliseconds.
- Which terminal bases are compatible? Use with 1794-TB3G or 1794-TB3GS terminal bases only.
- What power supply does it require? 24V DC nominal, with 10.0-31.2V DC operating range.
