Product Overview

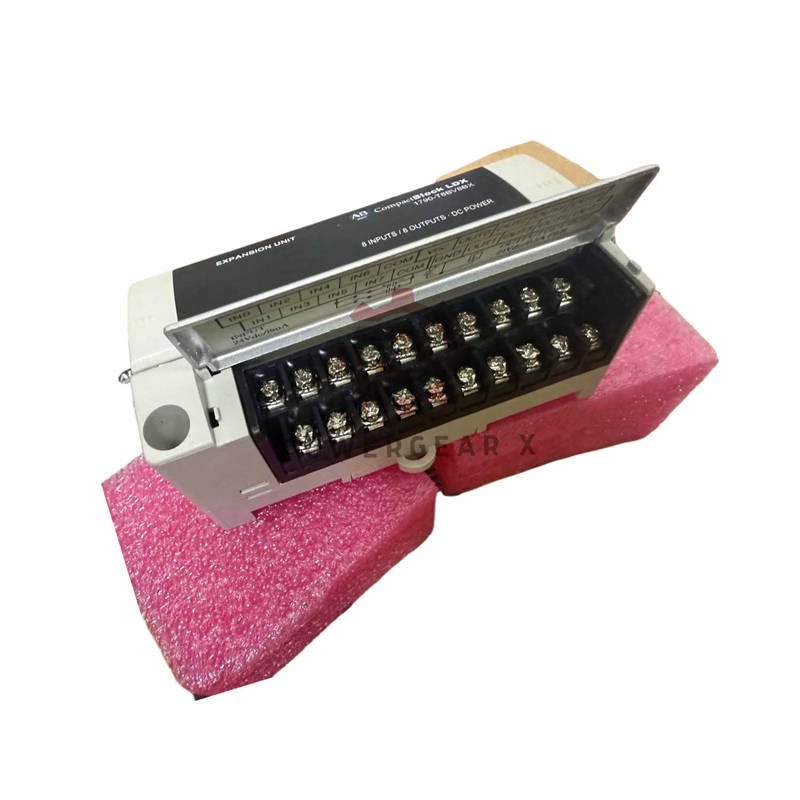

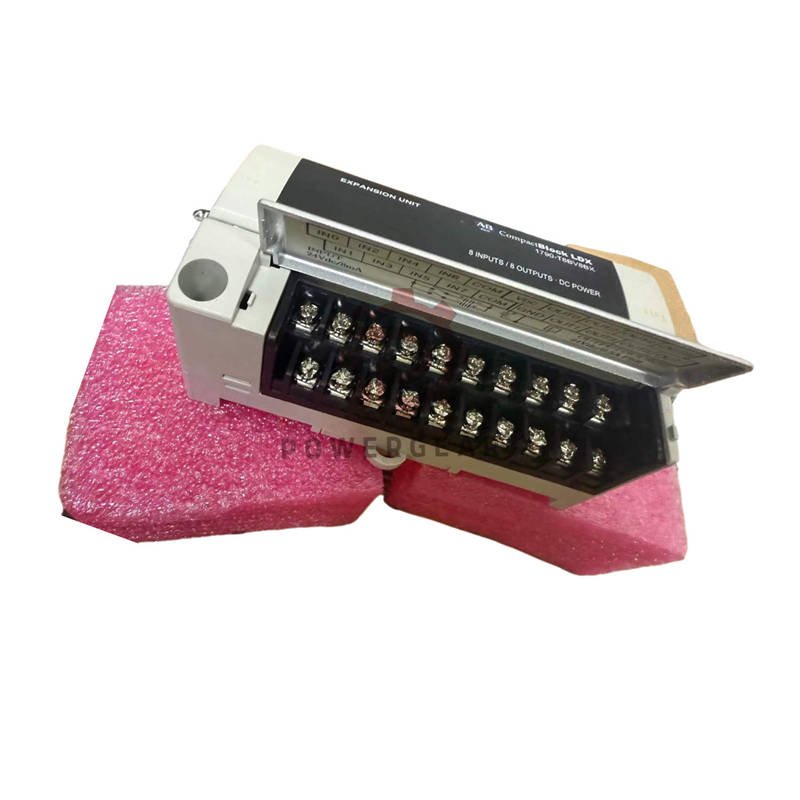

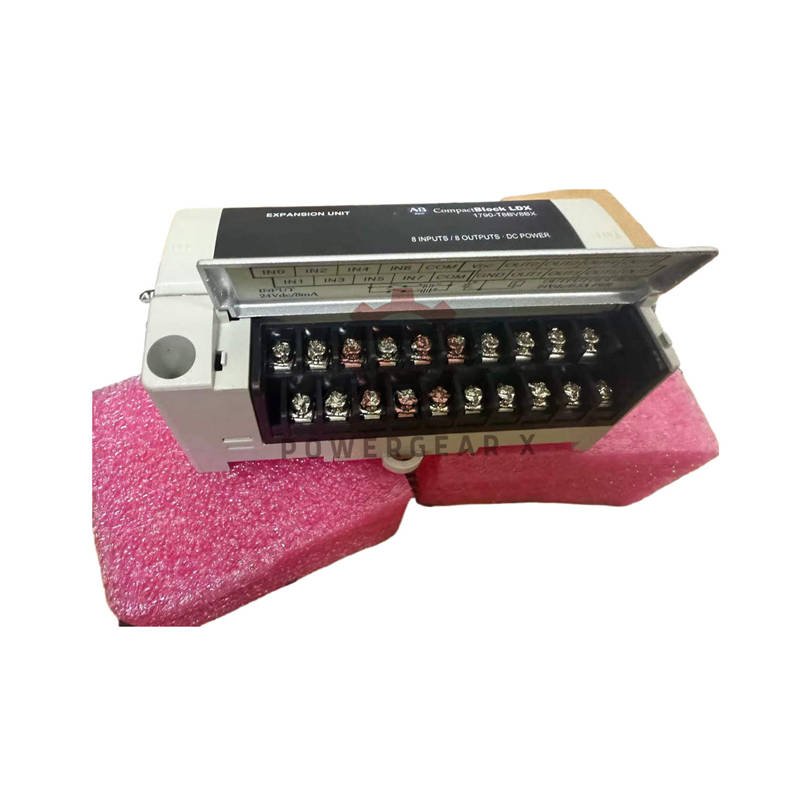

The 1790-T8BV8BX module supports 24V DC control with simple wiring and fast integration. It offers 8 inputs and 8 outputs for compact automation use. Clear LED indicators show status during operation. Powergear X Automation supplies this unit worldwide. Contact: sales@powergearx.com or +86 18030005825
Key Specifications
- Brand: Allen Bradley | Model: 1790-T8BV8BX
- Series: CompactBlock LDX digital expansion
- Input Voltage: 24V DC (9.6–28.8V)
- Output Voltage: 24V DC (10–28.8V)
- 8 universal inputs and 8 sourcing outputs
- 0.5A per output channel, 4A per common
- 8mA input current, 0.5mA leakage max
- 1250V AC RMS photocoupler isolation
- DeviceNet nonisolated communication
- D-shell connector and M3 terminal block
Performance Details
- 24V DC architecture supports clean integration.
- LED indicators deliver quick status checks.
- Stable performance near standard electrical noise.
- Suitable for conveyors, panel systems, and machine cells.
Installation Notes
- Install in a rated control enclosure.
- Use copper conductors. Apply 7 lb-in torque.
- Follow 8COM output grouping to avoid wiring errors.
- Confirm DeviceNet power before startup.
Packing List
- 1 x Allen Bradley 1790-T8BV8BX
- 1 x D-shell interface connector
- 1 x M3 terminal block
- 1 x Quick setup sheet
Logistics
- Shipping by FedEx, UPS, or DHL.
- Export-safe industrial packaging.
- Tracking code on dispatch.
FAQ
How do I use higher loads?
Use interposing relays to support higher current devices.
Can mixed sensors run on inputs?
Yes. Confirm signal type and polarity before wiring.
How do I reduce interference?
Separate signal and motor cables. Add ferrite rings if needed.
What helps during commissioning?
Check LED indicators and controller diagnostics.
What about network expansion?
Review bus distance and DeviceNet power before adding nodes.
