Allen-Bradley 1785-L80C PLC-5 Controller – High-Speed ControlNet Processor

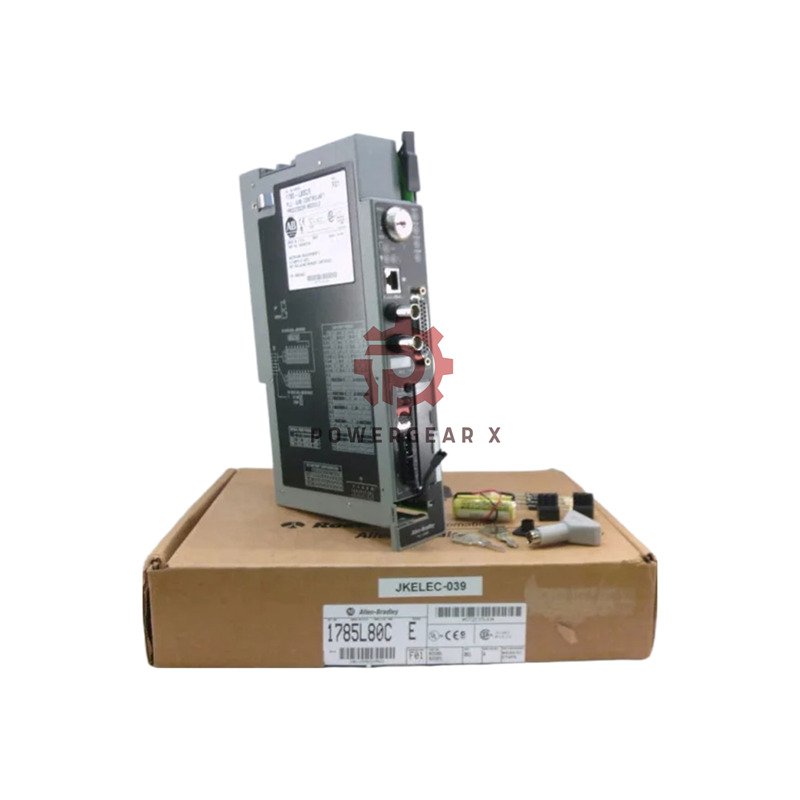

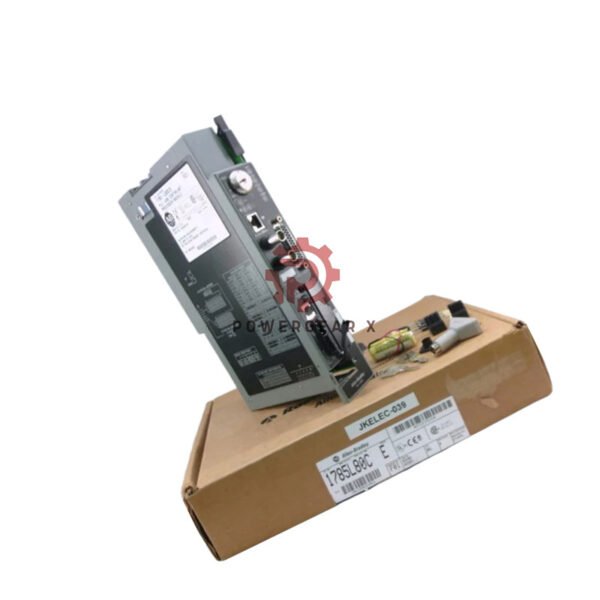

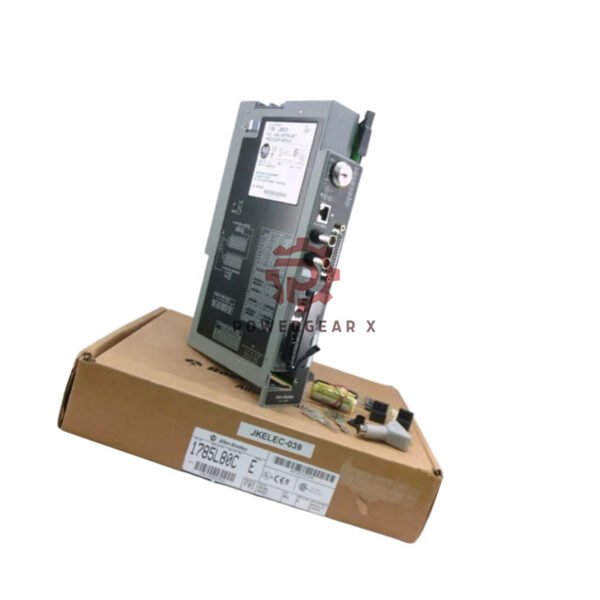

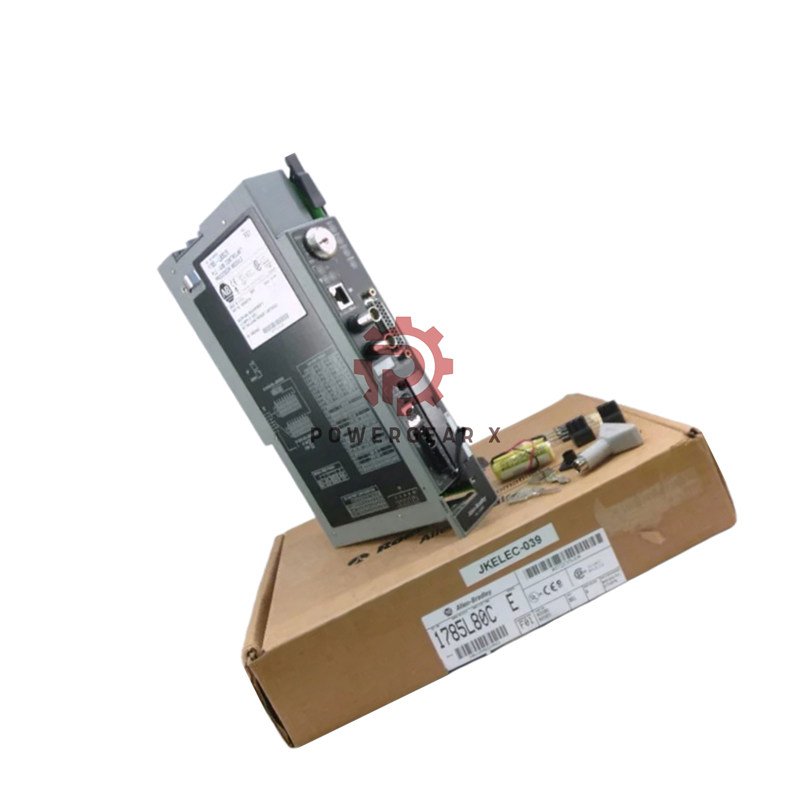

⚡ Allen-Bradley 1785-L80C PLC-5/80C ControlNet Programmable Controller

The Allen-Bradley 1785-L80C delivers high-speed control for complex automation systems. This powerful 1785-L80C processor uses ControlNet for fast and reliable machine communication.

📊 Detailed Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1785-L80C (PLC-5/80C)
• Series: PLC-5
• Memory Size: 100K Words (Battery-Backed)
• Max I/O Capacity: 6144 Points Total
• ControlNet Port: RJ-45, 5 Mbps data rate
• Network Update Time: 2ms to 100ms (Selectable)
• DH+ / RIO Ports: 57.6K to 230.4K bits/s
• Serial Port: RS-232 / RS-422 / RS-423
• Power Consumption: 3.3A @ 5V DC
• Operating Temperature: 0°C to 60°C (32°F – 140°F)
• Vibration Resistance: 2G @ 10-500 Hz
• Shock Resistance: 30G Operational
• Weight: 3.0 lbs (1.36 kg)
• Certifications: UL, CE, CSA, C-TICK

📦 What’s Included & Shipping

• 1 x 1785-L80C ControlNet Processor
• 1 x Quick Installation Guide
• 🛡️ 12 Months Warranty
• 🚚 Fast Global Shipping via FedEx, UPS, DHL

🛠️ Installation & Compatibility

• Mounts in 1771 I/O chassis (A1B, A2B, A3B, A4B series)
• Compatible with 8-point, 16-point, 32-point I/O modules
• Uses 2-slot, 1-slot, or ½-slot addressing modes
• Supports hot backup cartridge (1785-CHBM)
• Backup memory options: 1785-ME32, ME64, M100

❓ Frequently Asked Questions

• How fast is the ControlNet network?
  It runs at 5 megabits per second for quick data exchange.
• Can I use this PLC with existing I/O modules?
  Yes, it works with standard 1771 I/O modules.
• What backup options are available?
  You can use battery or EEPROM modules for program backup.
• How many devices can connect to ControlNet?
  Up to 99 nodes with repeaters on the network.
• Is the 1785-L80C suitable for high-vibration areas?
  Yes, it handles 2G vibration and 30G shock.
