Allen-Bradley 1771-HD Handheld Teach Pendant for PLC 5 Systems

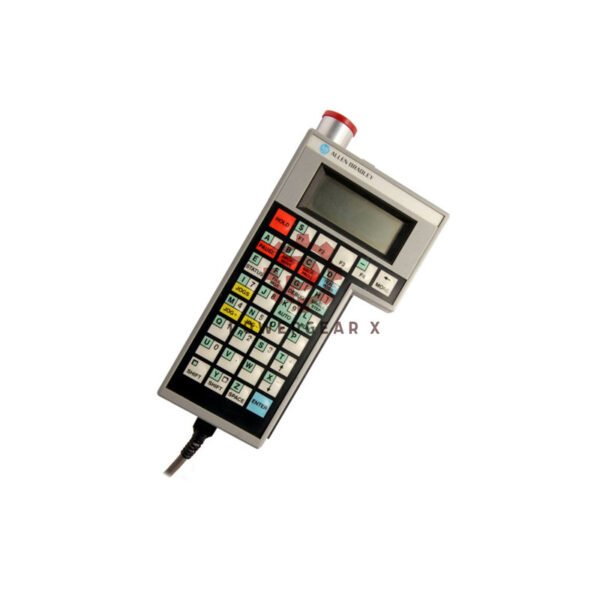

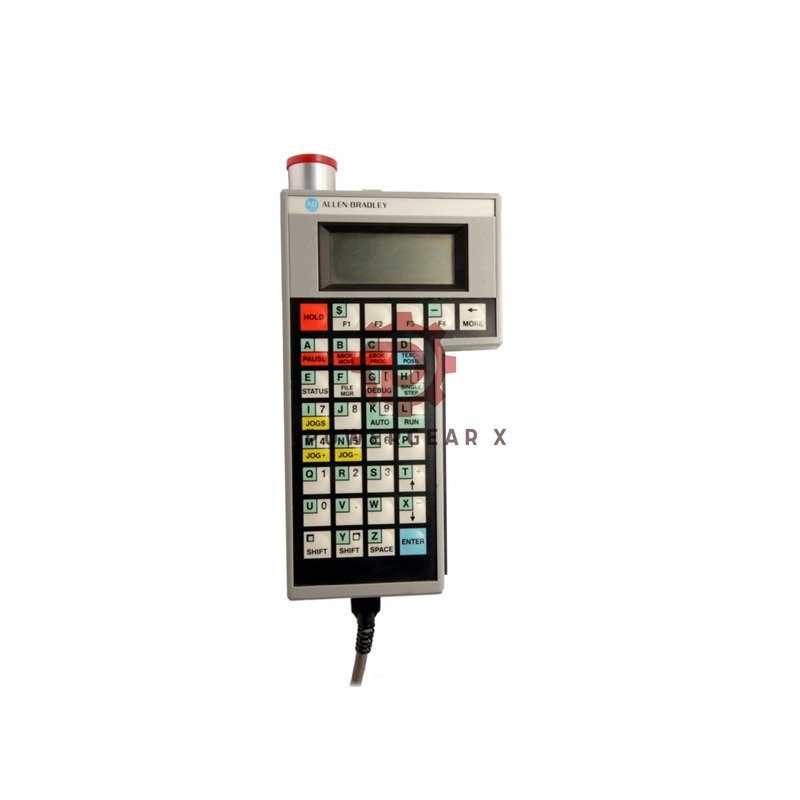

Allen-Bradley 1771-HD Handheld Teach Pendant

The 1771-HD provides convenient remote programming capability for PLC 5 control systems. This handheld terminal offers flexible access to system parameters and variables.

Technical Specifications

• Brand/Manufacturer: Allen-Bradley/Rockwell Automation
• Model: 1771-HD
• Product Type: Handheld Teach Pendant
• Display: 4-line x 16-character LCD screen
• Cable Length: 25 feet (8 meters)
• Connector: 9-pin D-shell RS-232
• Operating Temperature: 0° to 60°C (32° to 140°F)
• Power Requirements: 120V AC or 240V AC
• Humidity Range: 5-95% non-condensing
• Dimensions: 3.5 x 6.5 x 2.0 in (89 x 165 x 51 mm)

Package Contents

• Allen-Bradley 1771-HD handheld terminal unit
• 25-foot (8m) RS-232 connection cable
• Power connection cable (1771-CAS)
• User manual and installation guide

Shipping & Warranty

• Shipping carriers: FedEx, UPS, DHL
• Standard expedited shipping available
• 12-month warranty

FAQ

• What controllers is the 1771-HD compatible with?
• It works with PLC 5 controller systems and IMC 120 motion controllers.
• How many menu options does the pendant offer?
• It provides five selectable menus: Jogs, Status, Debug, File Manager, and Teach Position.
• What type of cable does this terminal use?
• It uses a 25-foot RS-232 cable with 9-pin D-shell connectors.
• Can I use the 1771-HD in harsh environments?
• Yes, it operates in industrial environments within specified temperature and humidity ranges.
• How do I power the handheld terminal?
• Use the 1771-CAS connector cable with either 120V or 240V AC power sources.
