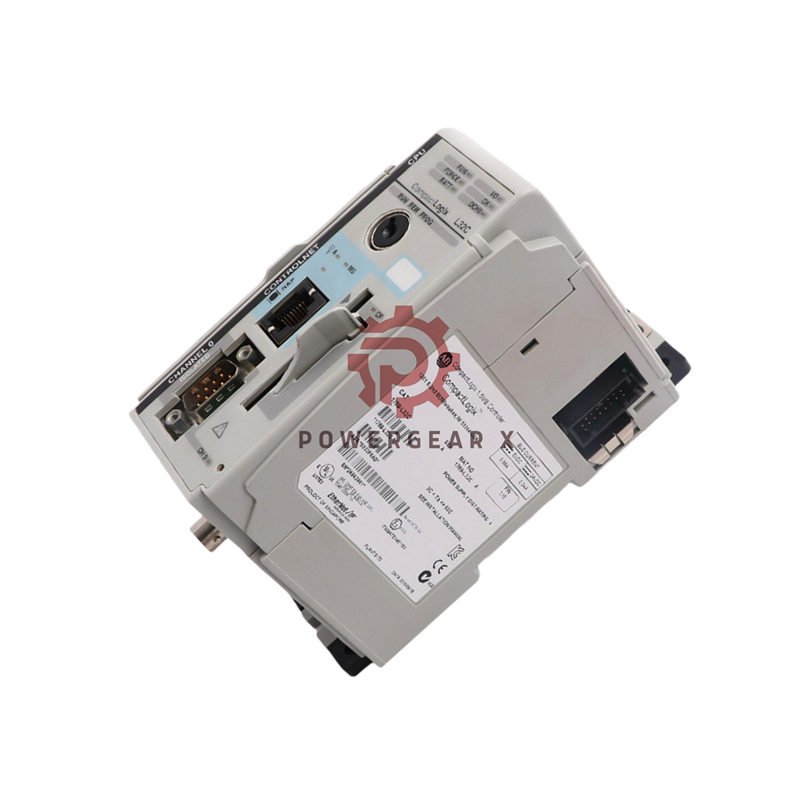

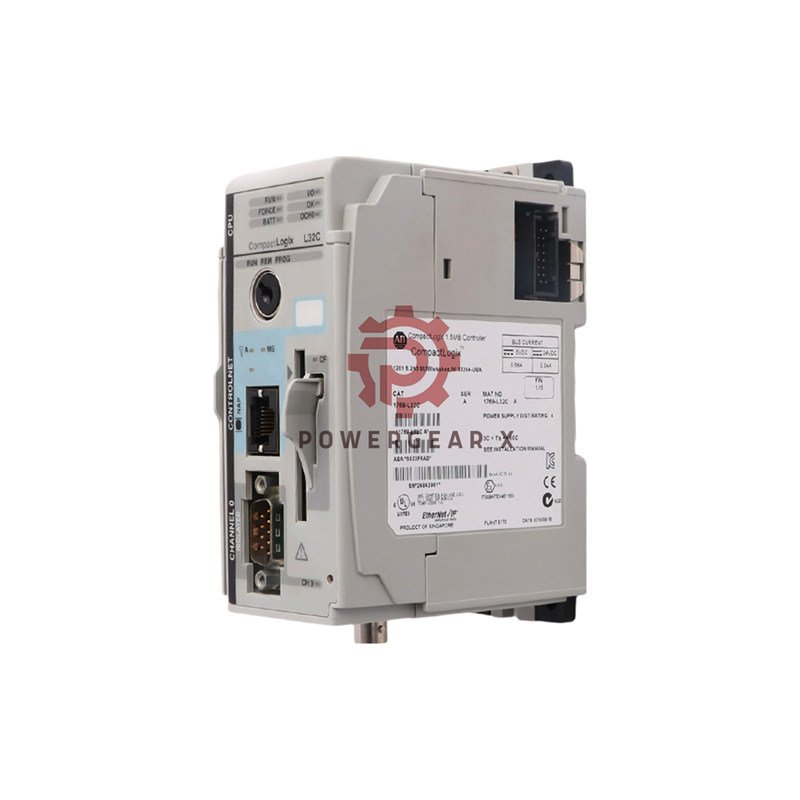

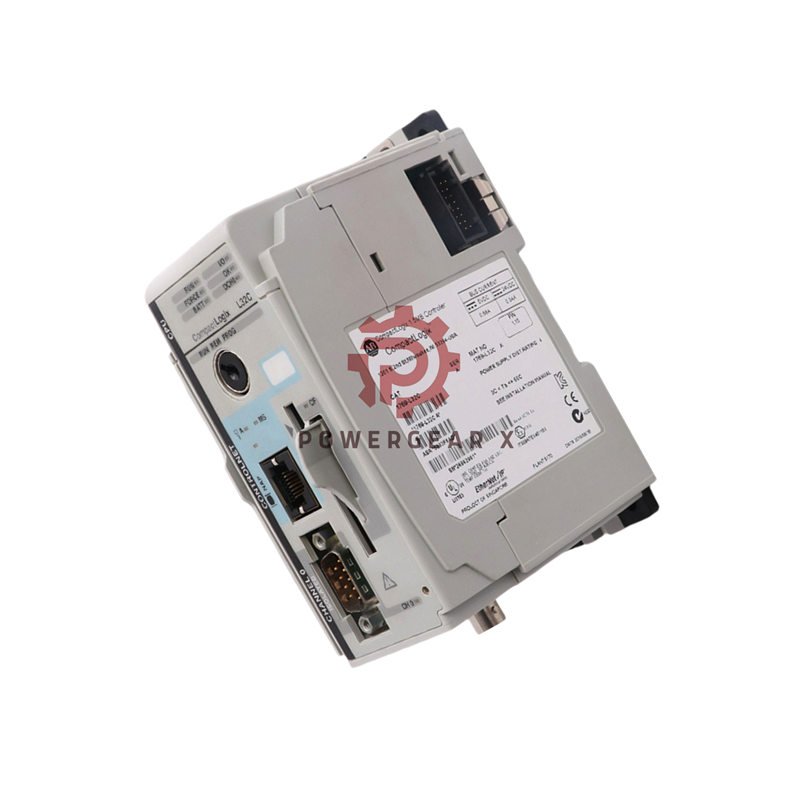

Allen-Bradley 1769-L32C: CompactLogix ControlNet Processor
The Allen-Bradley 1769-L32C is a powerful CompactLogix controller with ControlNet capability. This modular processor offers reliable control for industrial automation applications. It features robust communication ports and substantial memory for complex operations.
Technical Specifications
- Brand & Model: Allen-Brady 1769-L32C
- Memory Capacity: 750KB user memory
- I/O Capacity: 16 modules maximum
- Communication Ports: RS-232, NAP, ControlNet Channel A
- Backplane Current: 650mA @ 5V DC, 40mA @ 24V DC
- Power Dissipation: 4.21 Watts maximum
- Battery Type: 1769-BA replacement battery
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Shock Resistance: 20g (DIN rail), 30g (panel mount)
- Humidity Rating: 5-95% non-condensing
- Weight: 0.32kg (0.7lbs)
- Connection Support: 100 simultaneous connections
Installation & Compatibility
- Compatible with 1769 Compact I/O module family
- Supports up to 3 I/O banks with expansion cables
- DIN rail or panel mounting options available
- Maintain proper clearance for ventilation
- Use recommended 1769-BA battery for replacement
- Follow EMC guidelines for industrial installations
Package Contents
- 1769-L32C ControlNet Processor Module
- Installation documentation
- 12-month manufacturer warranty
- Shipped via FedEx, UPS, or DHL
Frequently Asked Questions
- What communication protocols are supported?
ControlNet, RS-232, and NAP protocols - How many I/O modules can it support?
Up to 16 I/O modules in maximum 3 banks - What battery does it use?
Requires 1769-BA replacement battery - Can it operate in harsh environments?
Yes, designed for industrial applications - What is the memory capacity?
750KB user memory for program storage
