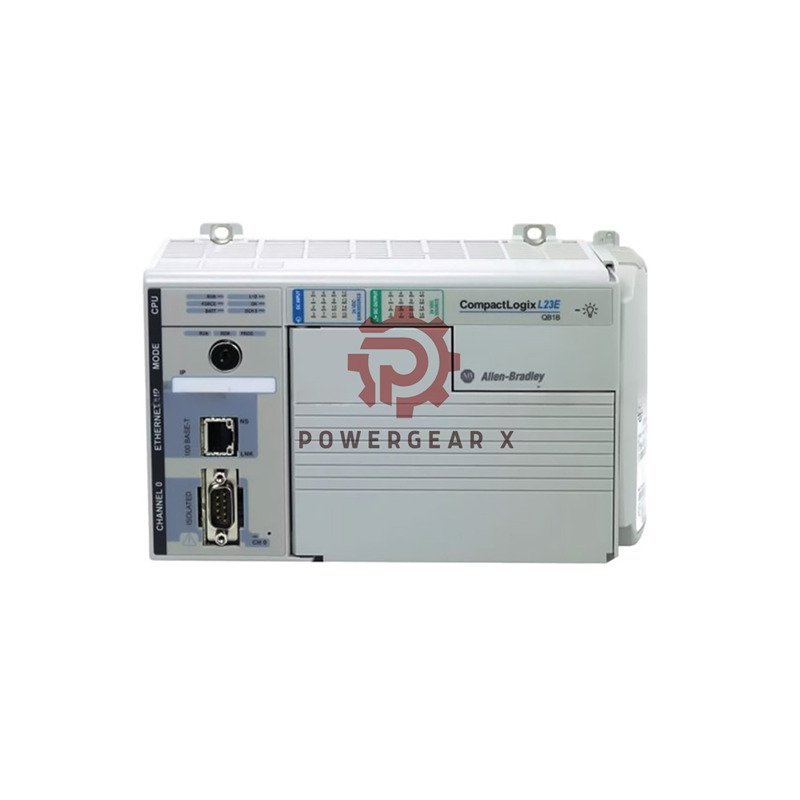

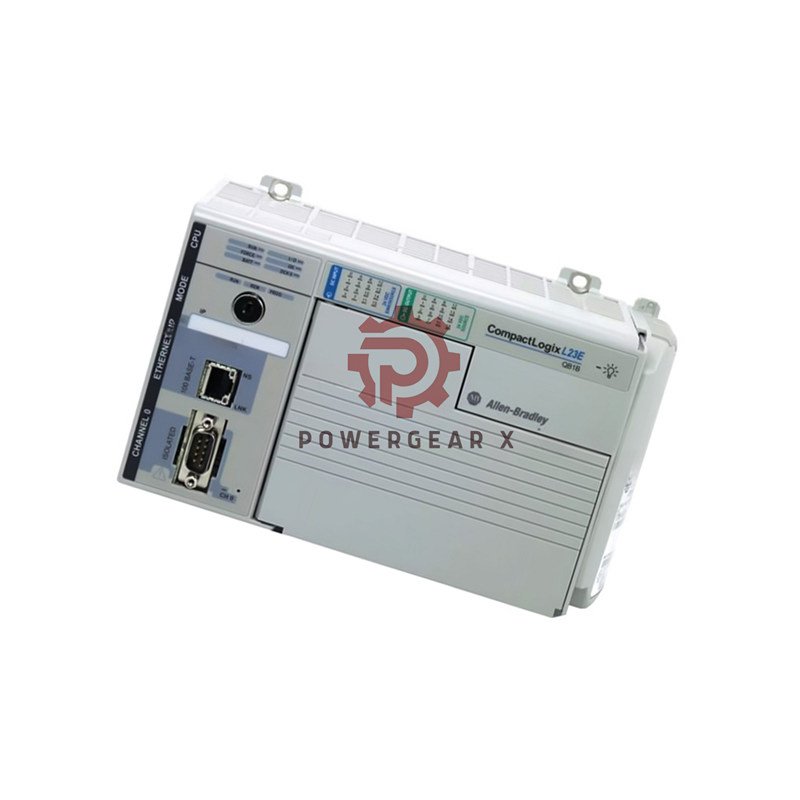

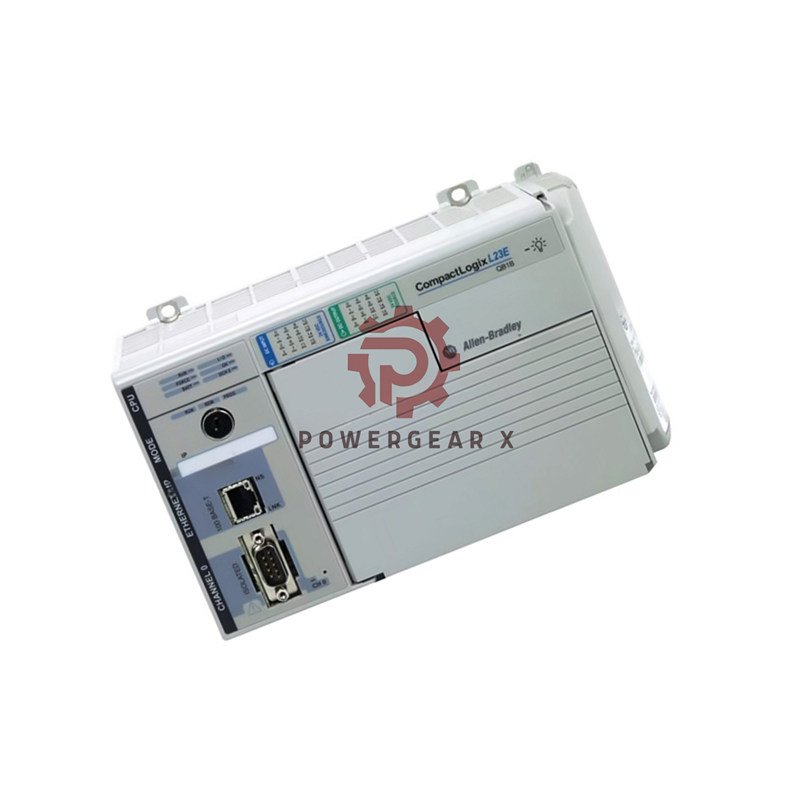

Meet the Allen-Bradley 1769-L23E-QBFC1B: Your All-in-One Machine Controller

The Allen-Bradley 1769-L23E-QBFC1B is a powerful, ready-to-run CompactLogix controller. It is perfect for small to mid-size machines. This unit combines a processor, power supply, and embedded I/O in one compact package. It simplifies your control system design and saves panel space.

Detailed Technical Specifications

• Brand & Model: Allen-Bradley 1769-L23E-QBFC1B
• Controller Type: CompactLogix Packaged Programmable Automation Controller (PAC)
• Embedded Digital I/O: 16 Inputs @ 24V DC, 16 Outputs @ 24V DC
• Embedded Analog I/O: 4 Inputs, 2 Outputs
• High-Speed Counters: 4 available
• User Memory: 512 KB
• Ethernet Port: 1 x 10/100 Mbps (TCP/IP, CIP)
• Serial Port: 1 x RS-232 (Supports DF1, ASCII protocols)
• Power Supply: 24V DC
• Operating Temperature: 0 to 60 °C (32 to 140 °F)

Package & Delivery Info

• You will receive one (1) 1769-L23E-QBFC1B controller unit.
• This product includes a standard 12-month warranty.
• We ship worldwide using reliable carriers: FedEx, UPS, and DHL.

Common Questions (FAQ)

• Q: Can I connect a barcode reader to this controller?
  A: Yes, you can use the serial port set to ASCII protocol to connect a barcode reader.
• Q: How do I set the IP address for the Ethernet port?
  A: You can set it using the BOOTP-DHCP utility from Rockwell Automation.
• Q: What is the maximum baud rate for the serial port?
  A: The RS-232 port supports data rates up to 38.4 kbps.
• Q: Does the memory need a battery?
  A: Yes, it uses a 1769-BA lithium battery to maintain memory when power is off.
• Q: Can I use this with DeviceNet networks?
  A: Yes, but you will need to add a separate 1769-SDN scanner module.
