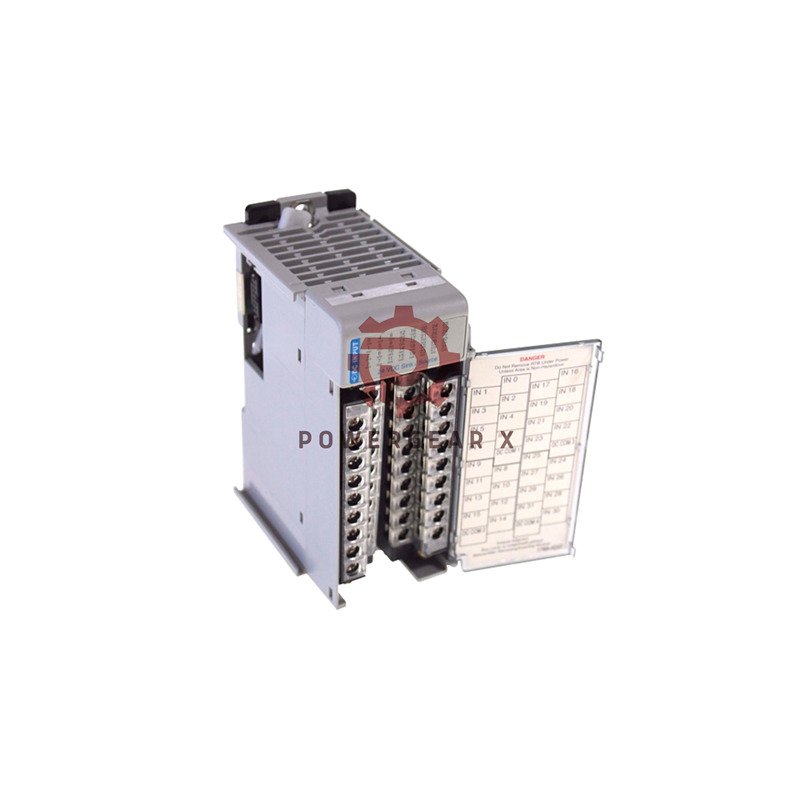

Allen-Bradley 1769-IQ32: High-Density 32-Channel DC Input Module
The 1769-IQ32 delivers maximum input capacity in minimal space. This compact module provides thirty-two 24V DC inputs for your control system. It works perfectly with CompactLogix and MicroLogix platforms. The 1769-IQ32 offers excellent flexibility with four isolated input groups.
Technical Specifications
- Manufacturer: Allen-Bradley/Rockwell Automation
- Part Number: 1769-IQ32 Series A/B
- Input Channels: 32 DC inputs (24V)
- Input Groups: 4 isolated groups (8 inputs each)
- Voltage Range: 10-30V DC operating range
- Response Time: 8ms on/off delay
- Isolation Rating: 75V DC (1697V test voltage)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Wire Size: 22-14 AWG solid, 22-16 AWG stranded
- Altitude Rating: 2000 meters maximum
Compatibility Information
- CompactLogix controllers and control systems
- MicroLogix 1500 platform and base units
- 1769-ADN DeviceNet network adapters
- 1769-AENTR Ethernet/IP network adapters
- 1769 series power supplies and accessories
Installation & Wiring
- Maximum 8-module distance from power supply
- Copper wire required (90°C rating)
- Panel mount or DIN rail installation options
- Replacement terminal block: 1769-RTBN18
- Follow Allen-Bradley installation guidelines
Shipping & Support
- Global shipping via FedEx, UPS, and DHL
- Package weight: 2 lbs (0.9 kg)
- Package dimensions: 8x8x5 inches
- 12-month warranty included
- Technical support available
Frequently Asked Questions
- Q: How many input groups does this module have?
A: It has four separate groups with eight inputs each. - Q: What controllers support the 1769-IQ32?
A: It works with CompactLogix and MicroLogix 1500 systems. - Q: What is the maximum operating temperature?
A: It operates reliably from 0°C to 60°C (32°F to 140°F). - Q: Can I use both sinking and sourcing devices?
A: Yes, the module supports both types simultaneously. - Q: What safety certifications does it have?
A: It carries c-UL and CE certifications for safety.
