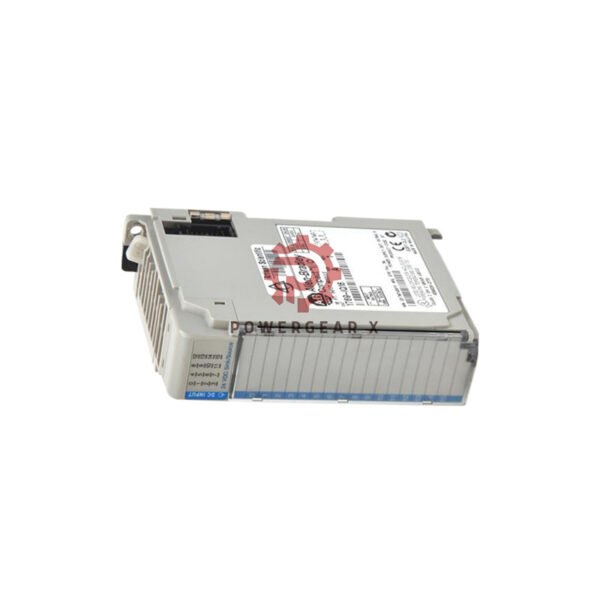

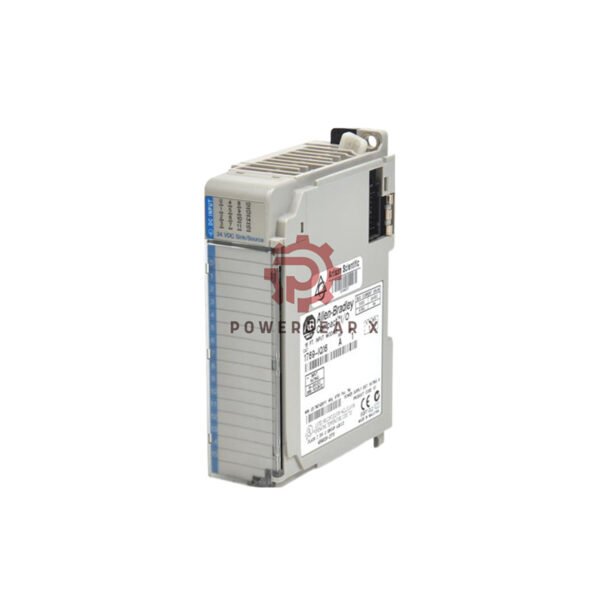

Allen-Bradley 1769-IQ16: 16-Channel DC Input Module
The 1769-IQ16 from Allen-Bradley gives you sixteen 24V DC inputs in one compact module. It works with CompactLogix and MicroLogix 1500 systems. This module handles both sinking and sourcing inputs for maximum flexibility. You get reliable performance in industrial environments with easy installation.
Technical Specifications
- Part Number: 1769-IQ16 Series A/B
- Input Channels: 16 DC inputs
- Voltage Range: 10-30V DC (30°C), 10-26.4V DC (60°C)
- On-State Voltage: 10V DC minimum
- Off-State Voltage: 5V DC maximum
- Input Delay: 8 milliseconds typical
- Isolation Voltage: 75V DC (tested at 1697V DC for 1 second)
- Power Consumption: 3.55W maximum
- Wire Size: 22-14 AWG solid, 22-16 AWG stranded
- Operating Temperature: 0 to 60°C (32 to 140°F)
Compatible Equipment
- 1769 CompactLogix controllers and chassis
- MicroLogix 1500 base units
- Power Supplies: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
- Replacement Terminal Block: 1769-RTBN18
Shipping & Warranty
- Shipping via FedEx, UPS, or DHL worldwide
- Package weight: 2 lbs (0.9 kg)
- Package dimensions: 8 x 8 x 5 inches
- 12-month warranty included
Frequently Asked Questions
- Q: Can I mix sinking and sourcing devices on one module?
A: Yes, the 1769-IQ16 supports both types on the same module. - Q: What is the maximum wire size I can use?
A: You can use 22-14 AWG solid or 22-16 AWG stranded copper wire. - Q: How many input groups does this module have?
A: It has two isolated groups of eight inputs each. - Q: What controllers work with this input module?
A: It works with CompactLogix and MicroLogix 1500 controllers. - Q: What is the input response time?
A: The typical input delay is 8 milliseconds for both on and off states.
