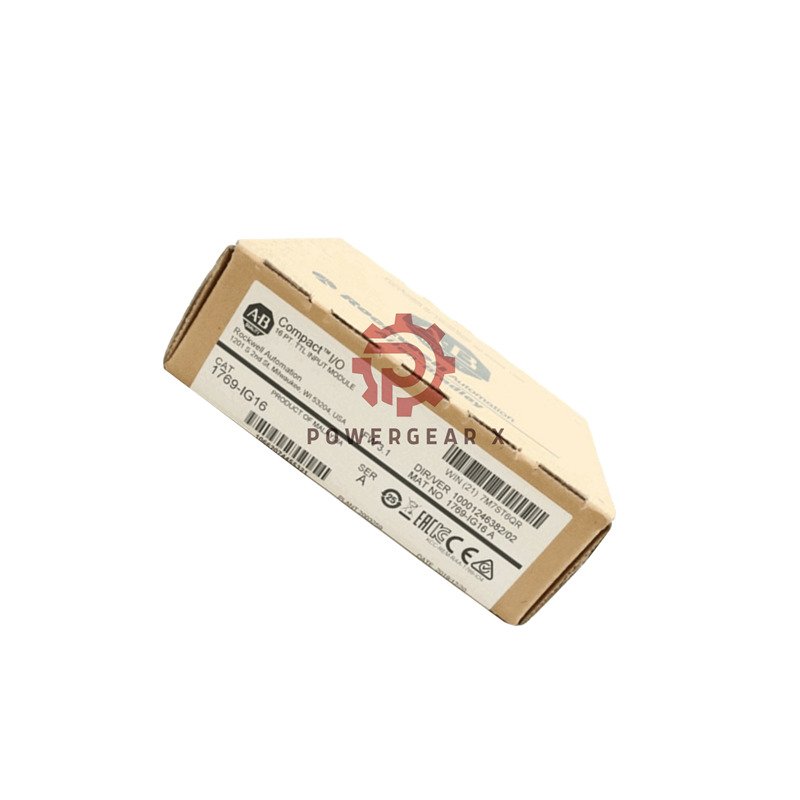

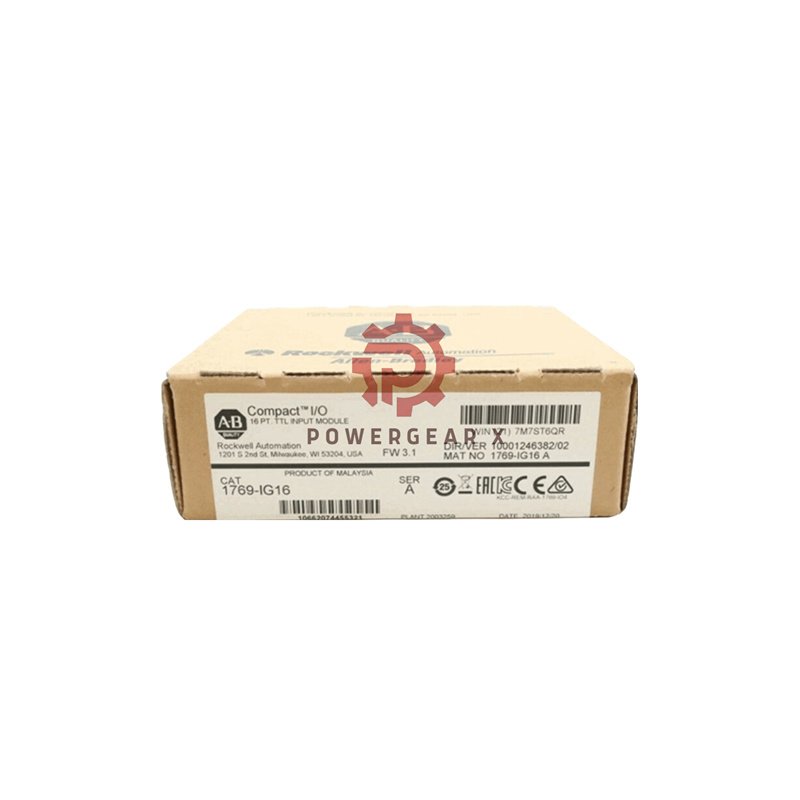

Allen-Bradley 1769-IG16 16-Point TTL Input Module

Allen-Bradley 1769-IG16 16-Point TTL Input Module

The 1769-IG16 is a compact TTL input module from Allen-Bradley. It provides sixteen digital input points for 5V DC signals. This module works perfectly with CompactLogix control systems. It is ideal for high-speed digital applications in industrial automation.

Complete Technical Specifications

• Input Points: 16 current-sourcing TTL inputs
• Operating Voltage: 4.5-5.5V DC
• Ripple Voltage: 50mV peak-to-peak maximum
• Input Delay: 8 milliseconds standard
• Filter Times: 0, 100μs, 500μs, 1ms, 2ms, 4ms, 8ms
• Power Consumption: 120mA at 5.1V DC
• Heat Dissipation: 1.6W during operation
• Isolation Voltage: 75V DC reinforced insulation
• Altitude Rating: 2000 meters without derating
• Shock Resistance: 30G operational rating
• Vibration Resistance: 5G at 10-500Hz
• Terminal Block: 1769-RTBN18 replacement
• Wire Size: 22-14 AWG copper wire

Shipping & Support Details

• Worldwide shipping via FedEx, UPS, DHL
• Express delivery options available
• Full tracking information provided
• 12-month manufacturer warranty
• Technical support included

Frequently Asked Questions

• What types of signals can this module accept?
  The 1769-IG16 accepts TTL-level digital signals from 4.5-5.5V DC sources.
• Can I adjust the input response time?
  Yes, seven selectable filter times from 0 to 8ms are available.
• What is the maximum operating altitude?
  This module operates at up to 2000 meters without performance loss.
• Does this module require special wiring?
  It uses standard 22-14 AWG copper wire at 90°C rating.
• Is this module compatible with all CompactLogix systems?
  Yes, the 1769-IG16 works with all CompactLogix controllers.
