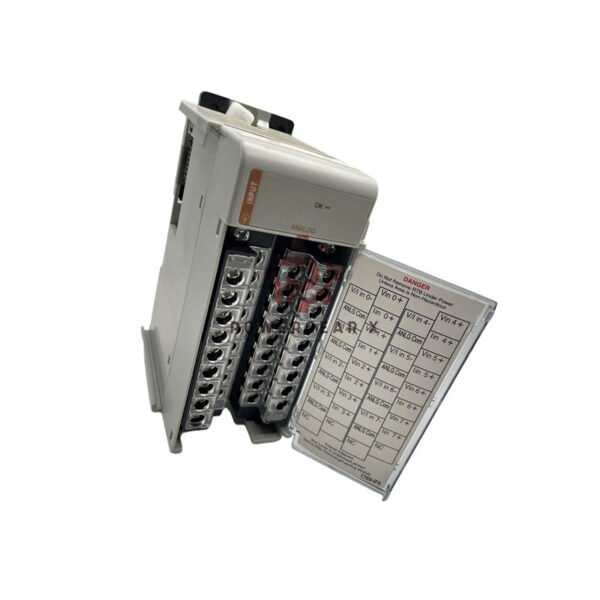

Allen-Bradley 1769-IF8 CompactLogix 8-Channel Analog Input Module

The 1769-IF8 provides eight analog input channels for industrial automation systems. This CompactLogix module handles both voltage and current signals with high precision. It connects directly to Allen-Bradley controllers for seamless data acquisition.

Key Specifications

• Input Channels: 8 configurable analog inputs
• Voltage Ranges: ±10V DC, 0-10V DC, 0-5V DC, 1-5V DC
• Current Ranges: 0-20 mA, 4-20 mA standard industrial signals
• Resolution: 16-bit for precise measurement accuracy
• Update Rate: Filter-dependent channel response speed
• Input Impedance: 220 kΩ (voltage), 250 Ω (current)
• Accuracy: ±0.2% for voltage, ±0.35% for current signals
• Isolation: Channel-to-channel and channel-to-backplane isolation
• Power Consumption: 120 mA @ 5V DC, 70 mA @ 24V DC
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Dimensions: 118 x 87 x 52.5 mm (4.65 x 3.43 x 2.07 in)
• Weight: 450 grams (0.99 pounds)

Package Includes

• One 1769-IF8 analog input module
• Product documentation and specifications
• Installation guide

Support & Services

• Warranty: 12 months full warranty
• Shipping: Worldwide via FedEx, UPS, DHL
• Delivery: Fast international shipping options
