Product details

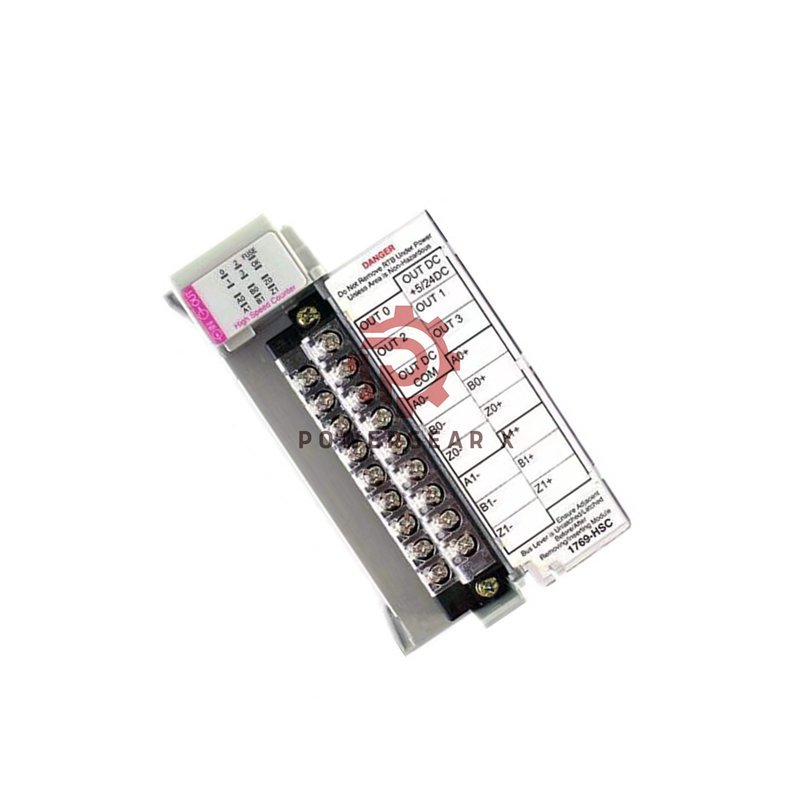

Allen-Bradley 1769-HSC High-Speed Counter Module
The 1769-HSC is a fast counter module from Allen-Bradley. It works with CompactLogix and MicroLogix 1500 controllers. This module is perfect for counting, positioning, and speed control tasks. It reads signals from encoders and sensors very quickly.
Key Technical Details
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-HSC
- Input Type: 2 quadrature differential (ABZ)
- Max Input Frequency: 1 MHz
- Number of Outputs: 4 physical + 12 virtual
- Output Current: 1 A per point, 4 A total
- Voltage Range: 5-30V DC
- Bus Current: 425 mA @ 5V DC
- Isolation Voltage: 75V continuous
- Operating Temperature: 0 to 60°C
- Wire Size: 22-14 AWG solid or 22-16 AWG stranded
- Weight: 130 g (0.286 lb)
- Dimensions: 118 x 35 x 87 mm
Installation Notes
- Place within 4 modules of the power supply
- Use shielded twisted-pair cable for best performance
- Do not remove or install while power is on
- Keep operating temperature between 0°C and 60°C
What’s in the Box?
- 1769-HSC High-Speed Counter Module
- Installation guide and documentation
- Shipped via FedEx, UPS, or DHL
- 12-month product warranty
Common Questions
- What controllers work with the 1769-HSC? It works with CompactLogix and MicroLogix 1500 systems.
- What is the maximum count speed? It can count up to 1,000,000 pulses per second.
- Can I use it with any encoder? Yes, it works with most ABZ quadrature encoders.
- How many outputs does it have? It has 4 real outputs and 12 software outputs.
- What cables should I use? Use shielded twisted-pair wires for noise protection.
