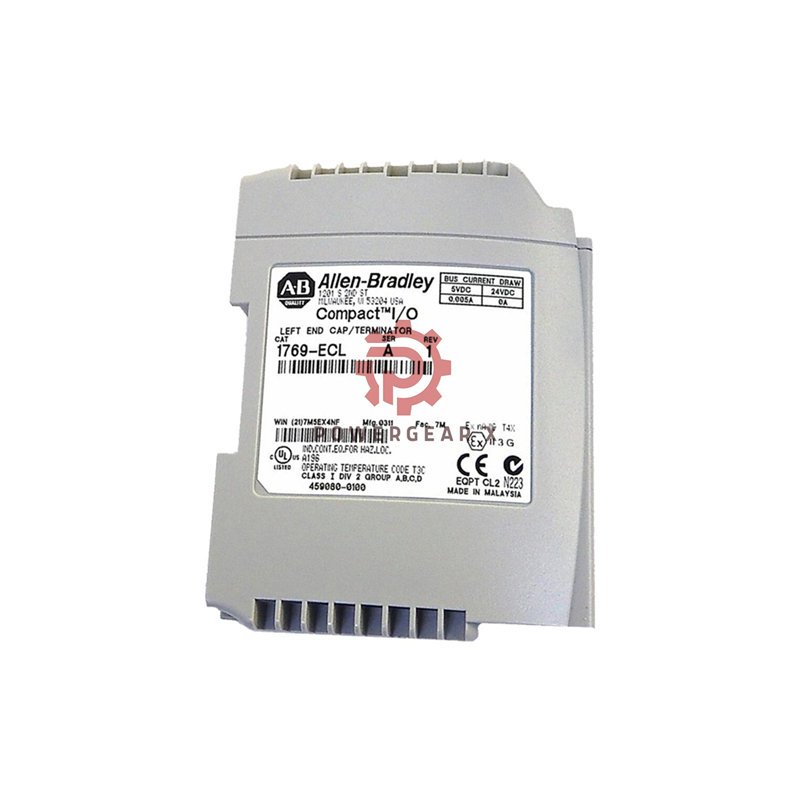

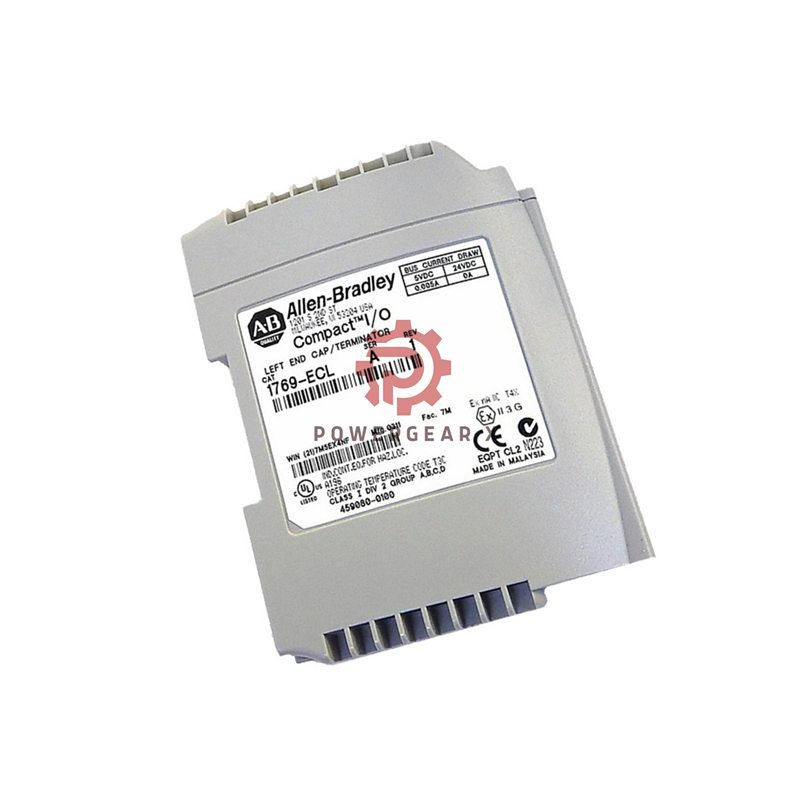

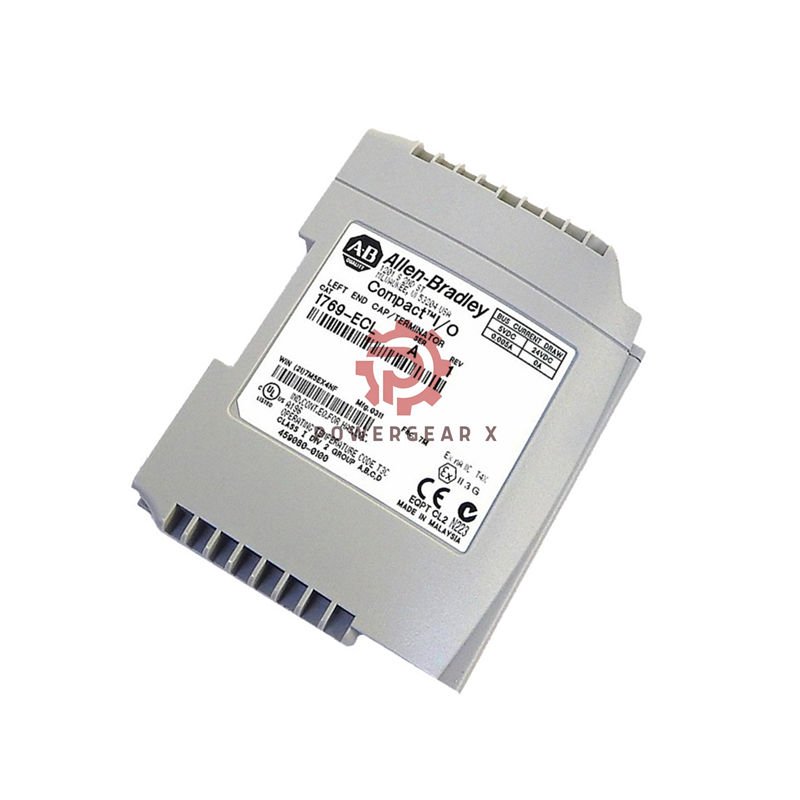

Allen-Bradley 1769-ECL Left End Cap/Terminator

The 1769-ECL is a left end cap from Allen-Bradley’s CompactLogix series. It terminates the communication bus on compatible controllers like CompactLogix and MicroLogix 1500. This component ensures system stability and protects against electrical interference.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model: 1769-ECL
• Series: A and B
• Type: Left End Cap / Terminator
• Backplane Current: 1.4 A at 24V DC
• Max Bus Current: 5 mA at 5V DC
• Power Consumption: 33.6 Watts
• Power Dissipation: 7.5 Watts
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Enclosure Type: Open Style

Environmental Durability

• Operating Altitude: Up to 6562 ft
• Vibration Resistance: 5g at 10–500 Hz
• Operating Shock: 20g (DIN rail or panel mount)
• Immunity: ESD 8 kV air discharge, Group 1 Class A emissions
• Relative Humidity: 5% to 95% noncondensing

Packaging & Shipping

• Shipping Weight: 0.286 lbs
• Box Dimensions: 8 x 8 x 5 inches
• Includes: One 1769-ECL end cap terminator
• Shipping Carriers: FedEx, UPS, DHL

FAQ

• Is the 1769-ECL compatible with MicroLogix 1500? Yes, it works with MicroLogix 1500 and CompactLogix systems.
• What is the operating temperature range? It works from 32°F to 140°F.
• How is the end cap mounted? It installs easily on the left end of the 1769 bus.
