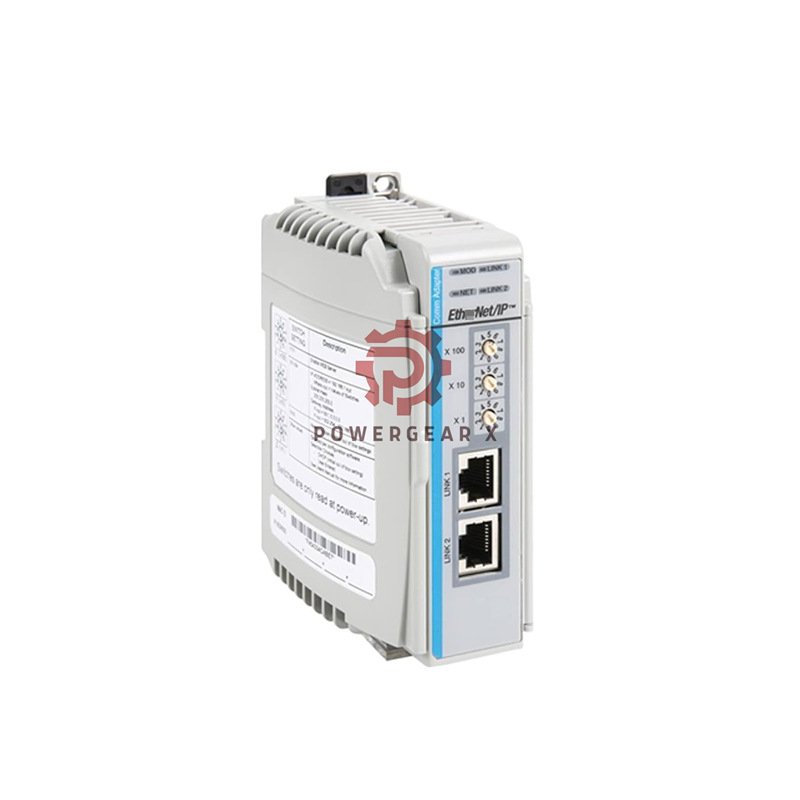

Introducing the Allen-Bradley 1769-AENTR EtherNet/IP Module
The Allen-Bradley 1769-AENTR from Rockwell Automation helps modern factories improve machine control. It connects machines to EtherNet/IP networks using two built-in Ethernet ports. This module supports linear, star, and device-level ring network layouts. It works with existing 1769 I/O systems, so upgrading is easy and cost-effective.
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1769-AENTR
- Product Type: CompactLogix EtherNet/IP Adapter
- Communication Ports: Dual 10/100 Mbps Ethernet
- Max Connections: 128 EtherNet/IP, 96 TCP/IP
- IP Address Setting: Rotary switches
- Operating Temperature: 0°C to 60°C
- Power Consumption: 500 mA @ 5V DC
- Isolation Voltage: 50V continuous
- Dimensions: 118 x 50 x 87 mm
- Weight: 0.280 kg
Installation & Wiring
- Mount the module on a DIN rail
- Use standard RJ45 connectors (IEC 60603-7)
- Recommended cable: Cat 5e or higher (TIA 568-B.1 compliant)
- Keep within 0°C–60°C ambient temperature range
Packaging List
- 1769-AENTR EtherNet/IP Module
- Installation Documentation
- Compatible with FedEx, UPS, DHL shipping
Frequently Asked Questions
- What network types does the 1769-AENTR support? It works with Device Level Ring, star, and linear topologies.
- Can I use my existing 1769 I/O with this module? Yes, it is designed for backward compatibility.
- What is the maximum data speed? It supports 10/100 Mbps Ethernet communication.
