Product details

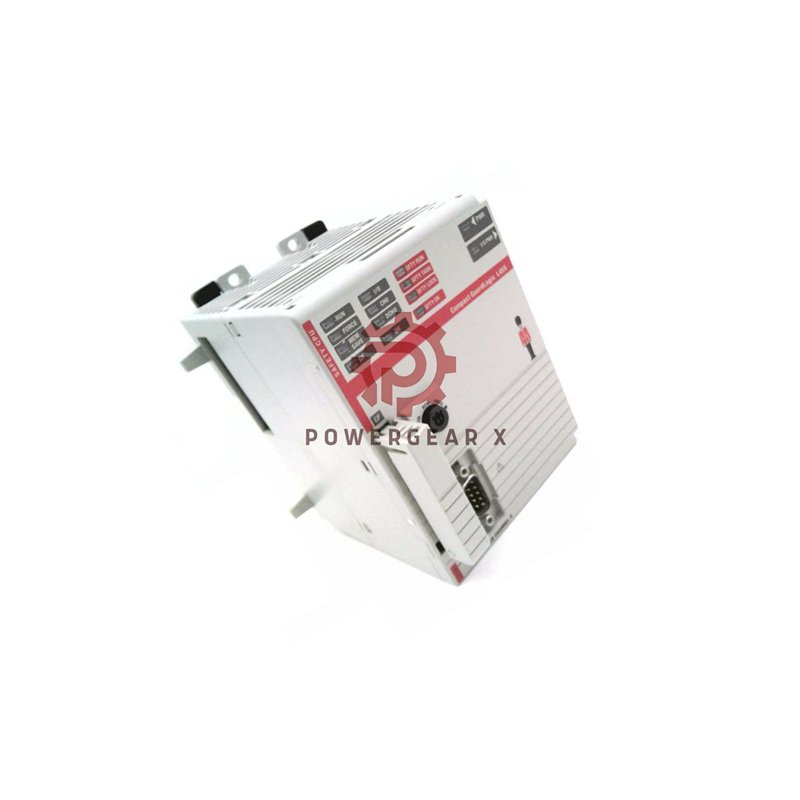

Allen-Bradley 1768-L45 CompactLogix Controller
The 1768-L45 delivers powerful control for medium-sized automation systems. It brings Logix platform features into a compact form factor.
Technical Specifications
- Brand/Manufacturer: Allen-Bradley/Rockwell Automation
- Model: 1768-L45
- Series: CompactLogix 1768
- Memory: 3MB integrated
- I/O Capacity: 30 modules (1769 series)
- Communication Ports: 1x RS-232 (isolated)
- Operating Temp: 0° to 60°C (32° to 140°F)
- Power Consumption: 48W max
- Vibration Resistance: 5G @ 10-500 Hz
- Shock Resistance: 30G operational
Package Contents
- Allen-Bradley 1768-L45 controller unit
- Installation and user documentation
Shipping Information
- Shipping carriers: FedEx, UPS, DHL
- Shipping weight: 2 lbs (0.9 kg)
- Package dimensions: 8x8x5 inches
FAQ
- How many I/O modules can the 1768-L45 support? It supports up to 30 modules of 1769 Compact I/O.
- What communication protocols are supported? The serial port supports DF1 and DH485 protocols.
- Can I add Ethernet capability to this controller? Yes, by adding a 1768-ENBT or 1768-EWEB module.
- What is the memory capacity of this controller? It features 3MB of integrated user memory.
- What cables work with the serial port? Use 1747-CP3 or 1756-CP3 programming cables.
