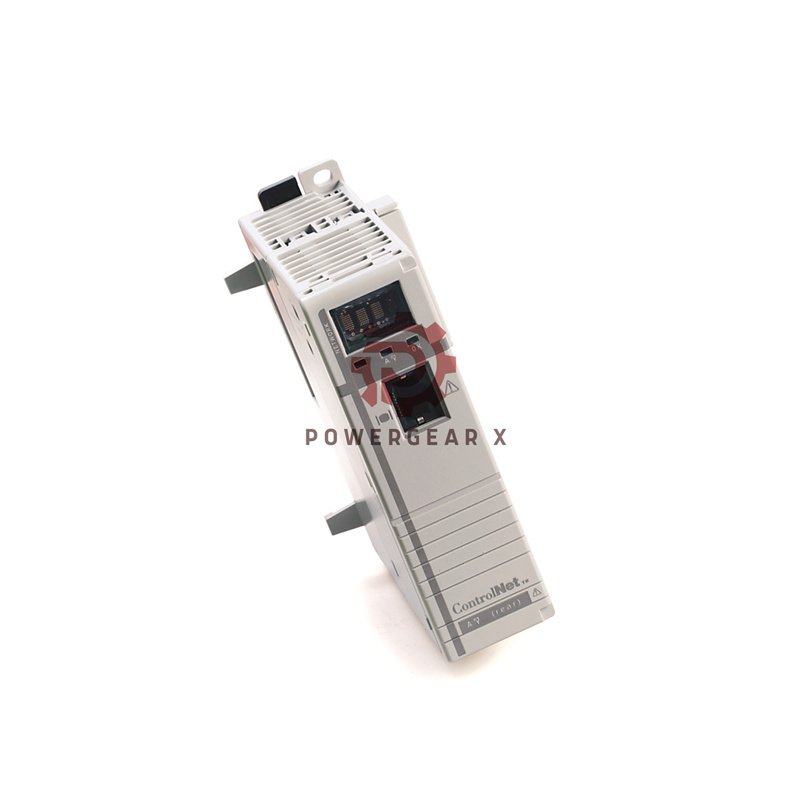

Allen-Bradley 1768-CNBR ControlNet Communication Module
The Allen-Bradley 1768-CNBR is a powerful ControlNet bridge module for the CompactLogix series. This module delivers deterministic data transfer for real-time control applications. It excels in systems requiring high reliability and redundancy.
Detailed Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Model: 1768-CNBR (Series A and B)
- Product Line: CompactLogix
- Module Type: ControlNet Bridge Module
- Communication Rate: 5 Megabits per second (Mbps)
- Max Nodes: 99
- Max Connections: 48 Logix connections
- Power Requirements: 5.2V DC @ 1.0A
- Heat Dissipation: 5.14 Watts (17.5 BTU/hour)
- Isolation Voltage: 30V (Tested at 500V AC for 60 seconds)
- Weight: 0.293 kg (0.64 lbs)
- Dimensions: 132 x 56.7 x 105.1 mm (5.20 x 2.23 x 4.12 in)
- Connectors: Two (2) ControlNet BNC ports, One (1) ControlNet RJ45 programming port
- Mounting: DIN Rail or Panel Mount (using M4 or #8 screws)
- Enclosure: Open Style (T4 Temperature Code)
- Shipping Weight: 2 lbs
- Shipping Dimensions: 8 x 8 x 5 inches
Frequently Asked Questions (FAQ)
- What is the primary use of the 1768-CNBR module?
This module is frequently used in redundancy control and high-speed media systems. - Which controllers support the 1768-CNBR?
It is compatible with specific controllers from the Allen-Bradley CompactLogix series.
