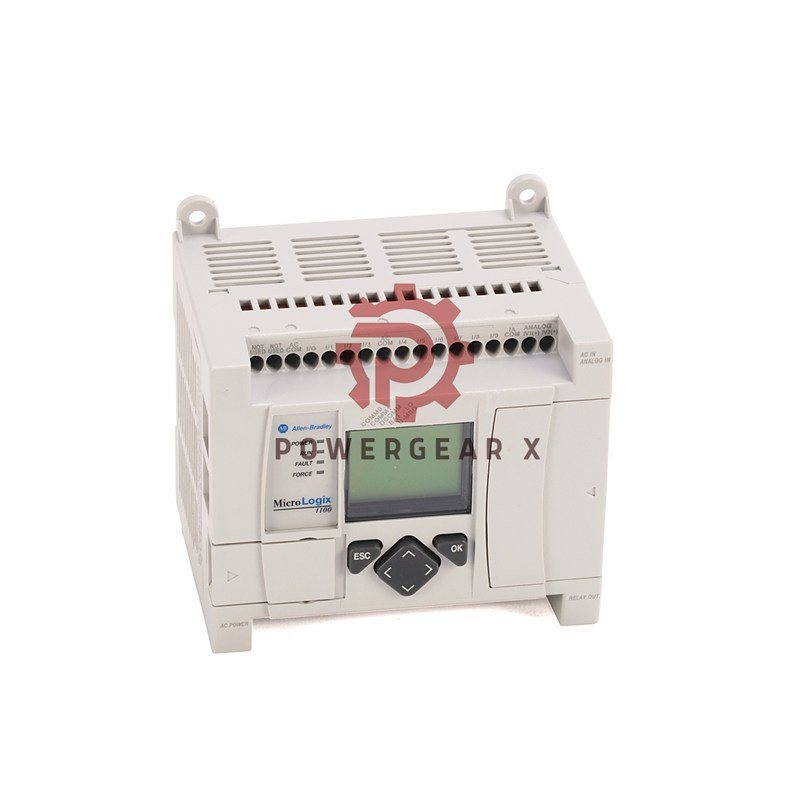

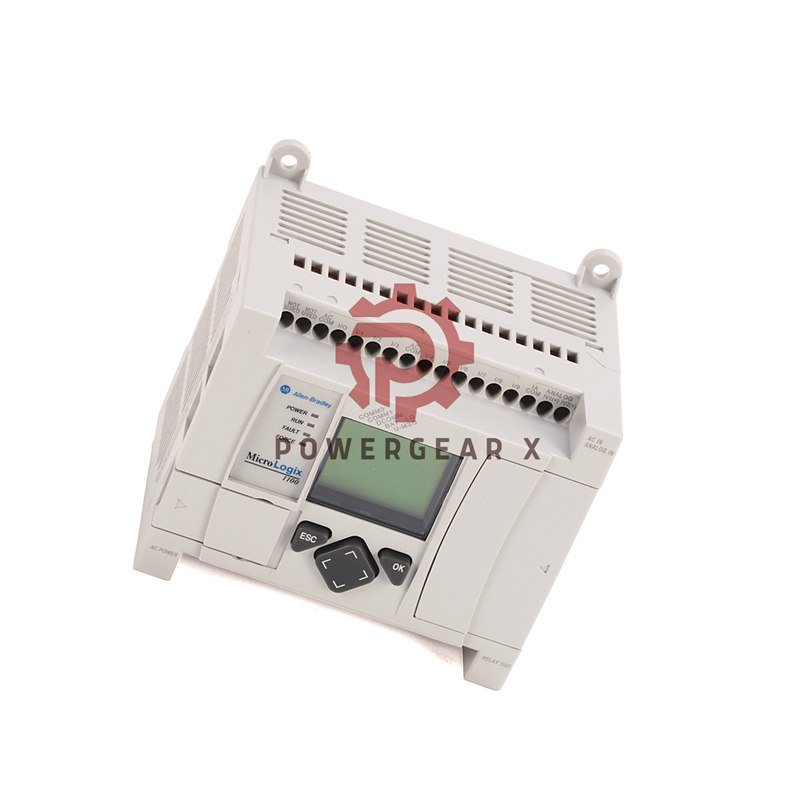

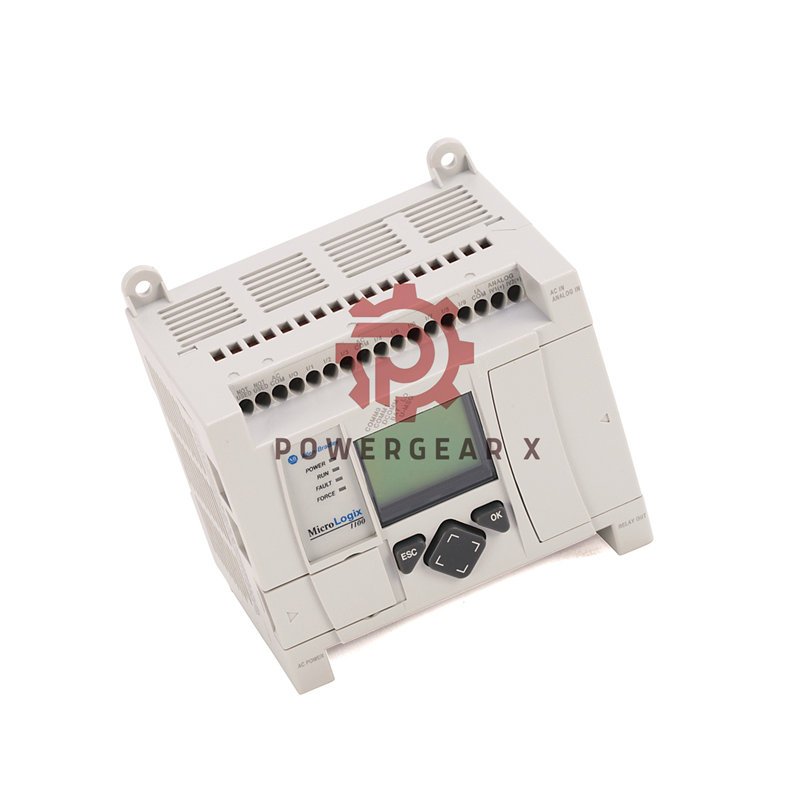

Allen-Bradley 1763-L16BWA MicroLogix 1100 PLC Controller

Allen-Bradley 1763-L16BWA MicroLogix 1100 Controller

The Allen-Bradley 1763-L16BWA delivers powerful control in a compact design. This MicroLogix 1100 controller handles various automation tasks with ease.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1763-L16BWA
• Input Power: 120-240V AC, 47-63 Hz
• Digital Inputs: 10 x 24V DC (4 high-speed)
• Analog Inputs: 2 x 0-10V DC
• Digital Outputs: 6 Relay
• Analog Resolution: 10-bit
• Communication Ports: Ethernet, RS-232/485
• Memory: Battery-backed RAM
• Operating Temp: -20°C to 65°C (-4°F to 149°F)
• Humidity: 5-95% non-condensing
• Shock Rating: 30G operational
• Vibration: 15G @ 50 Hz
• Dimensions: 3.5 x 4.33 x 3.43 inches
• Weight: 2 pounds

Input/Output Details

• Digital Inputs: 24V DC sink/source compatible
• Analog Inputs: 0-10V DC with 10-bit resolution
• Relay Outputs: 6 isolated contacts, 2A each
• Contact Rating: 120-240V AC, 125V DC
• Mechanical Life: 10,000,000 cycles
• Response Time: 10 ms ON/OFF

Package Contents

• 1763-L16BWA Controller Unit
• Installation Documentation
• Quick Start Guide
• Shipping Options: FedEx, UPS, or DHL

Frequently Asked Questions

• How many expansion modules can I add?
  You can connect up to 4 expansion modules to this controller.
• What communication protocols are supported?
  It supports Ethernet/IP and serial communication protocols.
• Can I use this controller in hot environments?
  Yes, it operates in temperatures up to 65°C (149°F).
• What is the analog input resolution?
  It provides 10-bit resolution for precise analog measurements.
• Does it include battery backup?
  Yes, it features battery-backed RAM for memory retention.

This product includes a 12-month warranty. We ship worldwide via FedEx, UPS, or DHL.
