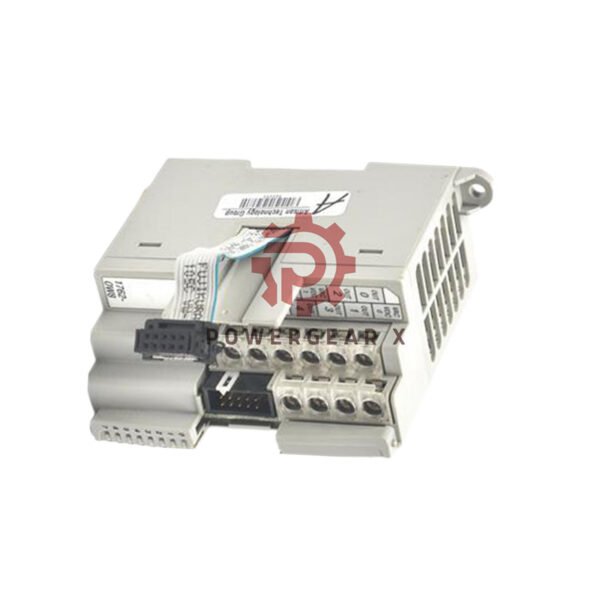

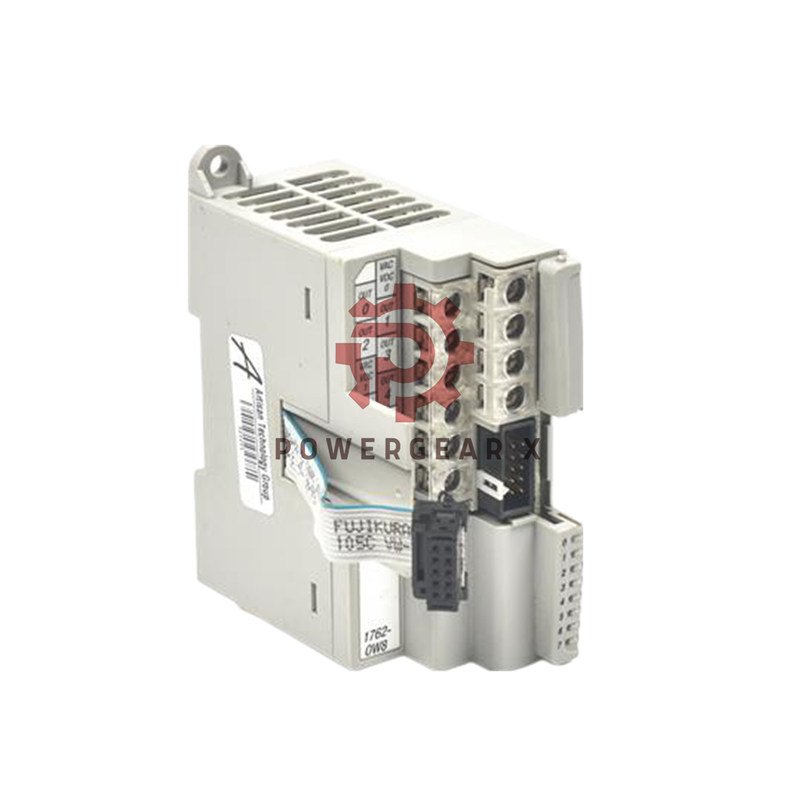

Allen-Bradley 1762-OW8 Relay Output Module

The Allen-Bradley 1762-OW8 adds eight relay outputs to your MicroLogix control system. This Rockwell Automation module works with 1100, 1200 and 1400 series controllers. It handles both AC and DC loads with reliable performance.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation
• Model: 1762-OW8 (Full Catalog Number: 1762-OW8)
• Output Type: Relay (NO contacts)
• Number of Outputs: 8 channels
• Output Groups: 2 isolated groups (4 channels each)
• Voltage Range: 5-265V AC / 5-125V DC
• Current Rating: 2.5A per point
• Group Current: 8A per common
• Module Current: 16A total
• Response Time: 10ms ON/OFF
• Isolation: 1500V AC between groups
• Power Consumption: 80mA @ 5V DC, 90mA @ 24V DC
• Heat Dissipation: 2.9 Watts
• Weight: 228g (0.5 lbs)
• Wire Size: 22-14 AWG

FAQ

• What controllers work with this module?
  It works with MicroLogix 1100, 1200, and 1400 series controllers.
• Can I mix AC and DC loads on one module?
  Yes, but keep AC and DC loads in separate groups.
• What is the maximum wire size?
  You can use wires from 22 to 14 AWG size.
• How many modules can I connect?
  You can connect up to 6 modules from the power supply.
• What safety standards does it meet?
  It meets UL, cUL, and CE safety standards for industrial use.

The Allen-Bradley 1762-OW8 provides flexible output expansion for your automation needs. Rockwell Automation designed this module for easy installation and reliable operation.
