Allen-Bradley 1762-OF4 MicroLogix Analog Output Module – 4 Channel

Allen-Bradley 1762-OF4: Precision Analog Output Module

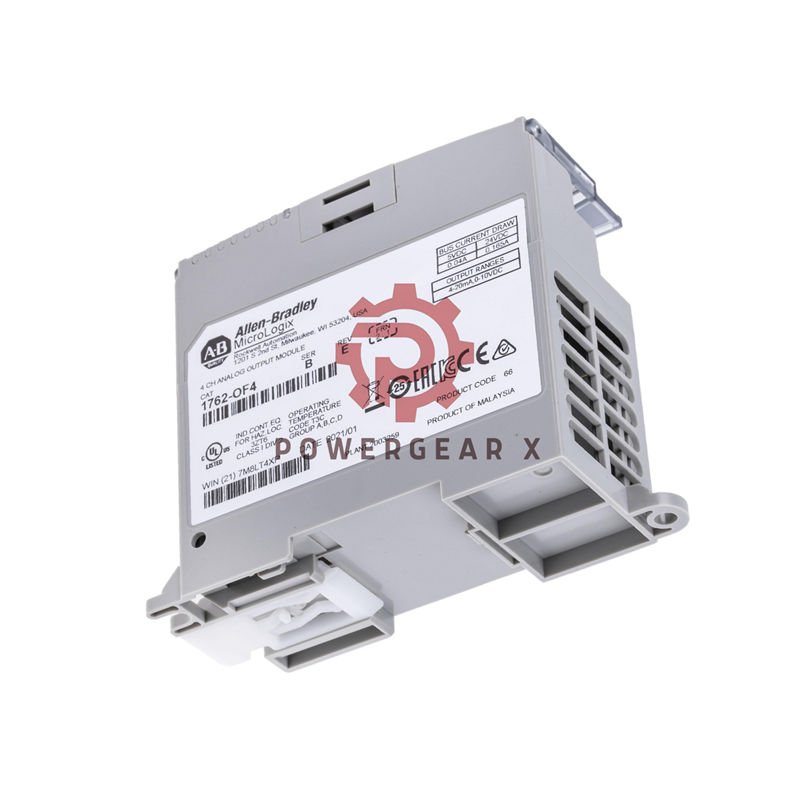

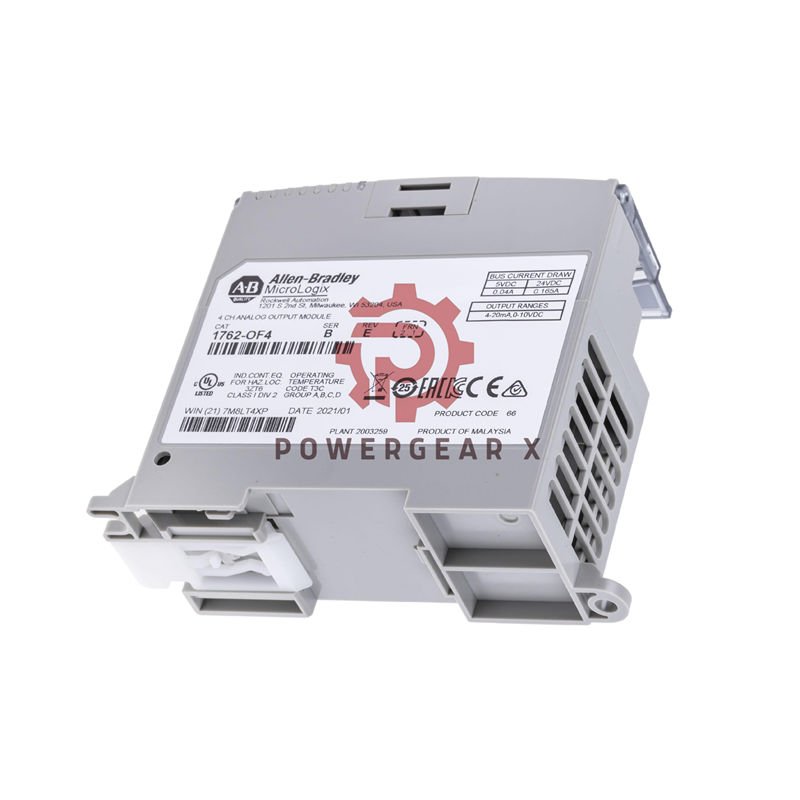

The 1762-OF4 expansion module brings precise analog control to your MicroLogix system. This compact unit delivers four configurable output channels. It connects seamlessly with MicroLogix 1100, 1200, and 1400 controllers.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1762-OF4 (MicroLogix Series)
• Output Channels: 4 single-ended
• Output Types: Voltage and Current
• Voltage Range: 0-10VDC
• Current Range: 4-20mA
• Resolution: 12-bit unipolar
• Accuracy: ±0.5% at 25°C (77°F)
• Repeatability: ±0.12%
• Response Time: 2.5 ms per channel
• Power Supply: 24VDC
• Heat Dissipation: 2.8 Watts
• Load Resistance: 0-500Ω (current), >1kΩ (voltage)
• Operating Temperature: -20°C to 65°C (-4°F to 149°F)
• Dimensions: 90 x 87 x 40 mm
• Weight: 235 grams

What’s Included

• One 1762-OF4 Analog Output Module
• Installation Documentation
• DIN Rail Mounting Kit
• 1-Year Manufacturer Warranty
• Worldwide Shipping: FedEx, UPS, DHL

Frequently Asked Questions

• How many modules can I connect to a MicroLogix 1100?
  You can connect up to four 1762-OF4 modules to a MicroLogix 1100 controller.
• What cable type should I use for analog signals?
  We recommend using Belden 8761 shielded cable for best performance.
• Can I mix voltage and current outputs on one module?
  Yes, each channel can be individually configured for voltage or current output.
• What is the maximum output current protection?
  The module provides ±32mA output protection for each channel.
• Is this module suitable for PID control applications?
  Yes, it works perfectly with PID control loops for process automation.
