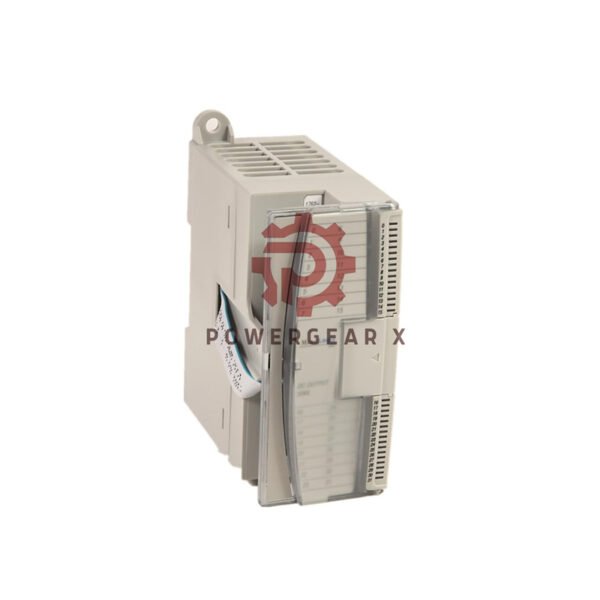

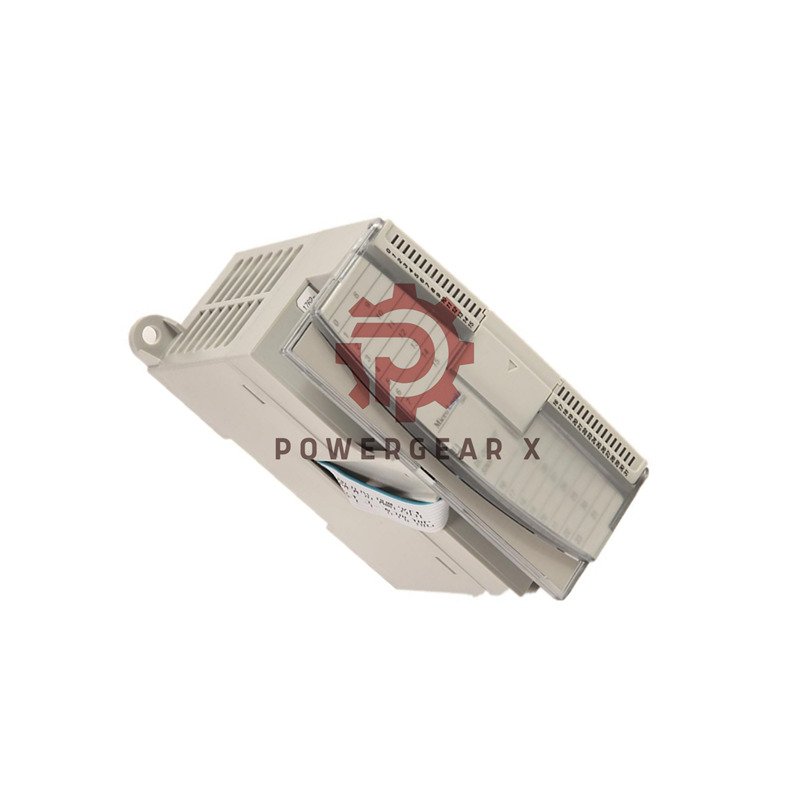

Allen-Bradley 1762-OB8: 8-Point DC Output Module
The 1762-OB8 is a digital output module from Allen-Bradley. It works with MicroLogix 1200 controllers. This module gives you eight solid-state 24V DC sourcing outputs. It is very reliable for industrial automation.
Key Product Specifications
- Operating Voltage: 20.4 to 26.4V DC
- Number of Outputs: 8
- Max Current per Point: 0.5A
- Total Module Current: 4A
- ON-State Delay: 0.1 ms (max)
- OFF-State Delay: 1.0 ms (max)
- Backplane Current: 115 mA at 5V DC
- Isolation: 1200V AC (tested)
Main Features & Selling Points
- Easy DIN rail mounting for quick installation.
- Robust design handles shock up to 30G.
- Wide operating temperature from 0 to 55°C.
- Low power dissipation of only 1.6 Watts.
- Ideal for controlling valves, relays, and small motors.
What’s in the Box?
- One Allen-Bradley 1762-OB8 module.
- Necessary documentation for setup.
Shipping & Support
- We ship fast via FedEx, UPS, and DHL.
- This product includes a 12-month warranty.
- Our technical team offers professional support.
Frequently Asked Questions
- What load can each output point handle?
- Each output can handle a steady load of 0.5A. It can manage a short 2A surge for 10ms.
- How do I connect the power to this module?
- You must connect a 24V DC power source. Ensure it is within the 20.4-26.4V DC range for safe operation.
- Can I use this module in a high-vibration environment?
- Yes. It resists vibration up to 5G at 500 Hz. This makes it suitable for tough factory floors.
- What is the signal delay for this output module?
- The turn-on delay is very fast at 0.1 ms maximum. The turn-off delay is 1.0 ms maximum.
- How many modules can I connect to one controller?
- The system supports a maximum of 6 module lengths. This depends on your specific MicroLogix controller.
