Allen-Bradley 1762-L40AWAR MicroLogix 1200 PLC – 120V AC

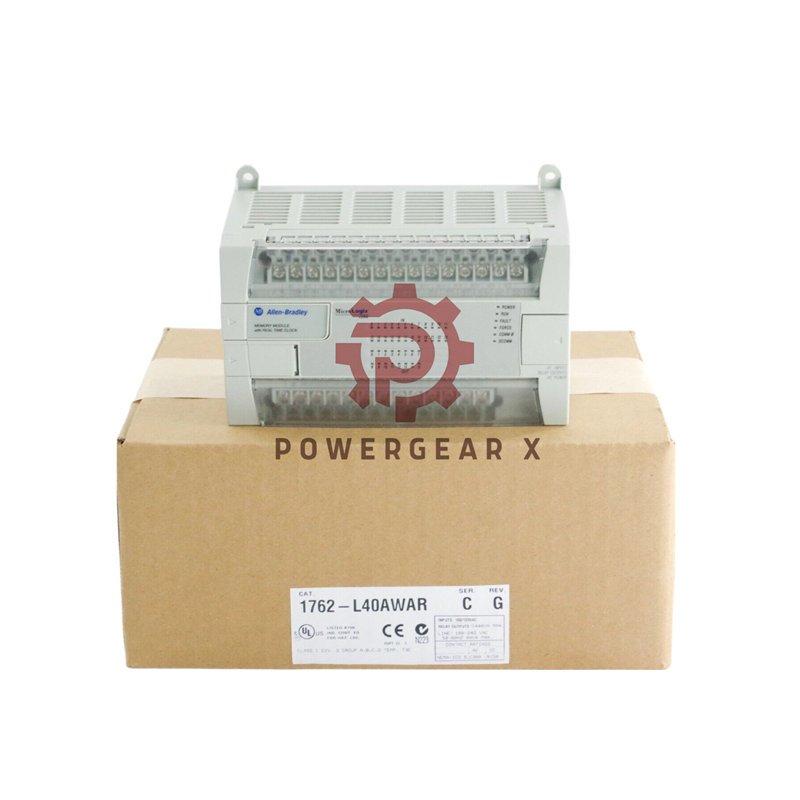

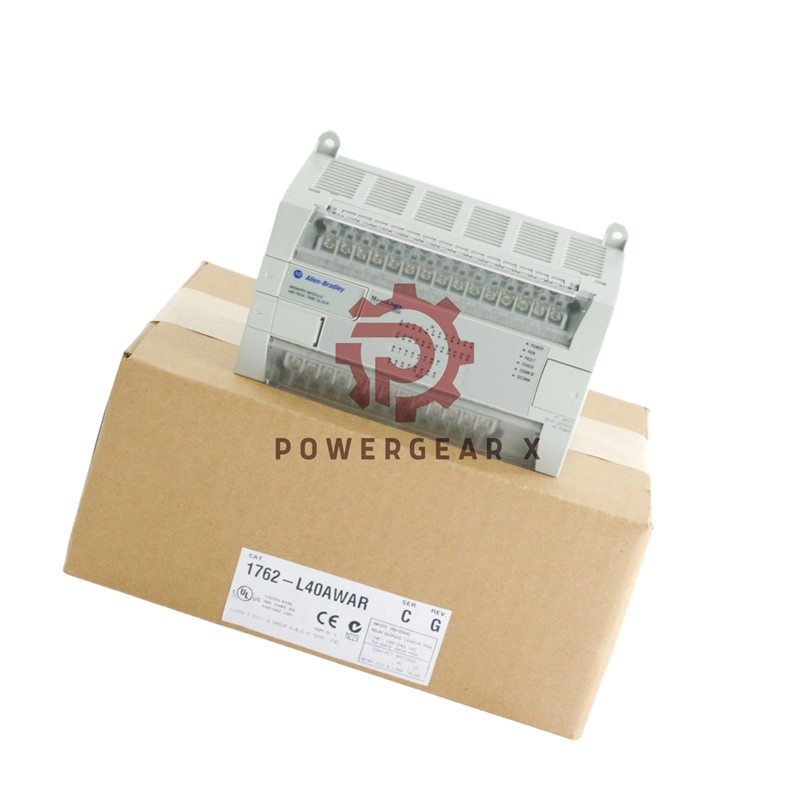

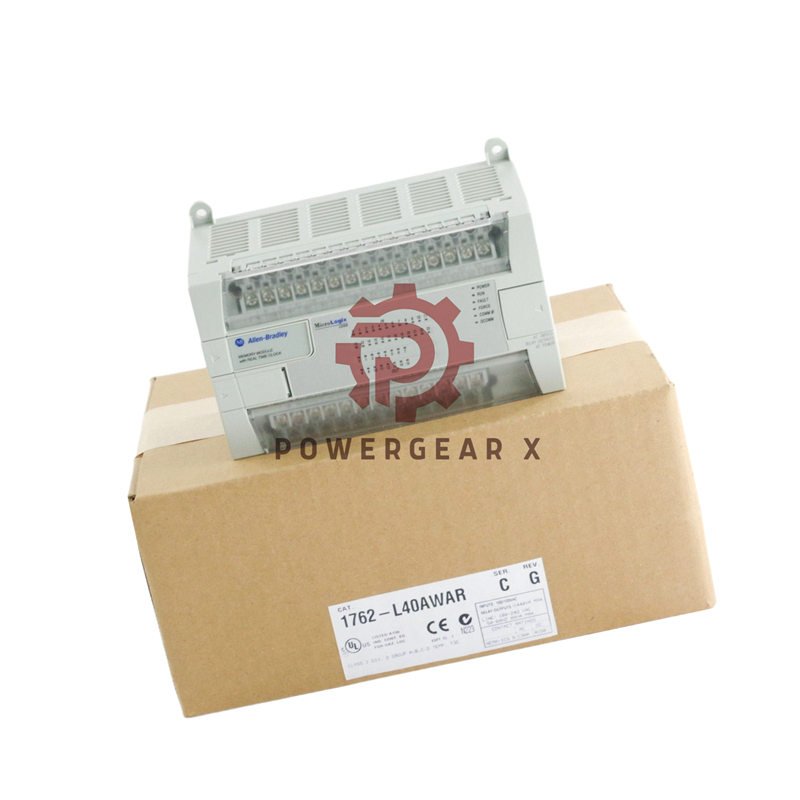

Meet the Allen-Bradley 1762-L40AWAR MicroLogix 1200 PLC

The 1762-L40AWAR from Allen-Bradley brings power and flexibility to your control panel. This compact unit handles both AC inputs and relay outputs with ease. It fits perfectly in small spaces while delivering big performance.

Key Technical Specifications

• Brand: Allen-Bradley
• Model: 1762-L40AWAR (MicroLogix 1200 Series)
• Input Power: 120-240V AC
• Input Channels: 24 (120V AC)
• Output Type: 16 Relay Outputs
• Contact Rating: 24-125VDC; 120-240VAC
• Mechanical Life: 20,000,000 cycles
• Load Current: 10A minimum per output
• Max Controlled Load: 1440 VA
• Operating Temperature: 0 to 55°C (32 to 131°F)
• Communication Ports: 8-pin mini-DIN (RS232)
• Supported Protocols: DF1, DH-485, ASCII, MODBUS
• Dimensions: 90H x 160W x 87D mm
• Weight: 2.4 pounds

Package Includes

• One 1762-L40AWAR Controller Unit
• Installation Documentation
• DIN Rail Mounting Hardware
• Warranty: 12 Months
• Shipping: FedEx, UPS, DHL Available

Frequently Asked Questions

• What protocols does the 1762-L40AWAR support?
  It supports DF1, DH-485, ASCII, and MODBUS Master/Slave protocols.
• Can I connect MODBUS devices directly?
  Yes, the unit connects directly to MODBUS devices without converters.
• What type of inputs does this PLC have?
  It features 24 standard 120V AC inputs.
• How many communication ports are available?
  There are two ports: one programming port and one communication port.
• What is the maximum load per output?
  Each relay output can handle up to 10A at 240V AC or 125V DC.
