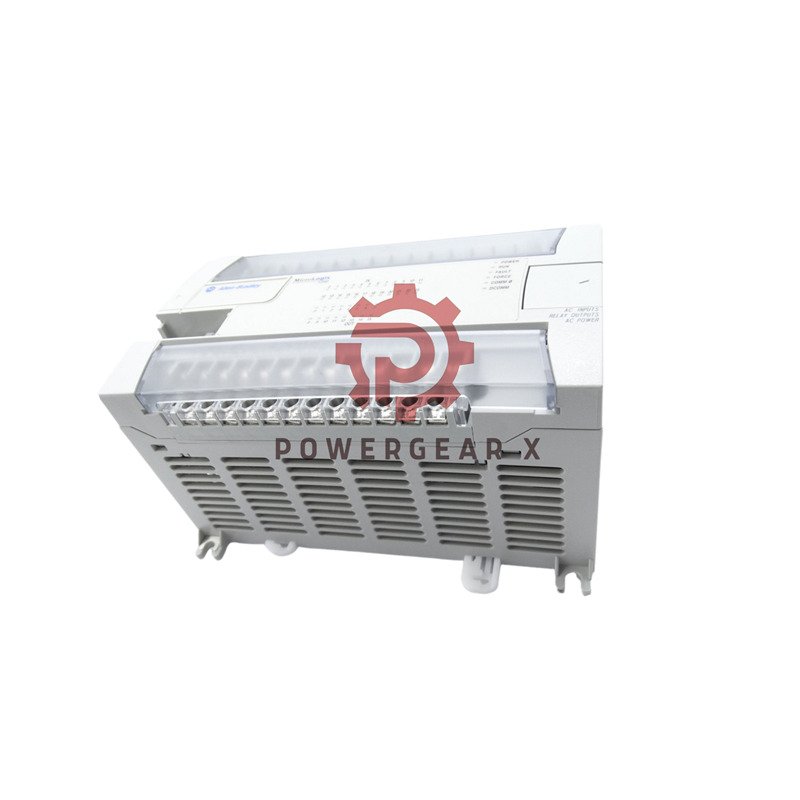

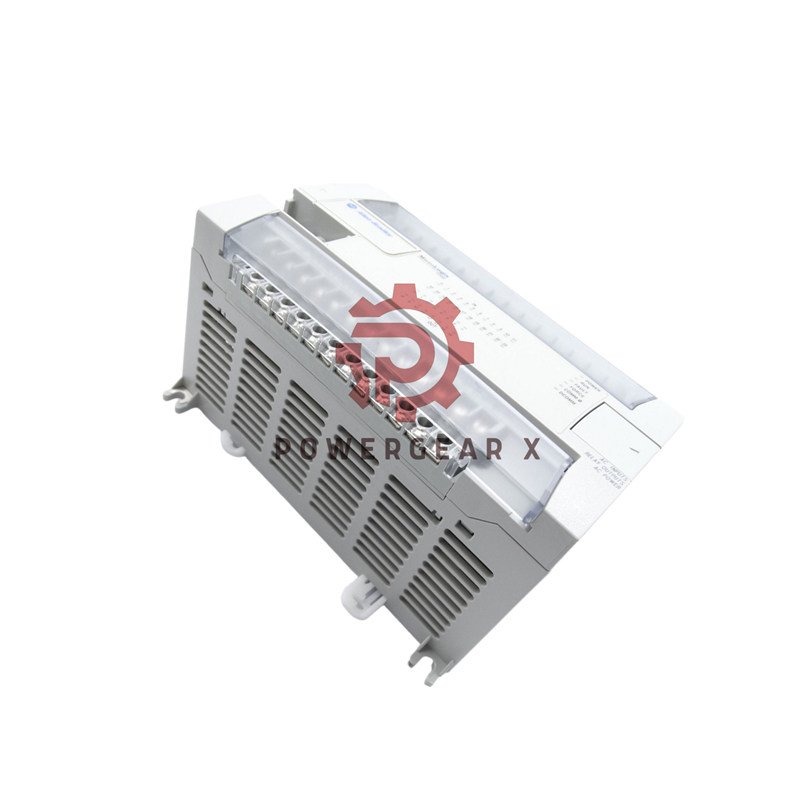

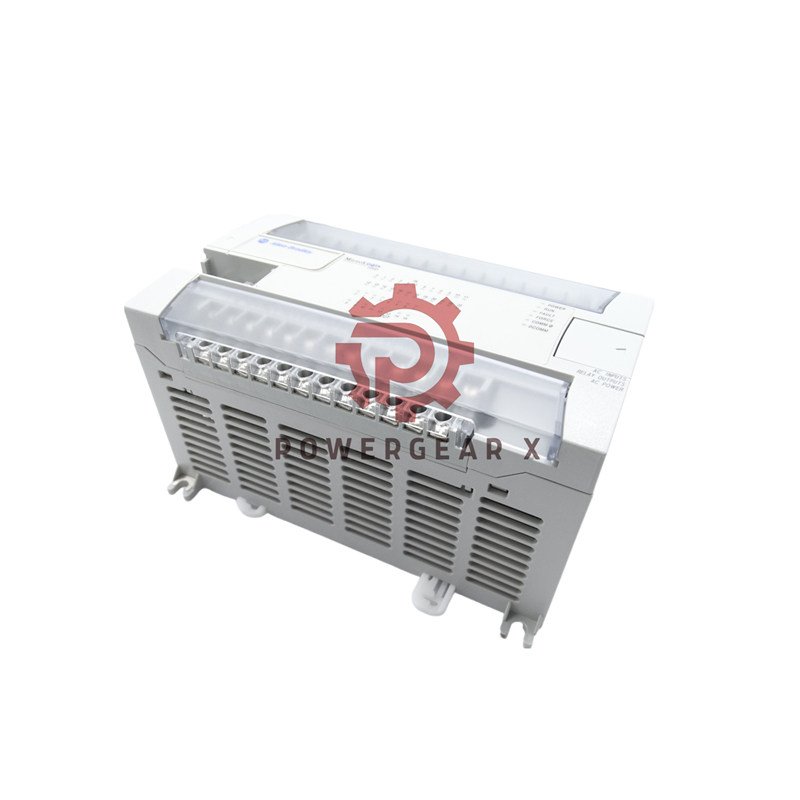

Allen-Bradley 1762-L40AWA MicroLogix 1200 PLC Controller

Allen-Bradley 1762-L40AWA MicroLogix 1200 Controller

The Allen-Bradley 1762-L40AWA delivers powerful automation control with 24 inputs and 16 relay outputs. This MicroLogix 1200 series PLC from Rockwell Automation supports multiple protocols for flexible integration in various industrial applications.

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 1762-L40AWA (MicroLogix 1200 Series)
• Input Voltage: 120-240V AC ±10%
• Input Points: 24 (120V AC)
• Output Points: 16 relay outputs
• Relay Rating: 10A @ 120V AC/24V DC
• Communication Port: 8-pin mini-DIN
• Protocol Support: DF1, DH-485, ASCII, MODBUS
• Operating Temperature: 0 to 55°C (32 to 131°F)
• Power Consumption: 82 VA max
• Dimensions: 90mm H x 160mm W x 87mm D
• Shipping Weight: 2.4 pounds (1.1 kg)

Packaging & Shipping

• Includes one 1762-L40AWA controller unit
• Shipped via FedEx, UPS, or DHL for reliable delivery
• Protected packaging ensures safe transportation

Frequently Asked Questions

• What protocols does the 1762-L40AWA support?
  The controller supports DF1, DH-485, ASCII, and MODBUS protocols.
• Can I use this controller in high-temperature environments?
  Yes, it operates reliably in temperatures up to 55°C (131°F).
• What is the maximum load per relay output?
  Each relay can handle up to 10A at 120V AC or 24V DC.
• Does this controller support MODBUS communication?
  Yes, it functions as both MODBUS Master and Slave.
• What is the purpose of the front potentiometers?
  They allow easy simulation of internal registers or process variable control.
