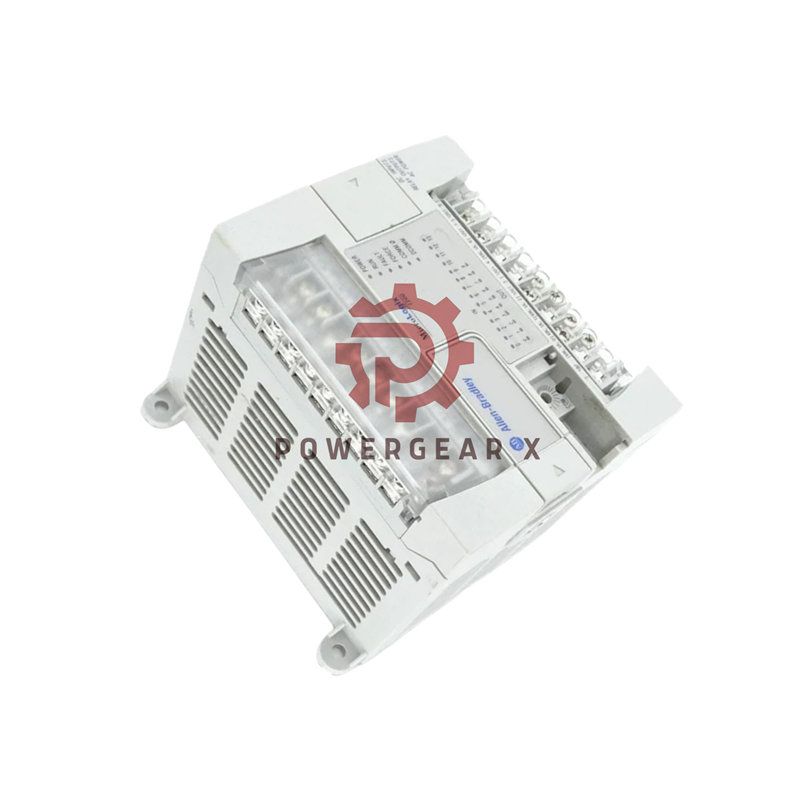

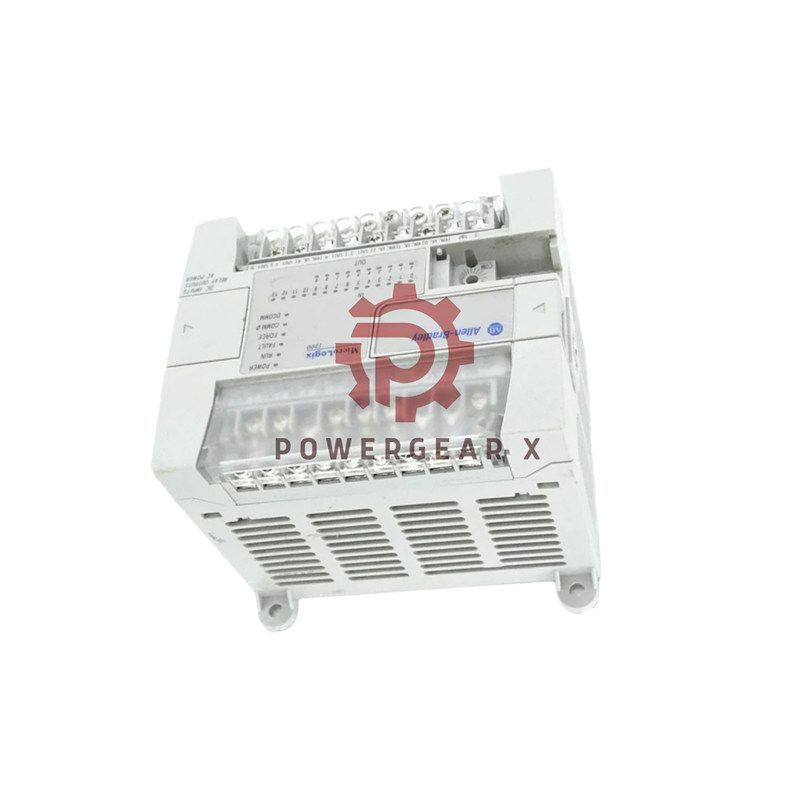

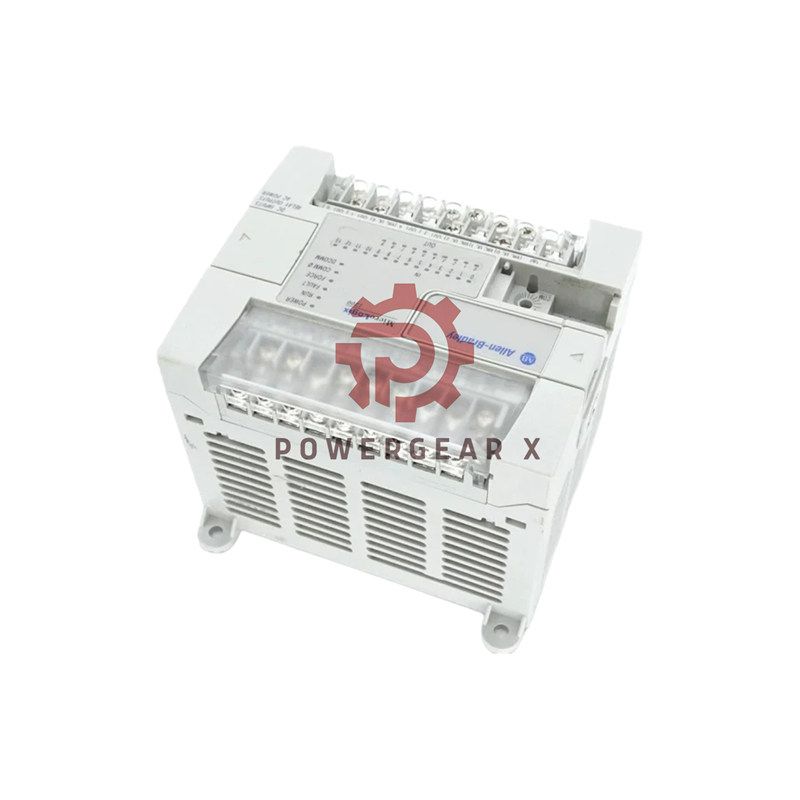

Allen-Bradley 1762-L24BWAR MicroLogix 1200 Controller

Allen-Bradley 1762-L24BWAR MicroLogix 1200 Controller

The Allen-Bradley 1762-L24BWAR delivers robust automation control in a compact design. This MicroLogix 1200 controller integrates embedded I/O for straightforward installation and reliable performance.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1762-L24BWAR (Complete Suffix Information)
• Input Power: 120–240V AC
• Digital Inputs: 10 Standard 24V DC + 4 High-Speed 24V DC
• Outputs: 10 Relay Contacts
• Communication: 1 RS-232 (DH Full-Duplex Protocol)
• Unit Dimensions: 3.5 x 4.33 x 3.43 inches

Detailed Input Ratings

• Inputs 0 to 3 (Standard):
  • Min. Current: 2.5 mA @ 14V DC
  • Nominal Current: 7.3 mA @ 24V DC
  • Max. Current: 12 mA @ 30V DC
  • Frequency Response: 0 – 20 Hz
• Inputs 4+ (High-Speed):
  • Min. Current: 2 mA @ 10V DC
  • Nominal Current: 8.9 mA @ 24V DC
  • Max. Current: 12 mA @ 30V DC
  • Frequency Response: 0 – 1 kHz (Scan time dependent)
• Off-State Condition:
  • Voltage: 0 – 5V DC
  • Max. Leakage Current: 1.5 mA

• Allen-Bradley 1762-L24BWAR Controller Unit
• Quick Installation Guide
• Shipping Options: FedEx, UPS, or DHL

Frequently Asked Questions

• What are the output types on the 1762-L24BWAR?
  It provides 10 relay outputs for controlling various AC/DC loads.
• Can the communication port be used for networking?
  The RS-232 port supports DH Full-Duplex but cannot initiate messages.
• What is the operating voltage range?
  The controller accepts a wide range of 120–240V AC input power.
• How many inputs does it have?
  It has 14 inputs total: 10 standard and 4 high-speed 24V DC inputs.
