Product details

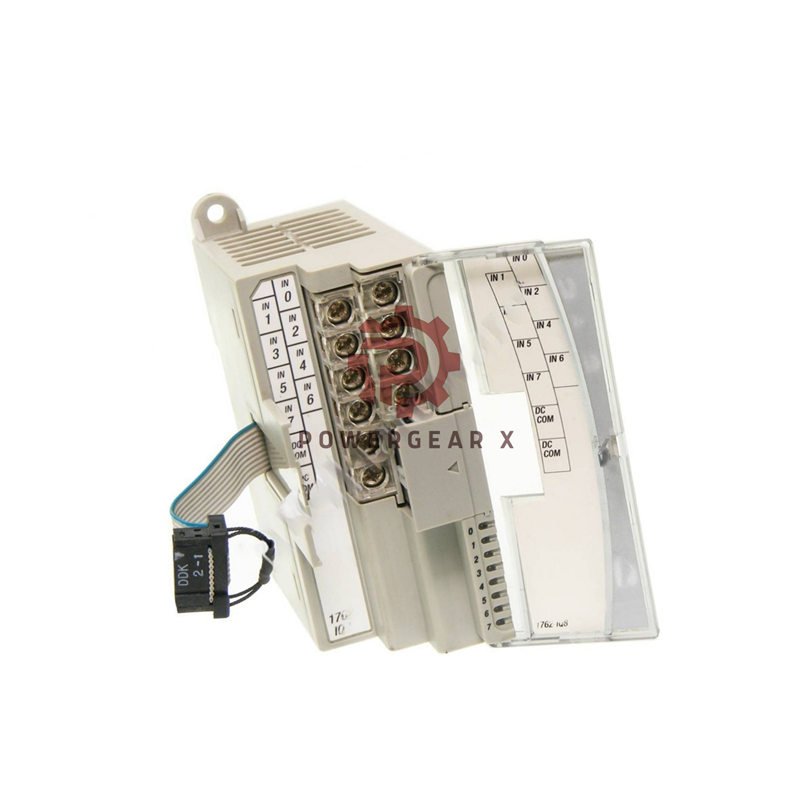

Allen-Bradley 1762-IQ8 MicroLogix DC Input Module
The Allen-Bradley 1762-IQ8 expands your MicroLogix system with eight flexible DC inputs. This versatile module supports both sink and source wiring configurations. It works with various MicroLogix controllers for industrial automation. The 1762-IQ8 offers reliable performance in compact spaces. Rockwell Automation designed this module for easy installation and maintenance.
Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Model Number: 1762-IQ8
- Product Line: MicroLogix
- Input Type: 24V DC Digital
- Number of Inputs: 8 points
- Voltage Range: 10-30V DC
- Nominal Voltage: 24V DC
- Input Current: 2-12 mA
- Response Time: 8ms maximum
- Backplane Current: 50mA @ 5V DC
- Isolation Rating: 1200V AC for 1 second
- Heat Dissipation: 3.7 Watts
- Operating Temperature: 0°C to 55°C
- Wiring Configuration: Sink/Source
Compatible Controllers
- MicroLogix 1100 series controllers
- MicroLogix 1200 series controllers
- MicroLogix 1400 series controllers
- MicroLogix 1500 series controllers
Package Contents
- 1 x Allen-Bradley 1762-IQ8 input module
- Installation documentation
- Shipping via FedEx, UPS, or DHL
Frequently Asked Questions
- Which controllers support this module?
It works with MicroLogix 1100, 1200, 1400, and 1500 controllers. - What is the difference between sink and source wiring?
Sink wiring connects to negative power, source to positive power. - What is the maximum operating temperature?
It operates from 0°C to 55°C (32°F to 131°F). - How fast is the input response time?
It has an 8ms response time for both ON and OFF transitions. - What safety features does this module have?
It includes 1200V AC isolation and finger-safe terminals.
