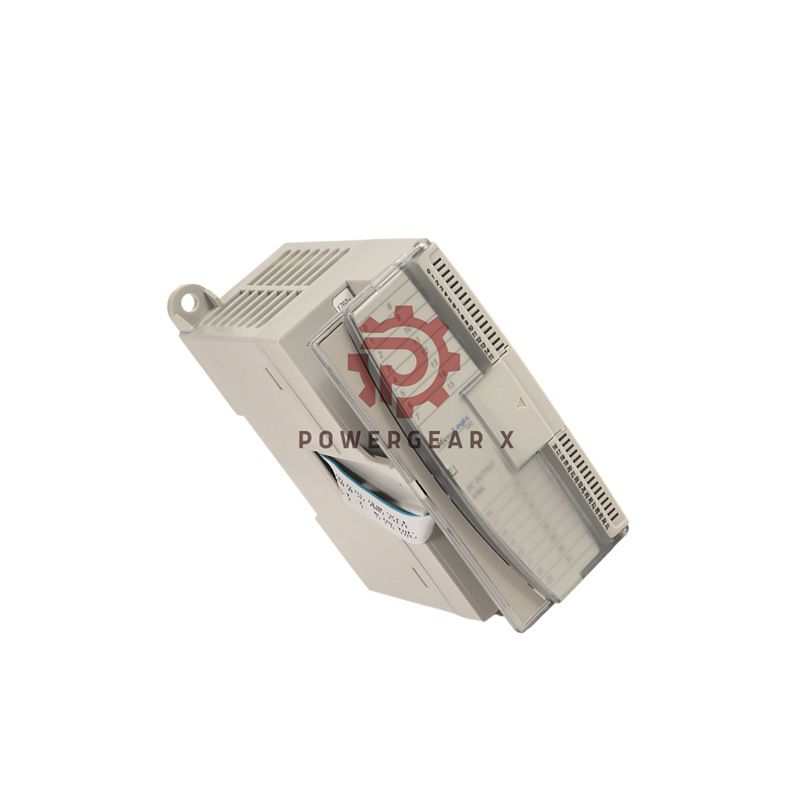

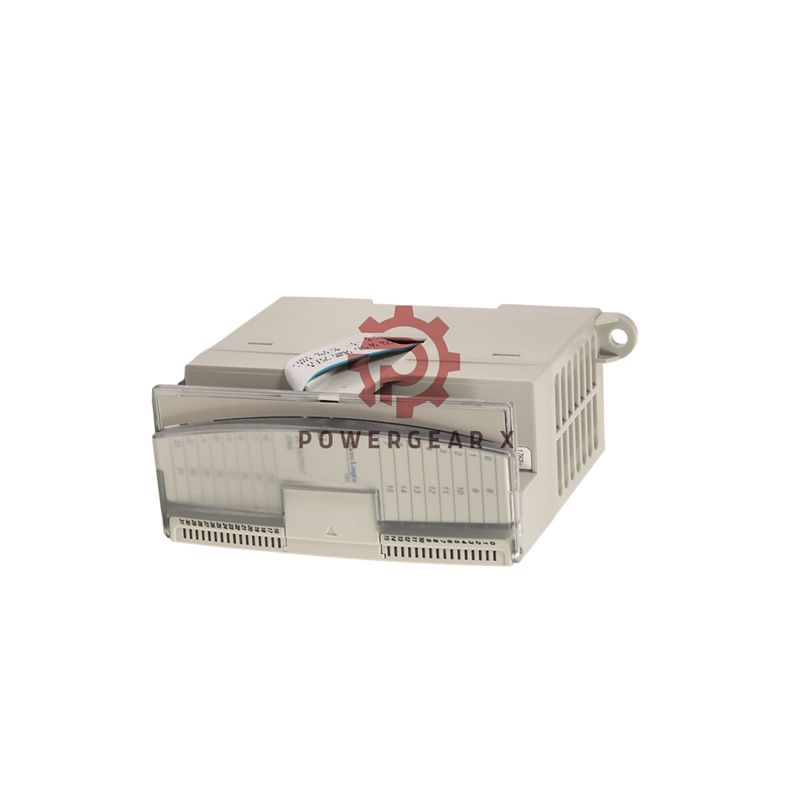

Allen-Bradley 1762-IQ32T High-Density Input Module

The 1762-IQ32T delivers thirty-two DC input channels in a compact MicroLogix design. This Rockwell Automation module provides excellent density and flexibility. It works perfectly with MicroLogix 1100, 1200 and 1500 controllers.

Technical Specifications

• Brand: Allen-Bradley
• Model: 1762-IQ32T
• Input Channels: 32 (4 groups of 8)
• Input Voltage: 10-30V DC
• Nominal Voltage: 24V DC
• On-State Current: 2 mA @ 15V DC
• Signal Delay: 8 ms
• Isolation: 1,200V AC for 2 seconds
• Backplane Current: 170 mA @ 5.1V DC
• Power Consumption: 5.4-6.8 Watts
• Operating Temperature: 0°C to 60°C
• Dimensions: 90 x 40.4 x 87 mm
• Weight: 200 grams

Frequently Asked Questions

• How many input channels does this module provide?
  It offers thirty-two separate input channels in four isolated groups.
• What controllers are compatible with this module?
  It works with MicroLogix 1100, 1200, and 1500 series controllers.
• What wiring configurations does it support?
  It supports both sink and source wiring configurations.
• What is the input voltage range?
  It accepts 10-30V DC input signals.
• How are the input channels grouped?
  Channels are grouped as 0-7, 8-15, 16-23, and 24-31 with isolation between groups.
